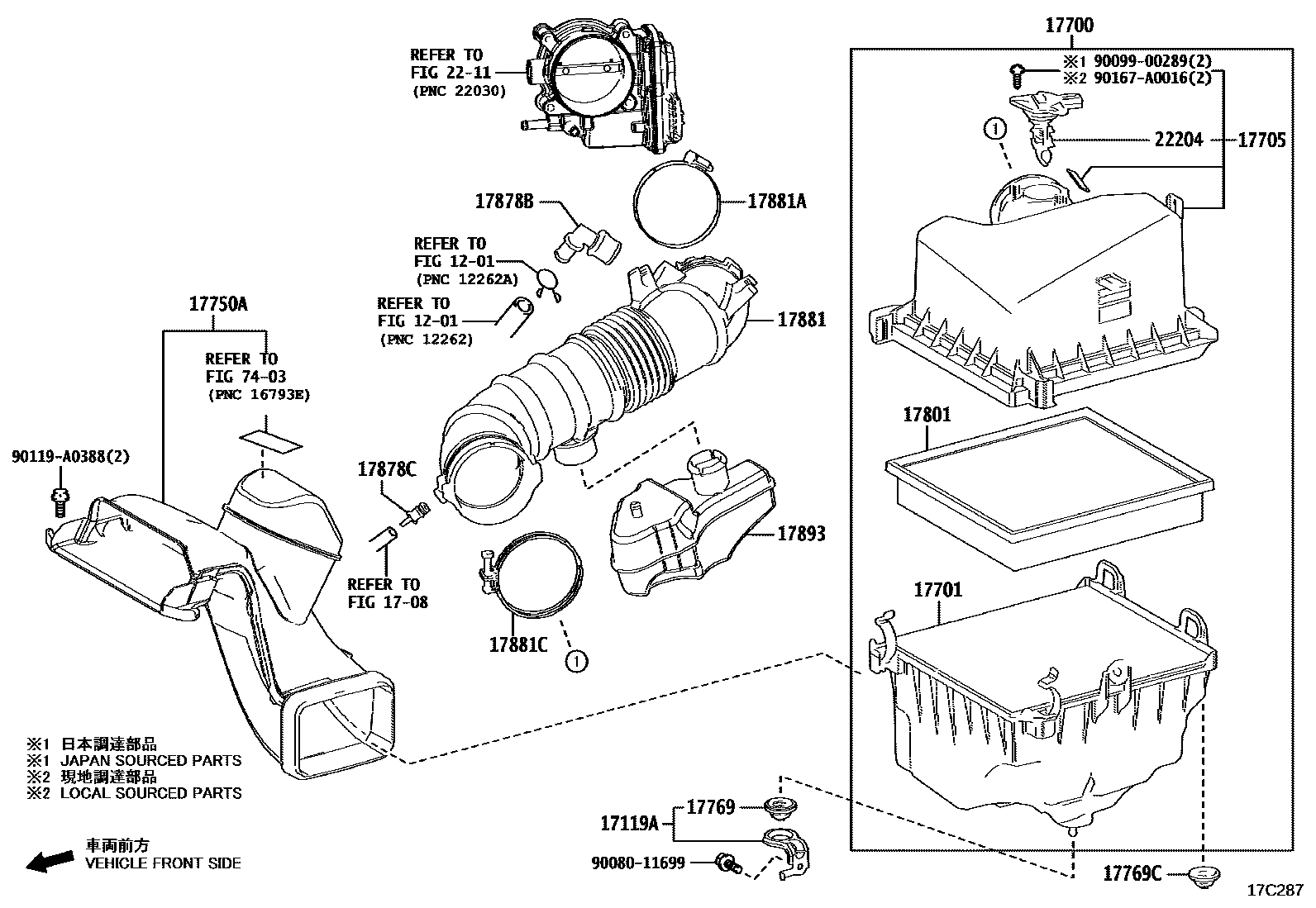

AIR CLEANER

0001 1 0002 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-F0010i2GRFKS..GSX50202008

17700CLEANER ASSY, AIR

main17700-F0130i2GRFKS..GSX50201806-202008

main17700-F0131i2GRFKS..GSX50202104

17701CASE SUB-ASSY, AIR CLEANER

main17701-F0010i2GRFKS..GSX50201806-202008

main17701-F0160i2GRFKS..GSX50202104

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0130i2GRFKS..GSX50202008

17750AINLET ASSY, AIR CLEANER

main17750-0P080i2GRFKS..GSX50201806-202008

17769SUPPORT, AIR CLEANER

main17769-25020i2GRFKS..GSX50201806-202008

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020×2i2GRFKS..GSX50201806-202008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020i2GRFKS..GSX50201806-202008

(J)

main17801-F0050i2GRFKS..GSX50201806-202008

(L)

17878BTUBE, VENTILATION

main17878-0P040i2GRFKS..GSX50201806-202008

17878CTUBE, VENTILATION, NO.2

main17878-0P060i2GRFKS..GSX50201806-202008

17881HOSE, AIR CLEANER, NO.1

main17881-0P230i2GRFKS..GSX50201806-202008

sub17881-0P231

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-90005i2GRFKS..GSX50201806-202008

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2GRFKS..GSX50201806-202008

17893RESONATOR, INTAKE AIR

main17893-0P180i2GRFKS..GSX50201806-202008

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2GRFKS..GSX50201806-202008

7403

9008011699

main90080-11699

9009900289

main90099-00289

90119A0388

main90119-A0388

90167A0016

main90167-A0016

23 parts on this diagram · 2 diagrams in section
