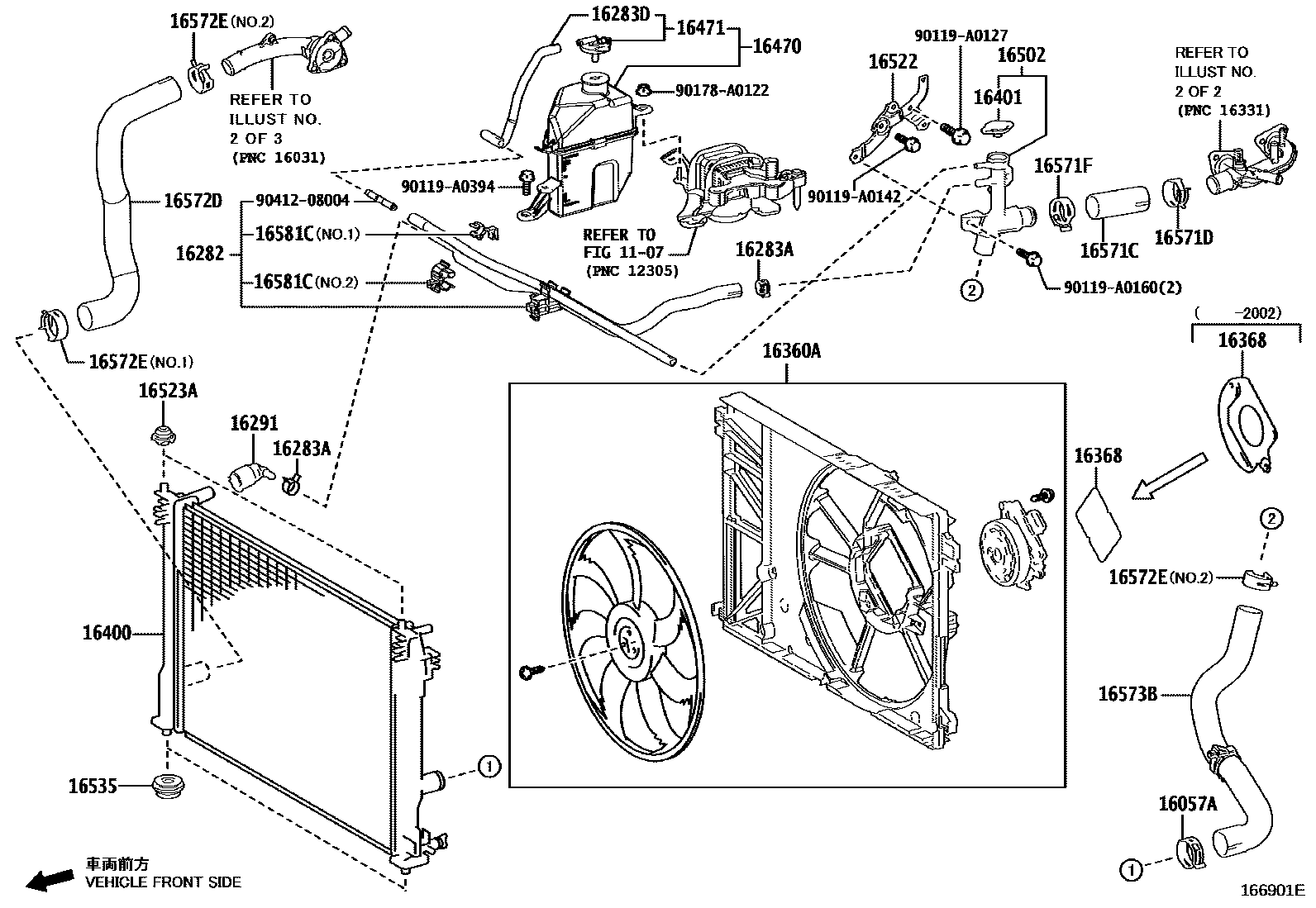

RADIATOR & WATER OUTLET
1107
16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
(J)
(L)
16282HOSE, WATER BY-PASS, NO.5
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
(L)
(J)
16283DHOSE, WATER BY-PASS, NO.6
16291JOINT, WATER HOSE
16360AFAN ASSY, W/MOTOR
16368BRACKET, COOLING MOTOR
16400RADIATOR ASSY
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16522BRACKET, WATER FILLER
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
sub16535-20010
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(J)
(L)
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(J),NO.1:SEE ILLUST
(J),NO.2:SEE ILLUST
(L),NO.2:SEE ILLUST
(L),NO.1:SEE ILLUST
16573BHOSE, RADIATOR, NO.3
16581CLAMP, HOSE(FOR WATER HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
NO.3
NO.2
NO.1
90119A0127
main90119-A0127
90119A0142
main90119-A0142
90119A0160
main90119-A0160
90119A0394
main90119-A0394
90178A0122
main90178-A0122
9041208004
main90412-08004
