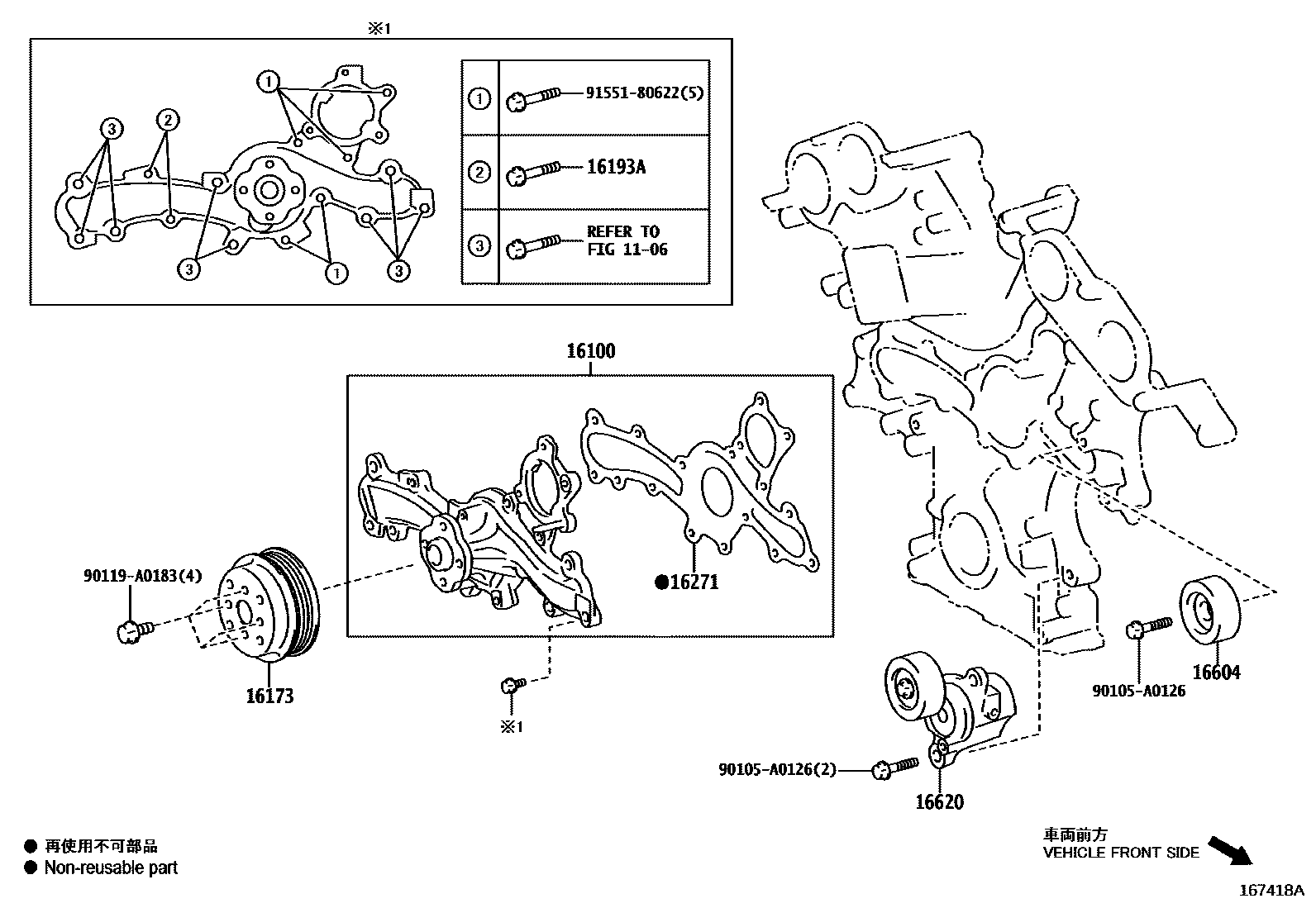

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-09690i2GRFKS..GSX50201806-202008

16173PULLEY, WATER PUMP

main16173-0P010i2GRFKS..GSX50201806-202005

sub16173-0P011

main16173-0P011i2GRFKS..GSX50202006-202008

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040i2GRFKS..GSX50201806-202008

(L)

main16193-31080i2GRFKS..GSX50201806-202008

(J)

16271GASKET, WATER PUMP

main16271-0P030i2GRFKS..GSX50201806-202204

main16271-31050i2GRFKS..GSX50202205

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31030i2GRFKS..GSX50201806-202008

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P030i2GRFKS..GSX50201806-202008

90105A0126

main90105-A0126

90119A0183

main90119-A0183

9155180622

main91551-80622

10 parts on this diagram · 1 diagram in section
