CRANKSHAFT & PISTON

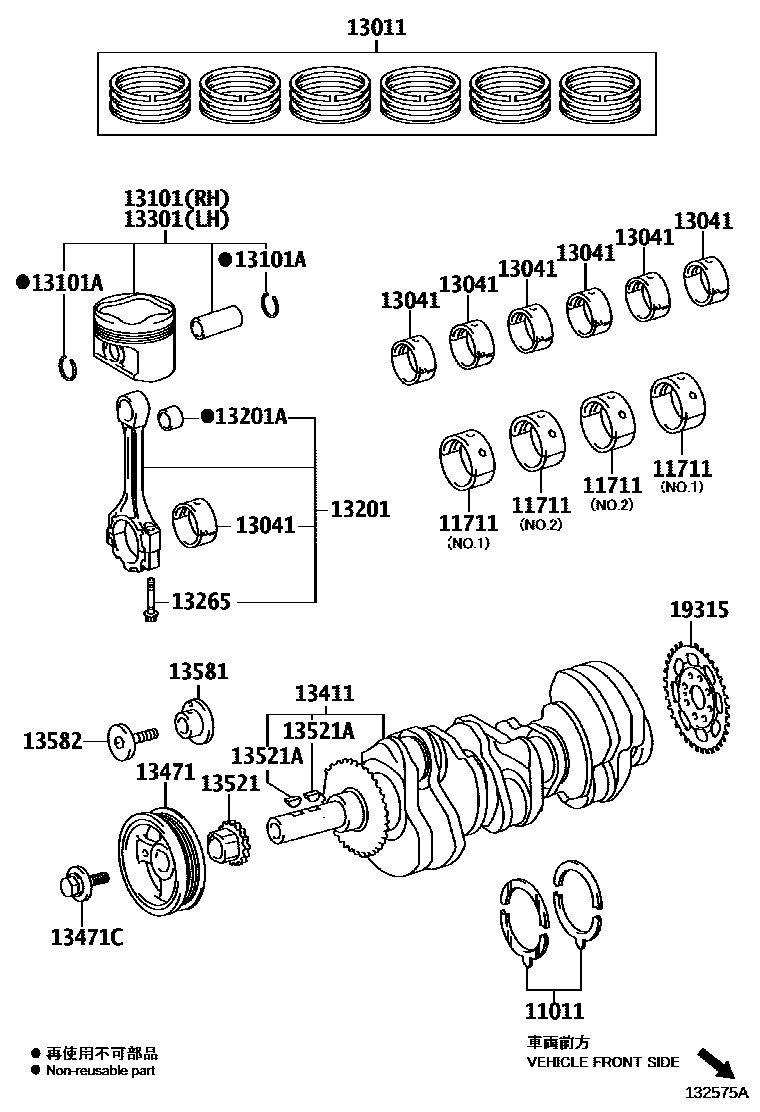

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-31080i201806-202008
STD
11711BEARING, CRANKSHAFT
main11071-0P060-A1i201806-202008
MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-A2i201806-202008
MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-B2i201806-202008
MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-B3i201806-202008
MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-C3i201806-202008
MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-C4i201806-202008
MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-D4i201806-202008
MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-D5i201806-202008
MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-E5i201806-202008
MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-31060-A1i201806-202008
MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-A2i201806-202008
MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-B2i201806-202008
MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-B3i201806-202008
MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-C3i201806-202008
MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-C4i201806-202008
MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-D4i201806-202008
MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-D5i201806-202008
MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-E5i201806-202008
MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M
sub11071-31060
main11701-0P060-A1i201806-202008
MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-A2i201806-202008
MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-B2i201806-202008
MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-B3i201806-202008
MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-C3i201806-202008
MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-C4i201806-202008
MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-D4i201806-202008
MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-D5i201806-202008
MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-E5i201806-202008
MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-31100-A1i201806-202008
MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-A2i201806-202008
MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-B2i201806-202008
MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-B3i201806-202008
MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-C3i201806-202008
MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-C4i201806-202008
MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-D4i201806-202008
MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-D5i201806-202008
MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-E5i201806-202008
MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
13011RING SET, PISTON
main13011-0P051i201806-202008
STD
13041BEARING, CONNECTING ROD
main13041-0P090-01i201806-202008
MARK 1,(L),REFER R/M
main13041-0P090-02i201806-202008
MARK 2,(L),REFER R/M
main13041-0P090-03i201806-202008
MARK 3,(L),REFER R/M
main13041-0P090-04i201806-202008
MARK 4,(L),REFER R/M
main13041-31100-01i201806-202008
MARK 1,(J),REFER R/M
main13041-31100-02i201806-202008
MARK 2,(J),REFER R/M
main13041-31100-03i201806-202008
MARK 3,(J),REFER R/M
main13041-31100-04i201806-202008
MARK 4,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-0P040i201806-202008
STD,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-A0004i201806-202008
RH BANK
13201ROD SUB-ASSY, CONNECTING
main13201-09B90i201806-202008
REFER REPAIR MANUAL
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73144i201806-202008
13265BOLT, CONNECTING ROD
main13265-28010i201806-201901
sub13265-28020
main13265-28020i201901-202008
13301PISTON SUB-ASSY, W/PIN, LH
main13301-0P030i201806-202008
STD,REFER REPAIR MANUAL
13411CRANKSHAFT
main13401-0P060i201806-202008
13471PULLEY, CRANKSHAFT
main13470-31060i201806-202008
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16020i201806-202008
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0P020i201806-202008
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main95161-30516i201806-202008
13581SHAFT, IDLE GEAR, NO.1
main13581-31030i202008
(J)
main13581-AD010i202008-202012
(L)
sub13581-31030
main13581-AD010i201806-202008
sub13581-31030
13582SHAFT, IDLE GEAR, NO.2
main13582-31031i201806-202008
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-0P050i201806-202008
