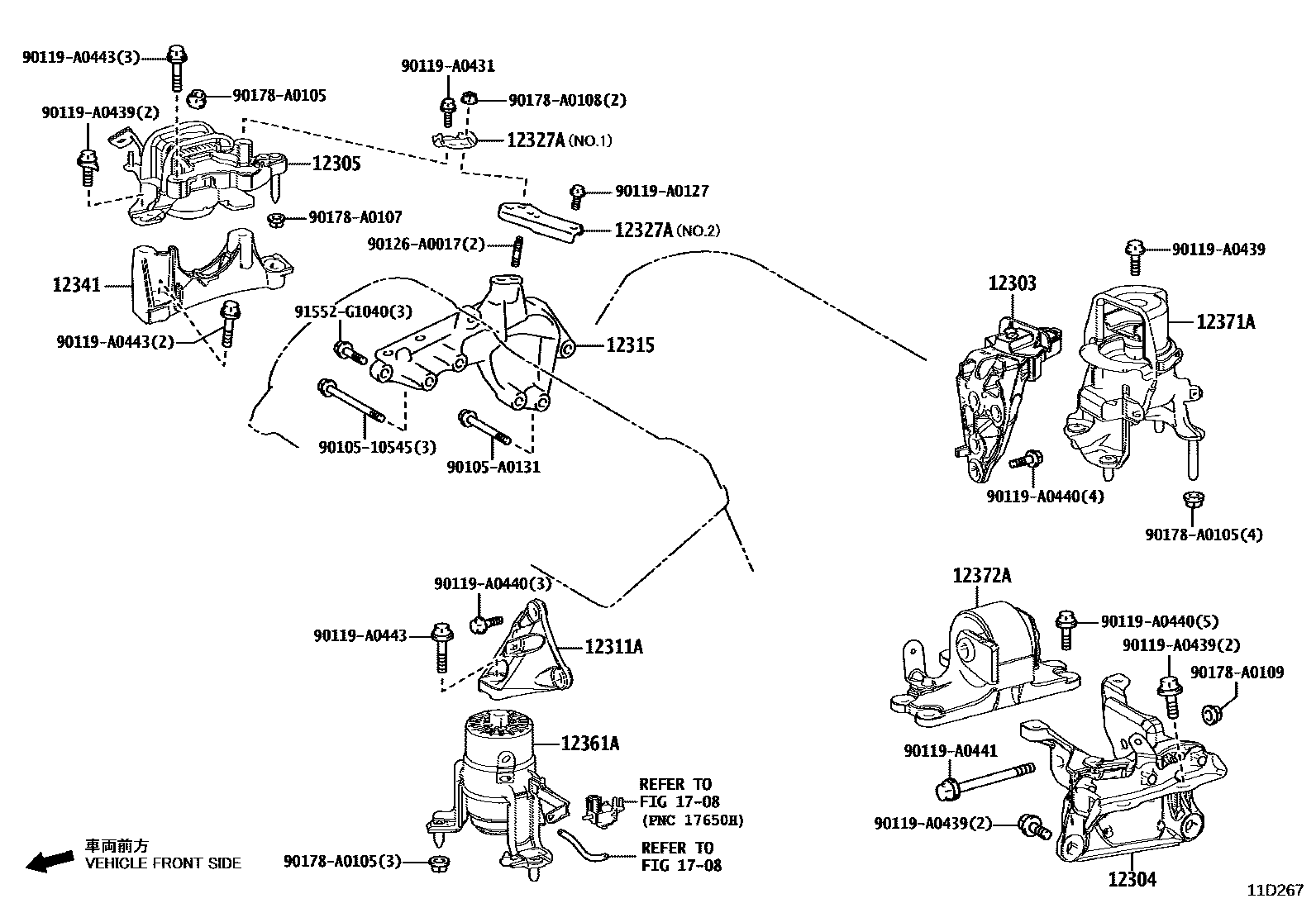

MOUNTING

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-0P040i2GRFKS..GSX50201806-202008

12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH

main12304-F0010i2GRFKS..GSX50201806-202008

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0P030i2GRFKS..GSX50201806-202008

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0P160i2GRFKS..GSX50201806-202008

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P080i2GRFKS..GSX50201806-202008

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P080i2GRFKS..GSX50201806-202008

NO.2

main12327-0P090i2GRFKS..GSX50201806-202008

NO.1,(L)

main12327-31050i2GRFKS..GSX50201910-202008

NO.1,(J)

12341SPACER, ENGINE MOUNTING

main12341-F0010i2GRFKS..GSX50201806-202008

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0P210i2GRFKS..GSX50201806-202008

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0P290i2GRFKS..GSX50201806-202008

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0P080i2GRFKS..GSX50201806-202008

1708

9010510545

main90105-10545

90105A0131

main90105-A0131

90119A0127

main90119-A0127

90119A0431

main90119-A0431

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0441

main90119-A0441

90119A0443

main90119-A0443

90126A0017

main90126-A0017

90178A0105

main90178-A0105

90178A0107

main90178-A0107

90178A0108

main90178-A0108

90178A0109

main90178-A0109

91552G1040

main91552-G1040

25 parts on this diagram · 1 diagram in section
