WIRELESS DOOR LOCK

7504

8401

89741RECEIVER, DOOR CONTROL

main89740-41010iGSX40201210-201610

main89740-41020iGSX40201210-201610

QATAR SPEC

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iGSX40201410-201510

main89747-30040iGSX40201210-201409

89990ACOMPUTER ASSY, SMART KEY

main89990-07010iGSX40..LIMD201210-201510

sub89990-07011

main89990-07040iGSX40..LIMD201411-201510

BACK MONITOR-WITH(GUIDE)

sub89990-07041

main89990-07040iGSX40..LIMD201210-201411

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

sub89990-07041

main89990-07050iGSX40..XLE201210-201409

sub89990-07051

main89990-07051iGSX40..XLE201410-201510

sub89990-07052

main89990-07150iGSX40..LIMD201510

main89990-07160iGSX40..LIMD201510

BACK MONITOR-WITH(GUIDE)

main89990-07170iGSX40..XLE201510

main89990-07180iGSX40..XLE201510

BACK MONITOR-WITH(GUIDE)

main89990-07240iGSX40..XLE201411-201510

BACK MONITOR-WITH(GUIDE)

sub89990-07241

89997ANTENNA, ELECTRICAL KEY

main89997-07030iGSX40201210-201510

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06010iGSX40201210-201510

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-06030iGSX40201210-201510

9008011545

main90080-11545

9008017244

main90080-17244

9008018062

main90080-18062

9011906448

main90119-06448

9167380816

main91673-80816

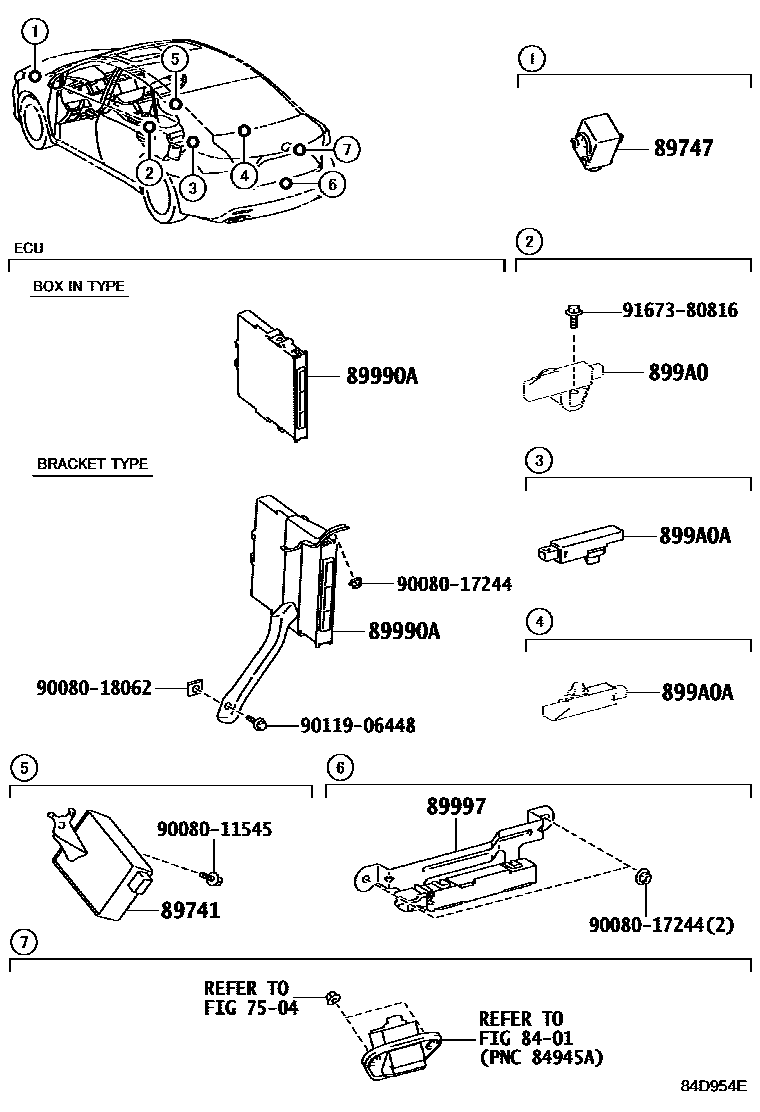

13 parts on this diagram · 1 diagram in section
