CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-07040iGSX40201411-201510

main84632-08021iGSX40201210-201411

sub84632-34010

main84632-07050iGSX40..LIMD201411-201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main84632-07060iGSX40..LIMD201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main84632-08011iGSX40..LIMD201210-201410

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

84633WIRE, CRUISE CONTROL SWITCH

main84633-0E020iGSX40201210-201411

main84633-0E040iGSX40201510

main84633-07020iGSX40..LIMD201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main84633-0E010iGSX40..LIMD201410-201411

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main84633-0E050iGSX40..LIMD201411-201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-07010iGSX40..LIMD201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main88210-41020iGSX40..LIMD201210-201409

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main88210-41021iGSX40..LIMD201410-201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

sub88210-41022

9008015079

main90080-15079

90119A0046

main90119-A0046

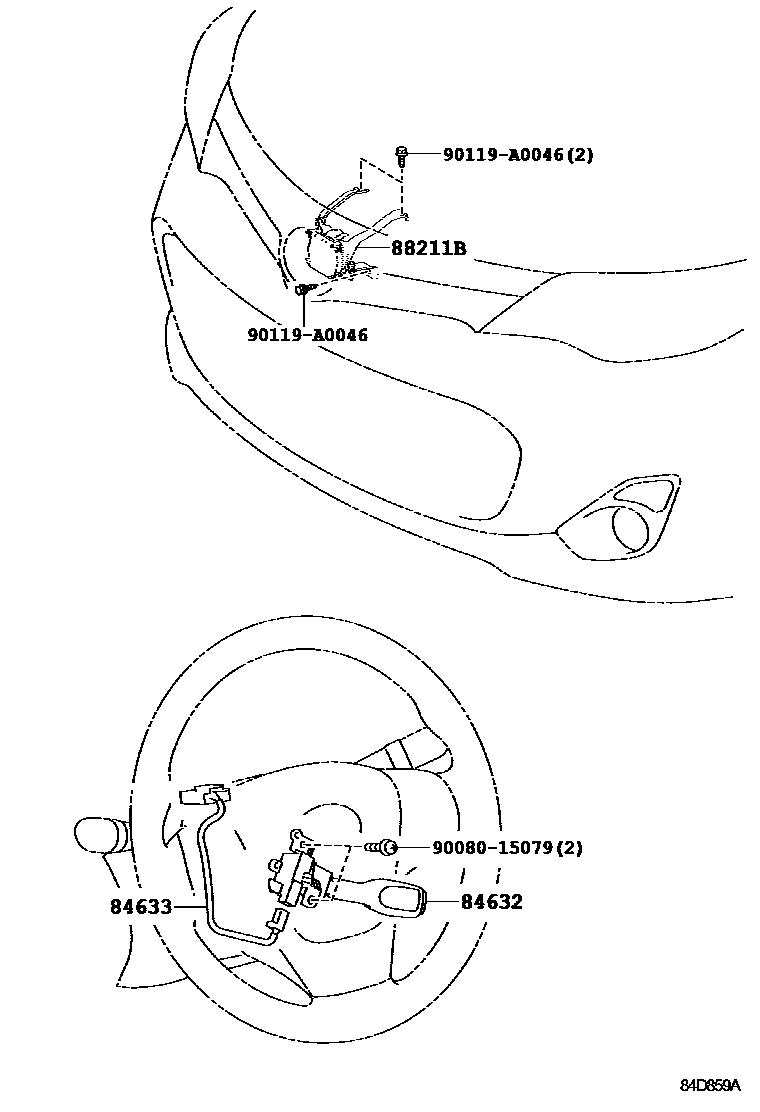

5 parts on this diagram · 2 diagrams in section
