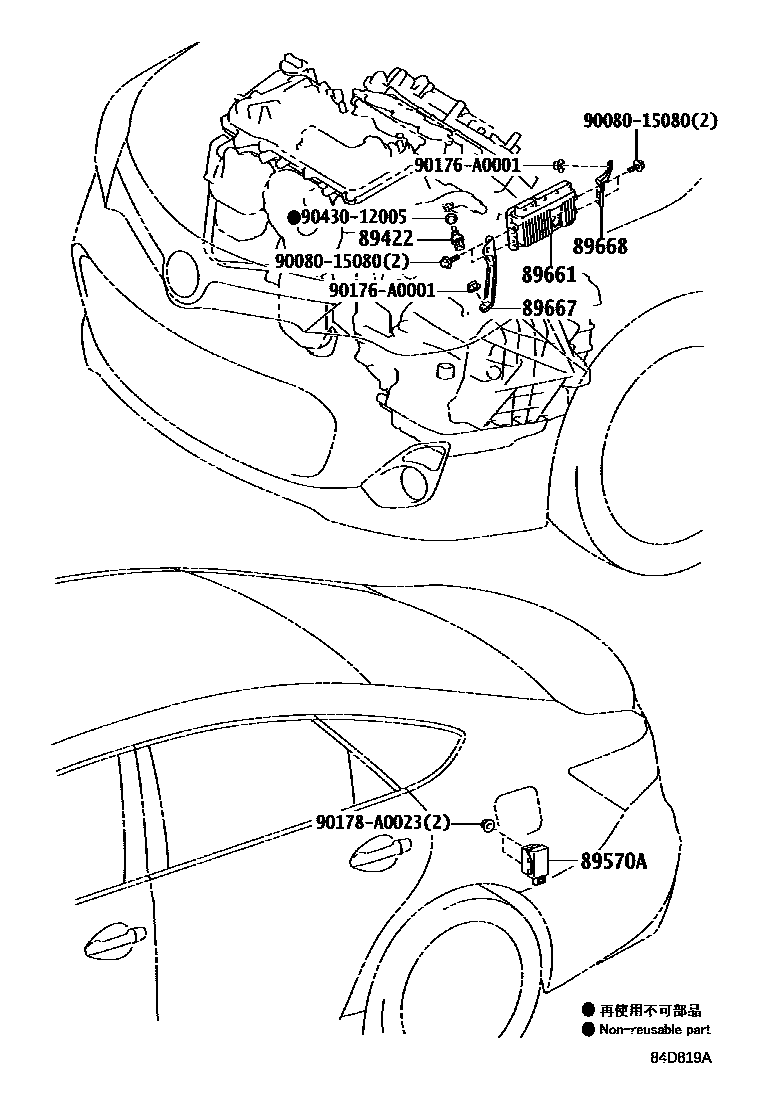

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSX40201210-201510

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-33010iGSX40201210-201302

sub89570-33040

main89570-33040iGSX40201303-201510

89661COMPUTER, ENGINE CONTROL

main89661-07540iGSX40201410-201510

main89661-07600iGSX40201210-201410

main89661-07630iGSX40201510

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06120iGSX40201210-201510

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06120iGSX40201210-201510

9008015080

main90080-15080

90176A0001

main90176-A0001

90178A0023

main90178-A0023

9043012005

main90430-12005

9 parts on this diagram · 1 diagram in section
