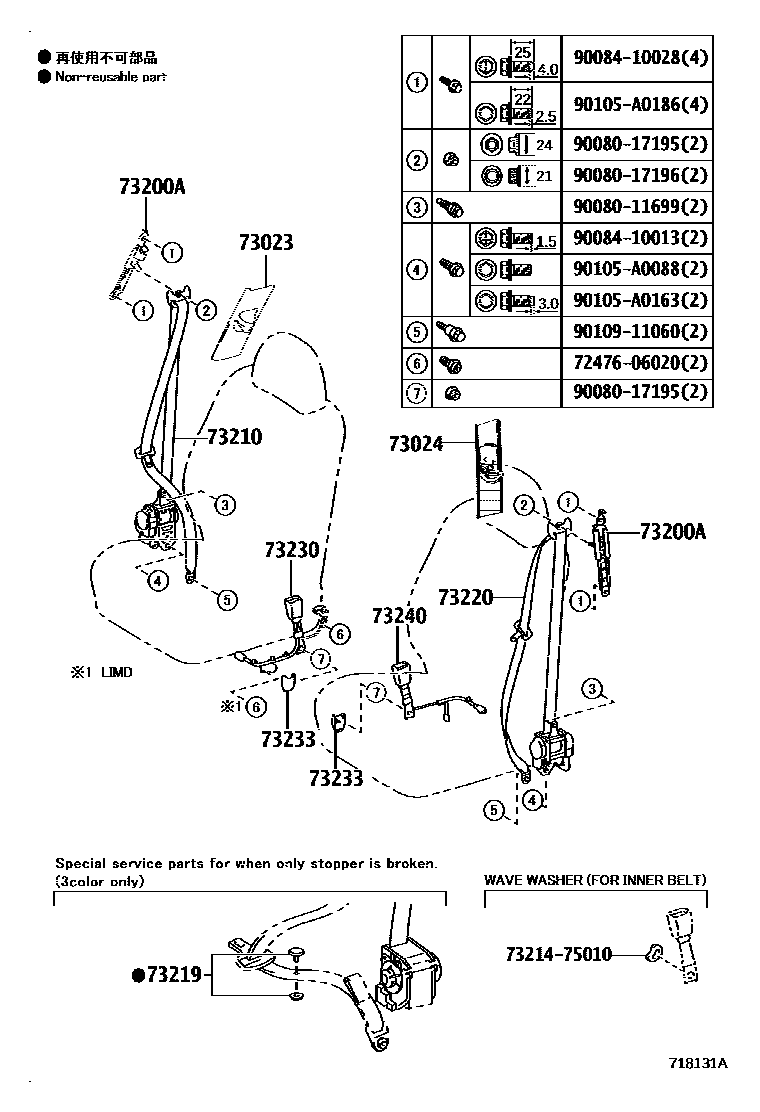

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,1#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
7247606020SCREW, HORIZONTAL JACK, INNER
main72476-06020
7321475010PLATE, FRONT SEAT BELT ANCHOR
9008011699
9008017195
main90080-17195
9008017196
main90080-17196
9008410013
9008410028
90105A0088
main90105-A0088
90105A0163
main90105-A0163
90105A0186
main90105-A0186
9010911060
20 parts on this diagram · 2 diagrams in section
