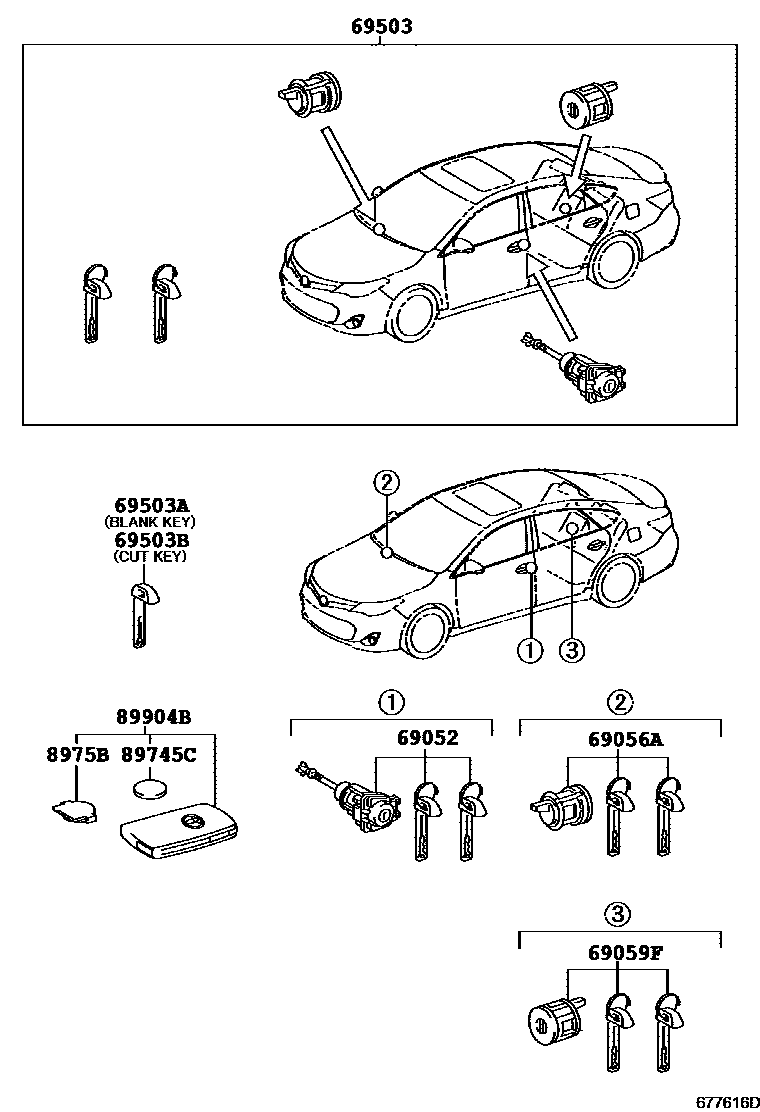

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-07010iGSX40201210-201510

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06160iGSX40201408-201510

main69056-33220iGSX40201210-201407

sub69056-06100

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-06160iGSX40201408-201510

main69056-33220iGSX40201210-201407

sub69056-06100

69503CYLINDER SET, LOCK

main69005-07040iGSX40201210-201510

69503AKEY, BLANK

main69515-06030iGSX40201408-201510

MASTER KEY,W(*68)

main69515-33100iGSX40201210-201407

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-06020iGSX40201408-201510

MASTER KEY,W(*68)

main69515-33090iGSX40201210-201407

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-50020iGSX40201210-201510

CR2032

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iGSX40201210-201510

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-33400iGSX40201210-201610

QATAR SPEC

main89904-33460iGSX40201210-201510

main89904-41040iGSX40201210-201610

JORDAN SPEC

9 parts on this diagram · 1 diagram in section
