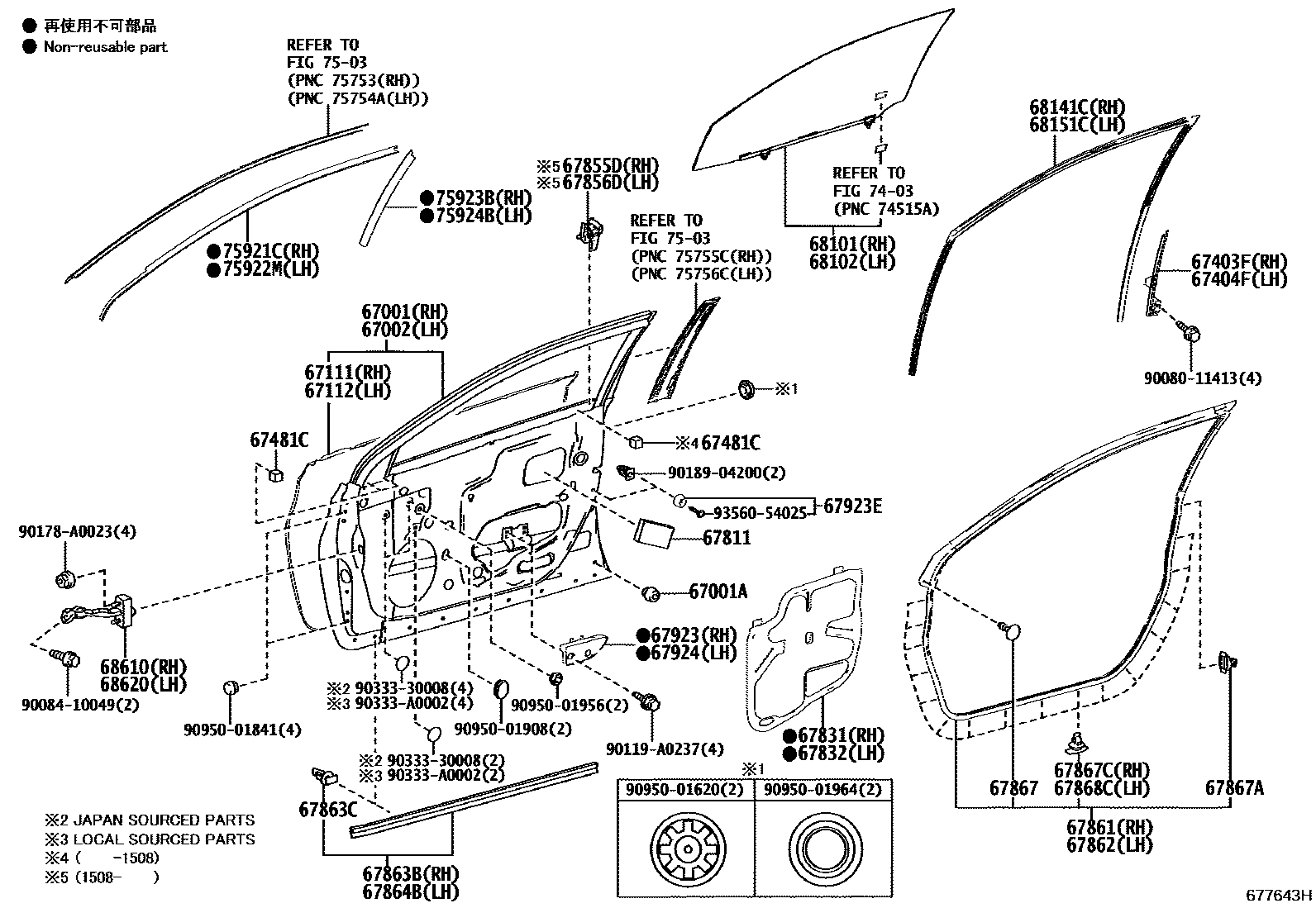

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-07040iGSX40201210-201510

sub67001-07041

main67001-07041iGSX40201510

67001ACUSHION, FRONT DOOR PANEL

main90084-54012iGSX40201210-201510

(L)

main90541-09124iGSX40201210-201510

(J)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-07040iGSX40201210-201510

sub67002-07041

main67002-07041iGSX40201510

67111PANEL, FRONT DOOR, OUTER RH

main67111-07020iGSX40201210-201510

67112PANEL, FRONT DOOR, OUTER LH

main67112-07020iGSX40201210-201510

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-07010iGSX40201210-201505

sub67403-07011

main67403-07011iGSX40201506-201510

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-07010iGSX40201210-201505

sub67404-07011

main67404-07011iGSX40201506-201510

67481CSEAL, FRONT DOOR FRONT LOWER FRAME

main67481-07010iGSX40201210-201510

67811PAD, FRONT DOOR SILENCER

main67811-AA040iGSX40201210-201510

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-07060iGSX40201210-201510

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-07040iGSX40201210-201510

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-07010iGSX40201508-201510

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-07010iGSX40201508-201510

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-07010iGSX40201210-201510

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-07010iGSX40201210-201510

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-07010iGSX40201210-201508

main67863-07011iGSX40201508-201510

main67863-07012iGSX40201510

67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-06120iGSX40201510

main67867-12150iGSX40201210-201508

main67867-50050iGSX40201508-201510

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-07010iGSX40201210-201508

main67863-07011iGSX40201508-201510

main67863-07012iGSX40201510

67867CLIP, DOOR WEATHERSTRIP

main67869-22010iGSX40201210-201510

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034iGSX40201210-201510

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGSX40201210-201510

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iGSX40201210-201510

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-06110iGSX40201210-201510

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030iGSX40201210-201510

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-06040iGSX40201210-201510

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-07030iGSX40201210-201510

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-07030iGSX40201210-201510

68141CRUN, FRONT DOOR GLASS, RH

main68141-07020iGSX40201210-201510

68151CRUN, FRONT DOOR GLASS, LH

main68151-07020iGSX40201210-201510

68610CHECK ASSY, FRONT DOOR

main68610-07020iGSX40201210-201510

68620CHECK ASSY, FRONT DOOR, LH

main68620-07020iGSX40201210-201510

7403

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75985-07010iGSX40201210-201510

75922MTAPE, BLACK OUT, NO.1 LH

main75986-07010iGSX40201210-201510

75923BTAPE, BLACK OUT, NO.2 RH

main75975-07010iGSX40201210-201510

75924BTAPE, BLACK OUT, NO.2 LH

main75976-07010iGSX40201210-201510

9008011413

main90080-11413

9008410049

main90084-10049

90119A0237

main90119-A0237

90178A0023

main90178-A0023

9018904200

main90189-04200

9033330008

main90333-30008

90333A0002

main90333-A0002

9095001620

main90950-01620

9095001841

main90950-01841

9095001908

main90950-01908

9095001956

main90950-01956

9095001964

main90950-01964

9356054025

main93560-54025

50 parts on this diagram · 2 diagrams in section
