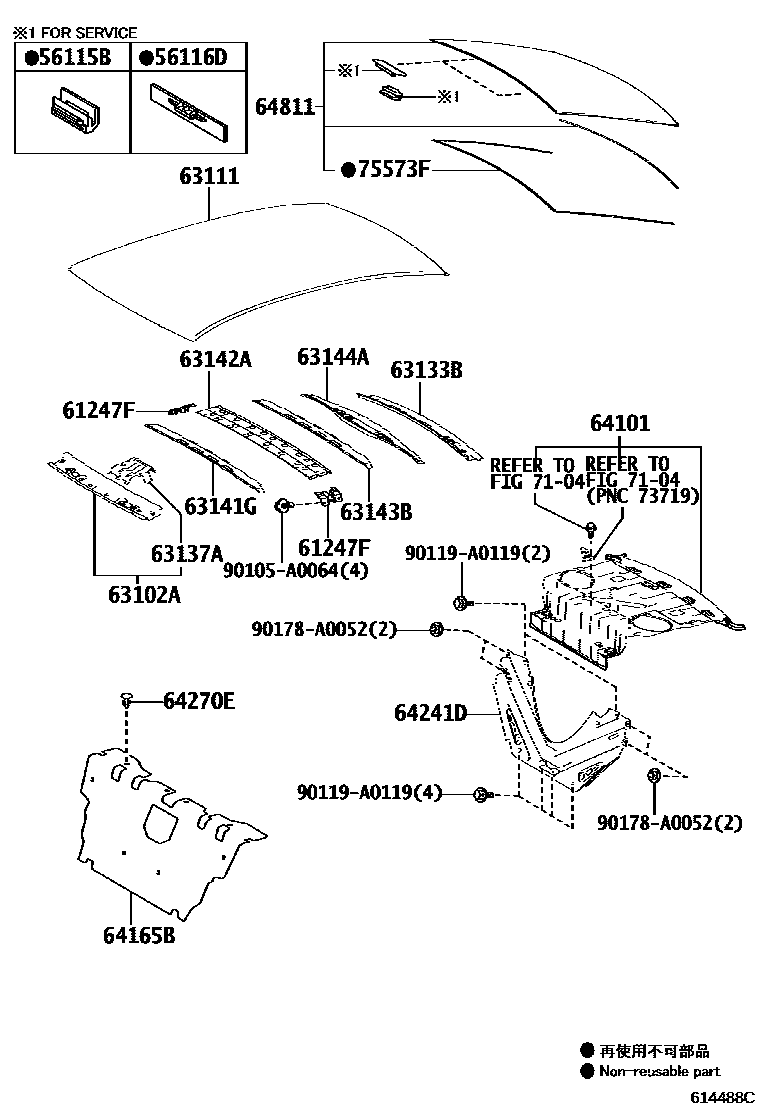

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL,WITH(NORMAL ROOF) 0002 1ROOF PANEL,WITH(MOON ROOF) 0003 1WITH(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iGSX40201210-201510

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGSX40201210-201510

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-07010iGSX40..XLE201210-201510

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-07050iGSX40..XLE201210-201510

main63102-07060iGSX40..XLE201510

MOON ROOF-WITH

main63102-07060iGSX40..LIMD201210-201510

MOON ROOF-WITH(TILT & SLIDE)

63111PANEL, ROOF

main63111-07030iGSX40..XLE201210-201510

main63111-07050iGSX40..XLE201210-201510

MOON ROOF-WITH(TILT & SLIDE)

main63111-07050iGSX40..XLE201510

MOON ROOF-WITH

63133BFRAME, BACK WINDOW

main63133-07020iGSX40..XLE201210-201307

sub63133-07021

main63133-07020iGSX40..XLE201305-201307

MOON ROOF-WITH(TILT & SLIDE)

sub63133-07021

main63133-07021iGSX40..XLE201306-201510

63137ABRACKET, DOME LAMP, NO.1

main63137-07020iGSX40..XLE201210-201510

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-07020iGSX40..XLE201210-201510

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-07010iGSX40..XLE201210-201510

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-07020iGSX40201210-201510

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63149-07010iGSX40201210-201510

64101PANEL SUB-ASSY, UPPER BACK

main64101-07070iGSX40201210-201510

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64166-07010iGSX40201210-201510

64241DPANEL, ROOM PARTITION

main64241-07020iGSX40201210-201510

64270ECLIP

main90467-07049-23iGSX40201610

BLACK

sub90467-07049

main90467-07049-C0iGSX40201210-201610

BLACK

sub90467-07049

64811GLASS, BACK WINDOW

main64801-07010iGSX40201210-201307

sub64801-07011

main64801-07011iGSX40201308-201510

7104

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-07010iGSX40201210-201510

90105A0064

main90105-A0064

90119A0119

main90119-A0119

90178A0052

main90178-A0052

21 parts on this diagram · 3 diagrams in section
