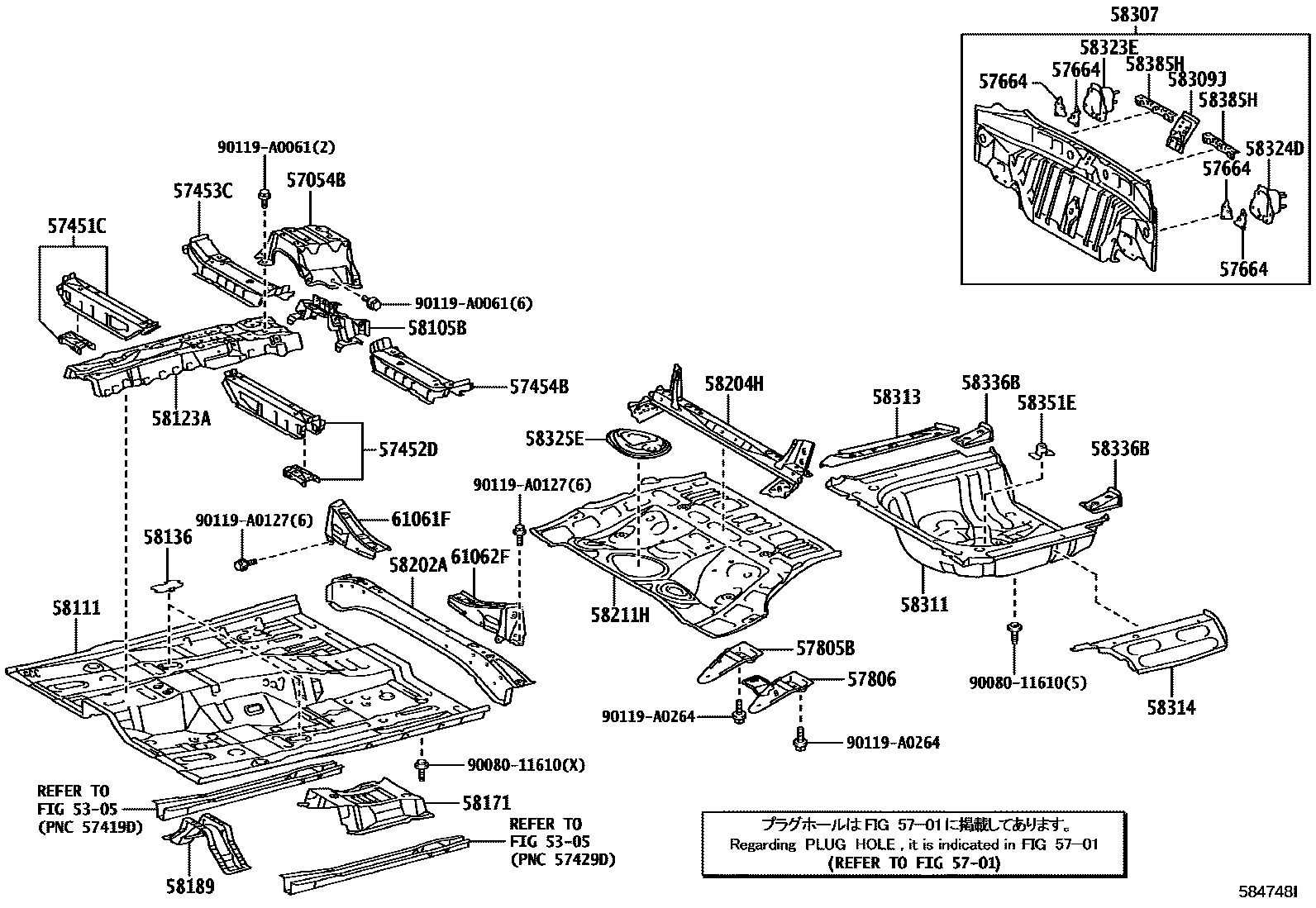

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

5305

5701

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main57054-06040iGSX40201210-201510

57451CMEMBER, FRONT FLOOR CROSS, RH

main57451-07901iGSX40201210-201510

57452DMEMBER, FRONT FLOOR CROSS, LH

main57452-07902iGSX40201210-201510

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06060iGSX40201210-201510

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06060iGSX40201210-201510

57664BRACE, BODY LOWER BACK PANEL

main58325-07010iGSX40201210-201510

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06020iGSX40201210-201510

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06020iGSX40201210-201510

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06010iGSX40201210-201510

58111PAN, FRONT FLOOR

main58111-07042iGSX40201409-201510

main58111-07903iGSX40201210-201409

sub58111-07042

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06050iGSX40201210-201510

58136COVER, FRONT FLOOR HOLE

main58136-06050iGSX40201210-201510

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-07050iGSX40201210-201510

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07030iGSX40201210-201510

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06050iGSX40201210-201510

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-07010iGSX40201210-201510

58211HPAN, CENTER FLOOR

main58211-06201iGSX40201210-201510

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07040iGSX40201210-201510

58309JRETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

main58309-07030iGSX40201210-201510

58311PAN, REAR FLOOR

main58311-06151iGSX40201210-201510

58313PANEL, REAR FLOOR SIDE, RH

main58313-06120iGSX40201210-201510

58314PANEL, REAR FLOOR SIDE, LH

main58314-06120iGSX40201210-201510

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58303-07010iGSX40201210-201510

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58304-07010iGSX40201210-201510

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06060iGSX40201210-201402

sub58325-06061

main58325-06061iGSX40201403-201510

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-06070iGSX40201210-201510

58351EBRACKET, SPARE WHEEL CLAMP

main58351-06030iGSX40201210-201510

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-06080iGSX40201210-201510

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61061-06032iGSX40201210-201510

61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61062-06032iGSX40201210-201510

9008011610

main90080-11610

90119A0061

main90119-A0061

90119A0127

main90119-A0127

90119A0264

main90119-A0264

36 parts on this diagram · 2 diagrams in section
