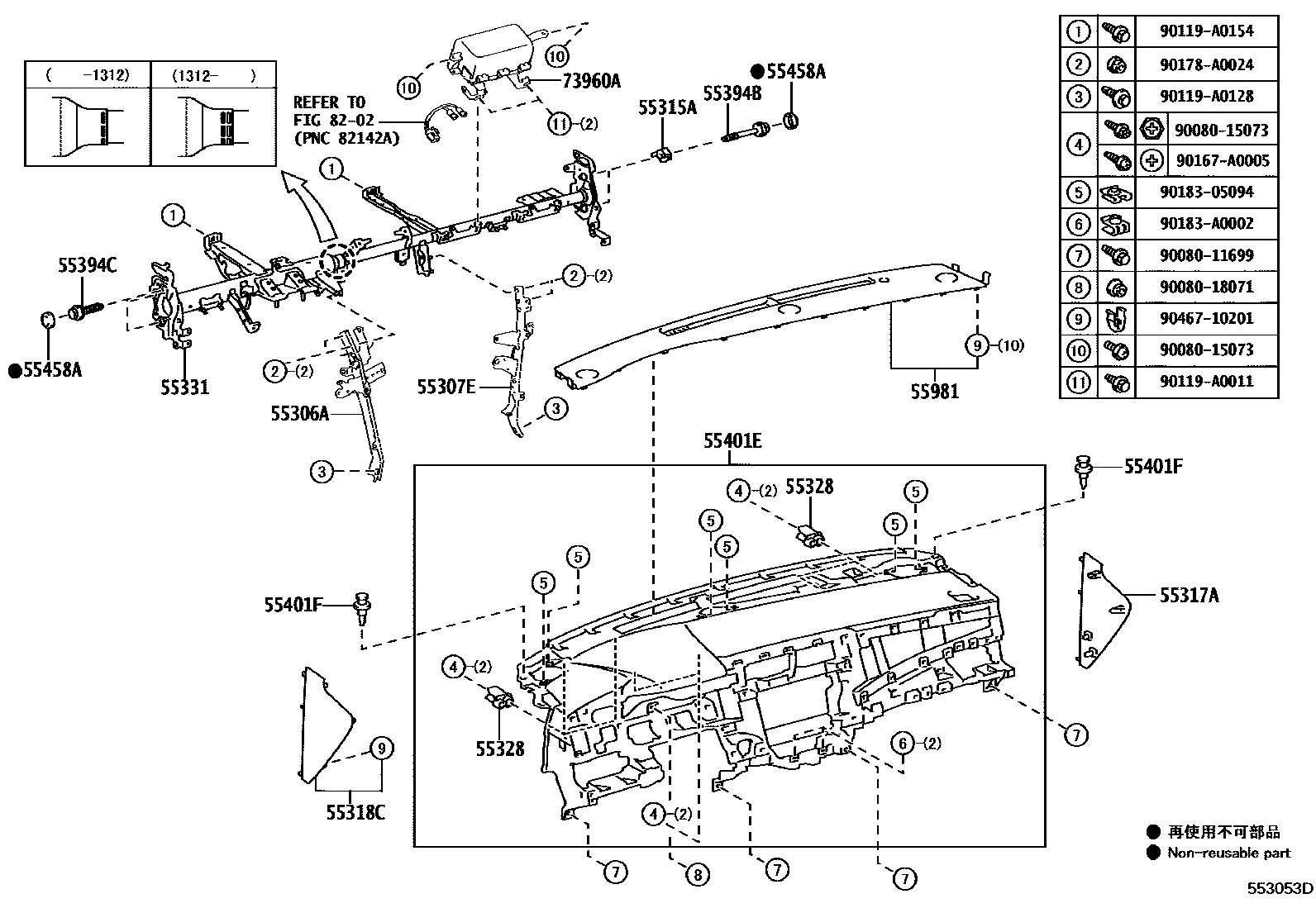

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-07050iGSX40201210-201510

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-07030iGSX40201210-201510

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160iGSX40201210-201510

55317APANEL, INSTRUMENT SIDE, RH

main55317-07020-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-07020-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iGSX40201210-201510

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-07050iGSX40201210-201312

main55330-07051iGSX40201312-201410

main55330-07053iGSX40201410-201510

main55330-07060iGSX40201510

55394BBOLT, INSTRUMENT PANEL

main90119-A0306iGSX40201210-201510

55394CBOLT, INSTRUMENT PANEL

main90119-A0305iGSX40201210-201510

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-07080-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

55401FCLIP(FOR SAFETY PAD)

main52161-02020iGSX40201210-201510

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110iGSX40201210-201510

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-07020-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07080iGSX40201210-201510

8202

9008011699

main90080-11699

9008015073

main90080-15073

9008018071

main90080-18071

90119A0011

main90119-A0011

90119A0128

main90119-A0128

90119A0154

main90119-A0154

90167A0005

main90167-A0005

90178A0024

main90178-A0024

9018305094

main90183-05094

90183A0002

main90183-A0002

9046710201

main90467-10201

26 parts on this diagram · 4 diagrams in section
