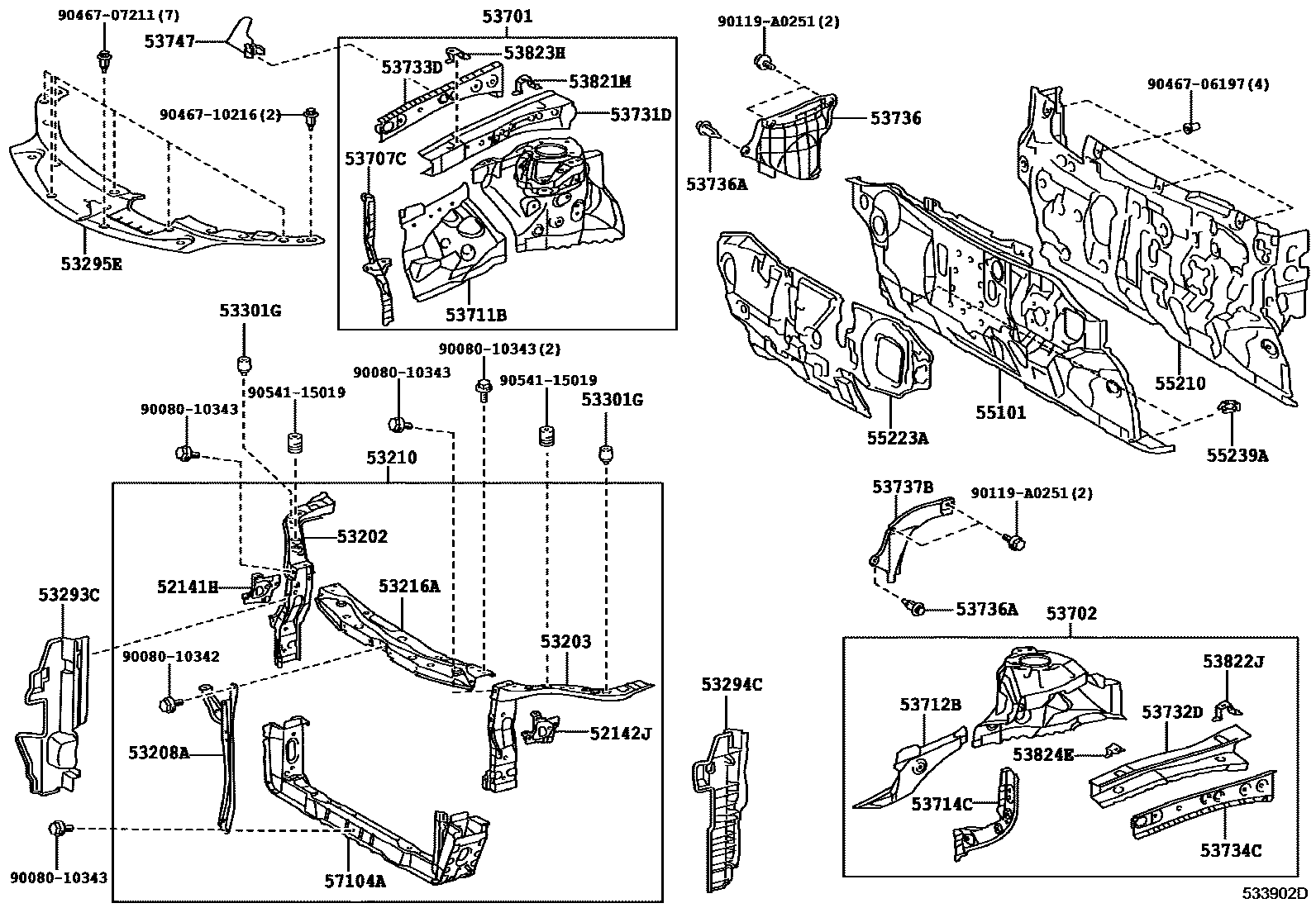

FRONT FENDER APRON & DASH PANEL
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53210SUPPORT ASSY, RADIATOR
53216ASUPPORT, RADIATOR, UPPER
53295ESEAL, COOL AIR INTAKE DUCT
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53737BSEAL, FRONT FENDER APRON, LH
53821MBRACKET, FRONT FENDER, REAR NO.1 RH
53822JBRACKET, FRONT FENDER, REAR NO.1 LH
53823HGUSSET, FRONT FENDER, RH
53824EGUSSET, FRONT FENDER, LH
55223AINSULATOR, DASH PANEL, OUTER
55239APLATE, DASH PANEL INSULATOR, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
9008010342
main90080-10342
9008010343
main90080-10343
90119A0251
main90119-A0251
9046706197
main90467-06197
9046707211
main90467-07211
9046710216
main90467-10216
9054115019
main90541-15019
41 parts on this diagram · 1 diagram in section
