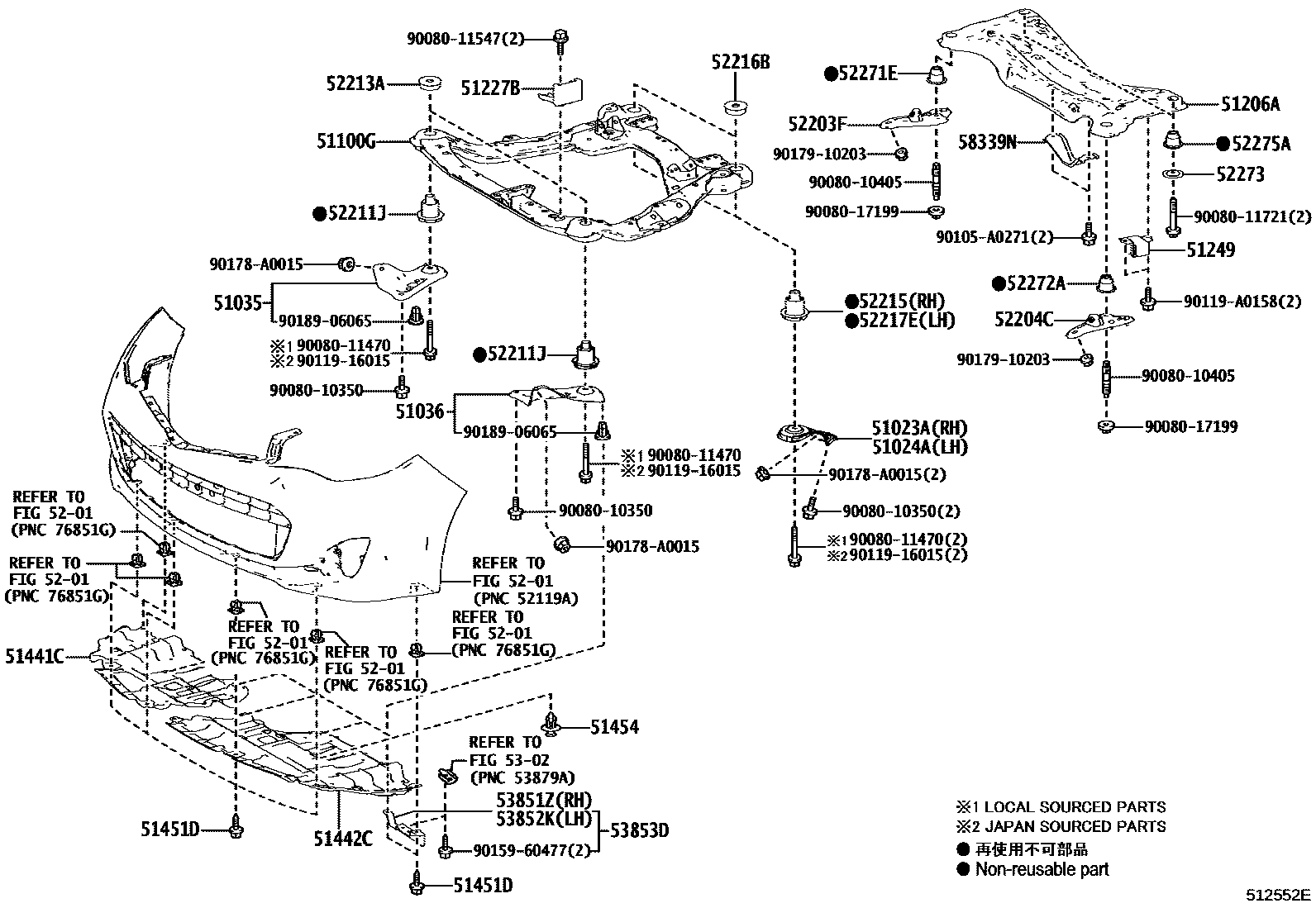

SUSPENSION CROSSMEMBER & UNDER COVER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51249DAMPER, REAR SUSPENSION MEMBER
51451DSCREW, NO.1
5201
52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
5302
53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH
53852KPAD, FRONT WHEEL OPENING EXTENSION, LH
53853DPAD, FRONT WHEEL OPENING EXTENSION, NO.3
58339NBRACKET, JACK UP
9008010350
main90080-10350
9008010405
main90080-10405
9008011470
main90080-11470
9008011547
main90080-11547
9008011721
main90080-11721
9008017199
main90080-17199
90105A0271
main90105-A0271
9011916015
main90119-16015
90119A0158
main90119-A0158
9015960477
main90159-60477
90178A0015
main90178-A0015
9017910203
main90179-10203
9018906065
main90189-06065
42 parts on this diagram · 1 diagram in section
