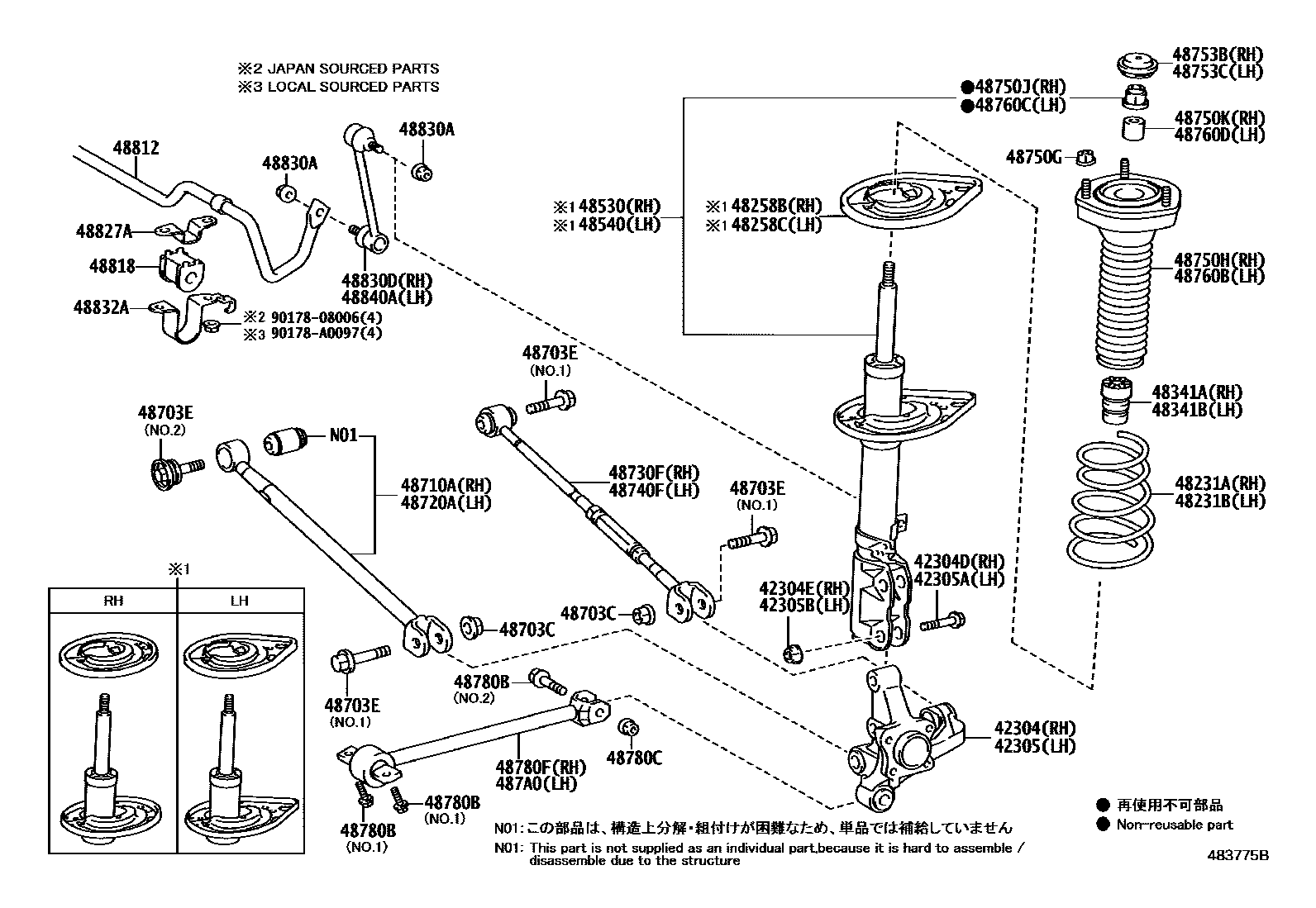

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-07170
MARK 48530-47140
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-07190
MARK 48540-07160
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.5PX75-30,NO.1
*14-1.50PX76-36,NO.2
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780BBOLT(FOR STRUT ROD)
NO.2
NO.1
48780CNUT(FOR STRUT ROD)
48780FROD ASSY, STRUT, REAR RH
487A0ROD ASSY, STRUT, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48827ABRACKET, REAR STABILIZER BAR, NO.2
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9017808006
main90178-08006
90178A0097
main90178-A0097
42 parts on this diagram · 1 diagram in section
