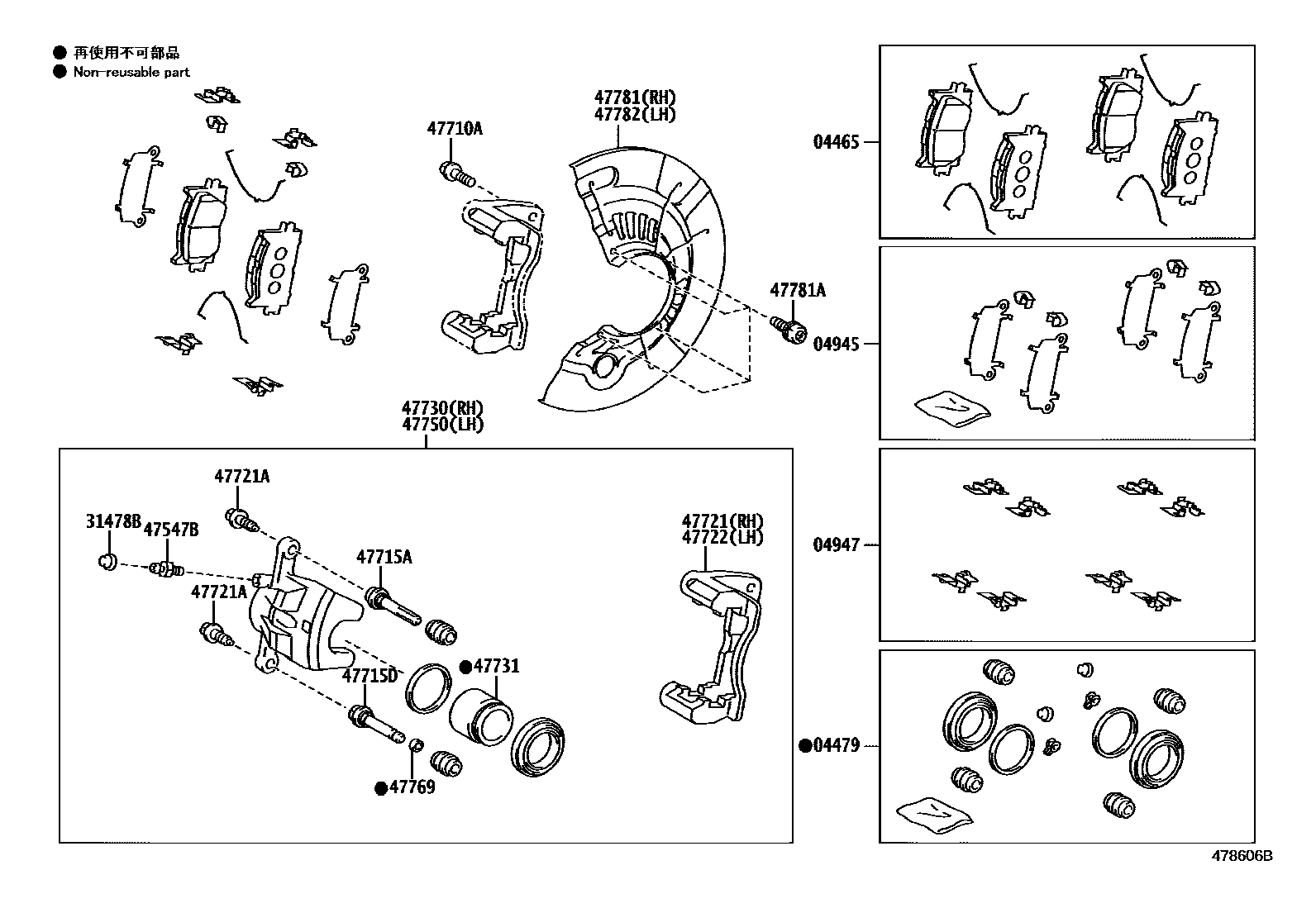

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-07010iGSX40201210-201510

MARK NBK D6911H

main04465-07020iGSX40201510

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06221iGSX40201210-201510

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06150iGSX40201210-201510

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33260iGSX40201210-201510

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGSX40201210-201510

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06040iGSX40201410-201505

(L)

main47547-06040iGSX40201210-201410

main47547-12130iGSX40201410-201505

(J)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iGSX40201210-201510

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-07071iGSX40201210-201510

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iGSX40201210-201510

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-07071iGSX40201210-201510

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA103iGSX40201210-201510

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-07071iGSX40201210-201510

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-07071iGSX40201210-201510

47731PISTON, FRONT DISC BRAKE

main47731-06220iGSX40201210-201510

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-07071iGSX40201210-201510

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGSX40201210-201510

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06130iGSX40201210-201510

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iGSX40201210-201510

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06130iGSX40201210-201510

19 parts on this diagram · 1 diagram in section
