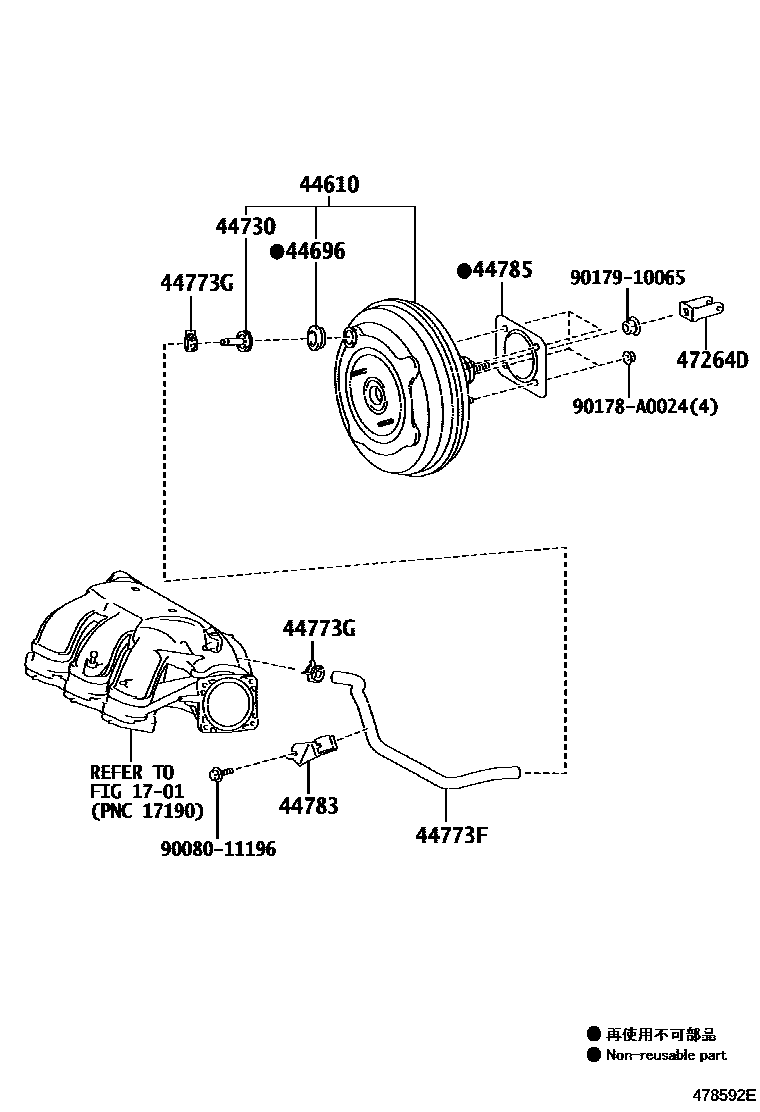

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-06471iGSX40201210-201410

sub44610-06780

main44610-06472iGSX40201410-201412

sub44610-06761

main44610-06760iGSX40201412-201512

sub44610-06761

main44610-06761iGSX40201601

44696GROMMET, CHECK VALVE

main90080-48071iGSX40201210-201510

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGSX40201210-201510

44773FHOSE, UNION TO CHECK VALVE

main44773-06100iGSX40201210-201510

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-A0003iGSX40201210-201510

44783CLAMP, VACUUM HOSE

main44783-06060iGSX40201210-201510

44785GASKET, BRAKE BOOSTER

main44785-02060iGSX40201210-201510

(L)

main44785-02060iGSX40201510

main44785-12040iGSX40201210-201510

(J)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iGSX40201210-201510

9008011196

main90080-11196

90178A0024

main90178-A0024

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
