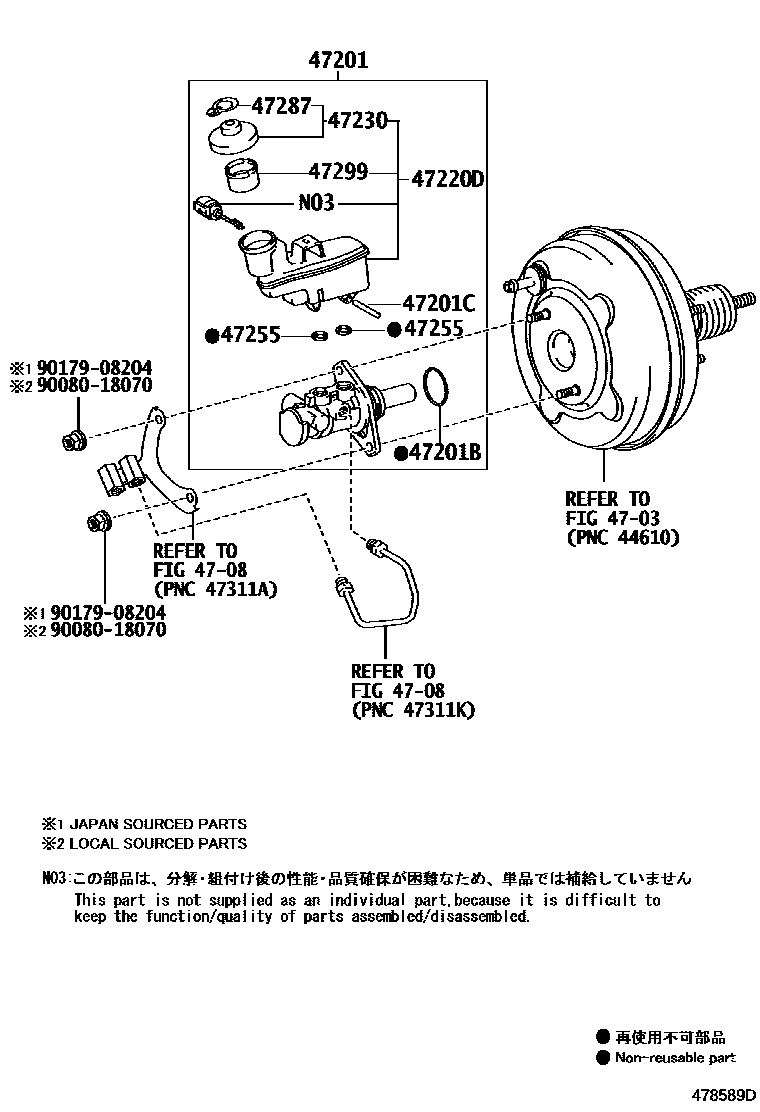

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07092iGSX40201210-201604

main47201-07093iGSX40201605

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSX40201210-201510

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSX40201210-201510

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-07060iGSX40201210-201605

main47220-07061iGSX40201605

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02270iGSX40201210-201412

sub47230-02271

main47230-02271iGSX40201412-201510

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSX40201210-201510

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGSX40201412-201510

main47287-20010iGSX40201210-201412

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-06180iGSX40201412-201510

main47299-25010iGSX40201210-201412

9008018070

main90080-18070

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
