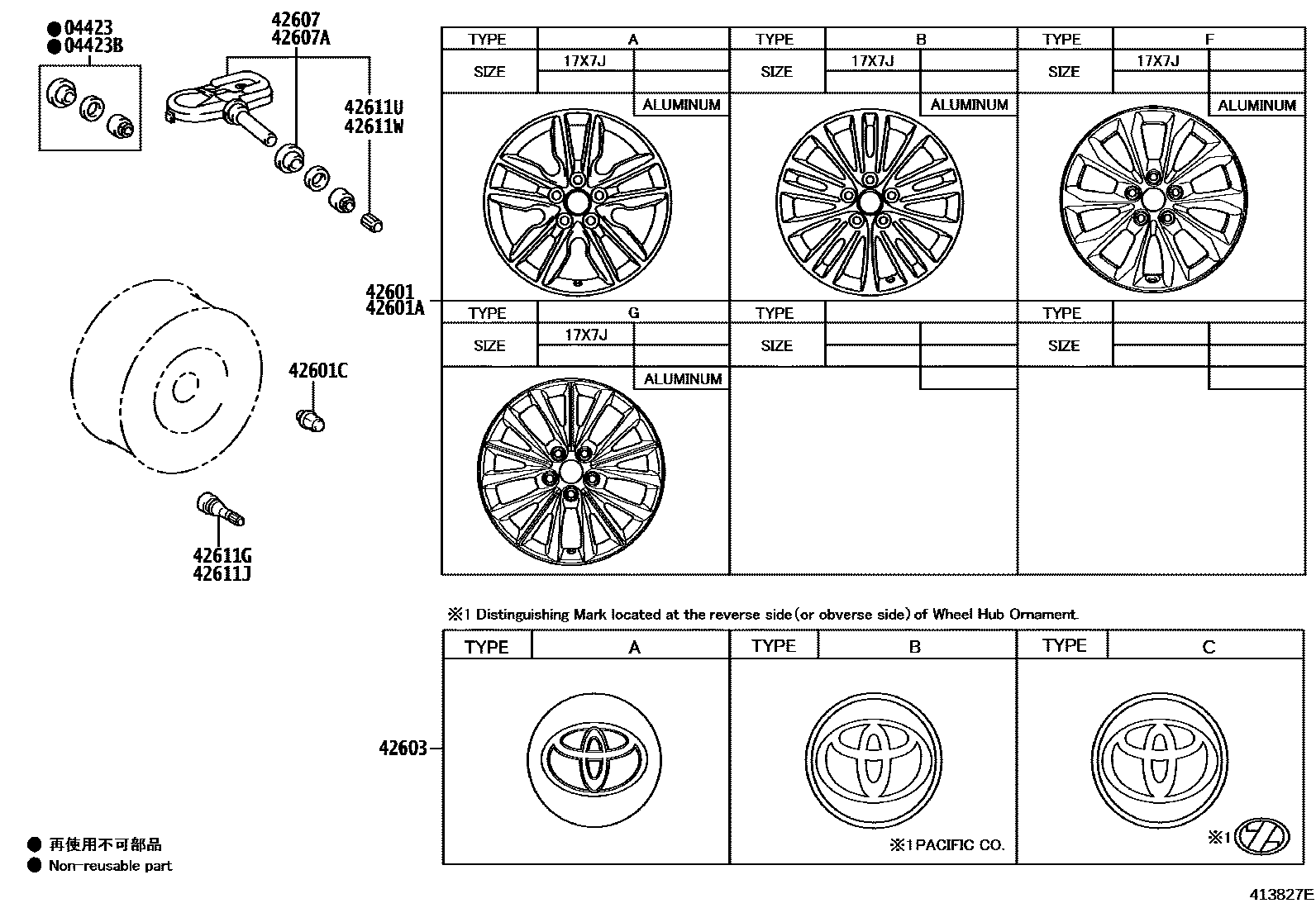

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iGSX40201610

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-0E010iGSX40201610

42601WHEEL, DISC

main42611-07060iGSX40..XLE201210-201410

17X7J, #,TYPE A:REFER ILLUST.

sub42611-07061

main42611-07061iGSX40..XLE201410-201510

17X7J, #,TYPE A:REFER ILLUST.

main42611-07070iGSX40..LIMD201210-201510

17X7J, #,TYPE B:REFER ILLUST.

main42611-07100iGSX40..XLE201510

17X7J, #,TYPE F:REFER ILLUST.

main4261A-07010iGSX40..LIMD201510

17X7J, #,TYPE G:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-07060iGSX40..XLE201210-201410

17X7J, #,TYPE A:REFER ILLUST.

sub42611-07061

main42611-07061iGSX40..XLE201410-201510

17X7J, #,TYPE A:REFER ILLUST.

main42611-07070iGSX40..LIMD201210-201510

17X7J, #,TYPE B:REFER ILLUST.

main42611-07100iGSX40..XLE201510

17X7J, #,TYPE F:REFER ILLUST.

main4261A-07010iGSX40..LIMD201510

17X7J, #,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iGSX40201210-201510

sub90942-A1009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-06150iGSX40201510

*ALU,TYPE C:REFER ILLUST.

main42603-06160iGSX40201510

*ALU,(L),TYPE B:REF ILL.

sub42603-06150

main42603-07010iGSX40201311-201510

*ALU,TYPE A:REFER ILLUST.

sub42603-48130

main42603-48130iGSX40201210-201310

*ALU,TYPE A:REFER ILLUST.

main42603-48140iGSX40201510

*ALU,(J),TYPE B:REF ILL.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02021iGSX40201610

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-02021iGSX40201610

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006iGSX40201210-201610

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iGSX40201210-201610

42611UCAP, TIRE VALVE

main90942-A5002iGSX40201610

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-A5002iGSX40201610

12 parts on this diagram · 1 diagram in section
