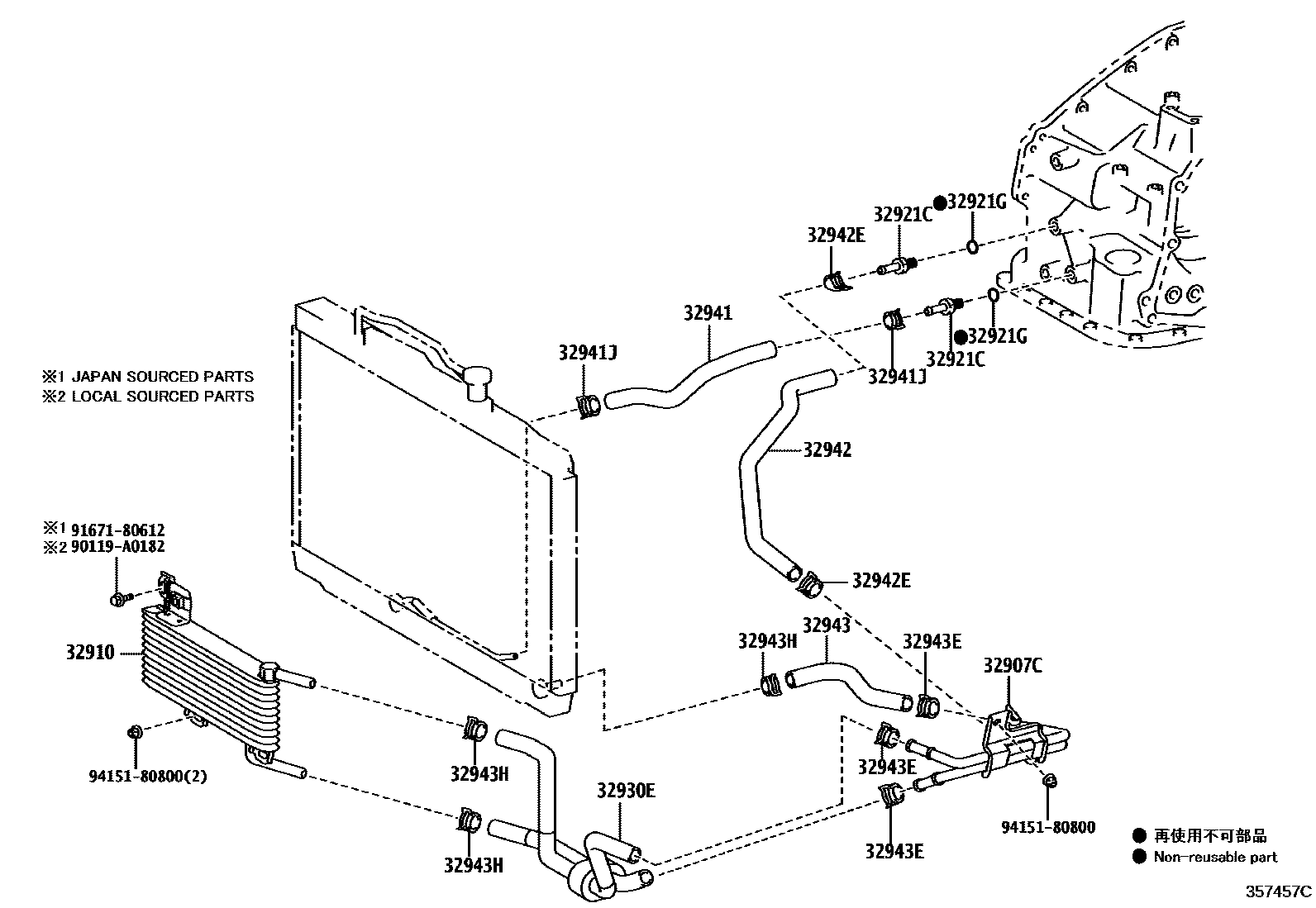

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-33180iGSX40201210-201510

32910COOLER ASSY, OIL

main32910-41050iGSX40201210-201510

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027iGSX40201210-201506

main90404-14027iGSX40201506-201510

*324

main90404-A0002iGSX40201506-201605

*325

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iGSX40201210-201510

*324

main90301-A0022iGSX40201210-201801

*325

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-41020iGSX40201210-201510

32941HOSE, OIL COOLER INLET, NO.1

main32941-07020iGSX40201210-201510

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90467-A0012iGSX40201210-201510

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-07040iGSX40201210-201510

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90467-A0012iGSX40201210-201510

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-33200iGSX40201210-201404

sub32943-33201

main32943-33201iGSX40201405-201510

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004iGSX40201210-201510

32943HCLIP, NO.4(FOR OIL COOLER HOSE)

main90467-A0012iGSX40201210-201510

90119A0182

main90119-A0182

9167180612

main91671-80612

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
