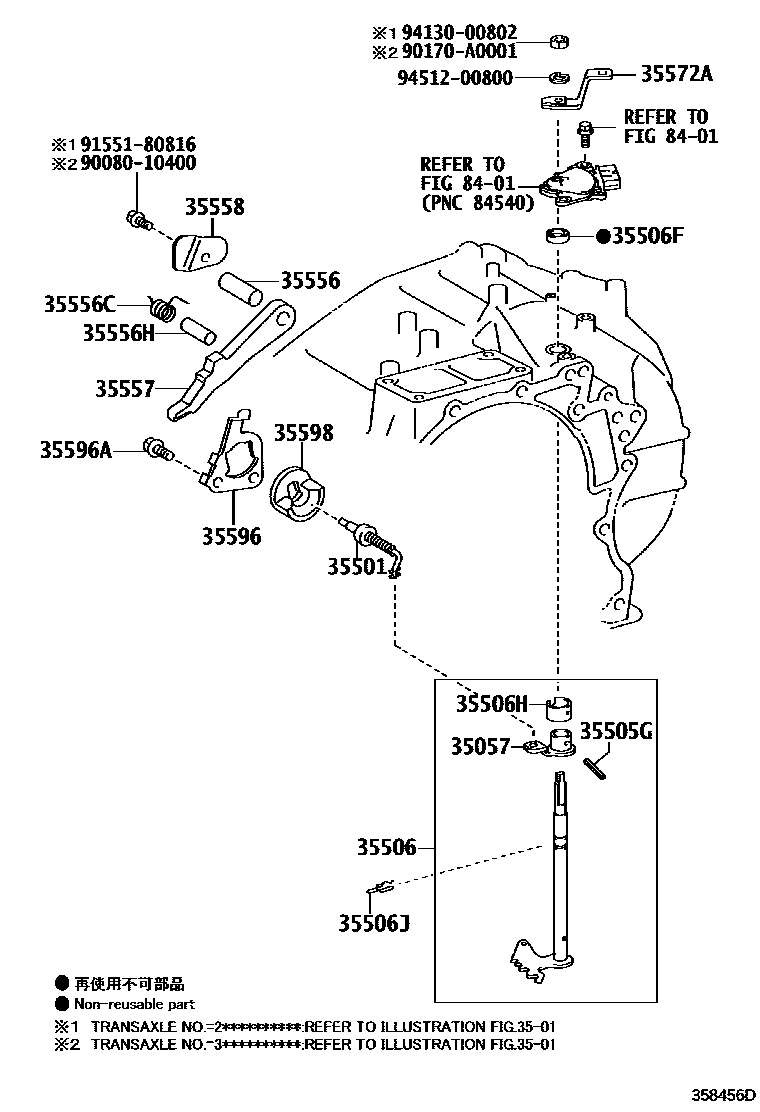

THROTTLE LINK & VALVE LEVER (ATM)
35057LEVER SUB-ASSY,PARKING LOCK
35501ROD SUB-ASSY, PARKING LOCK
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
*324
*325
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
*324
*325
35556SHAFT, PARKING LOCK PAWL
*325
*324
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
*324
*325
35556HSHAFT, PARKING LOCK PAWL
*325
*324
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
*325
*324
35572ALEVER, TRANSMISSION CONTROL SHAFT
*325
*324
35596PLATE, PAWL STOPPER
*325
*324
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5,*325
*8-1.25PX16-13.5,*324
35598SLEEVE, PARKING LOCK
*325
*324
8401
9008010400
main90080-10400
90170A0001
main90170-A0001
9155180816
main91551-80816
9413000802
main94130-00802
9451200800
main94512-00800
22 parts on this diagram · 1 diagram in section
