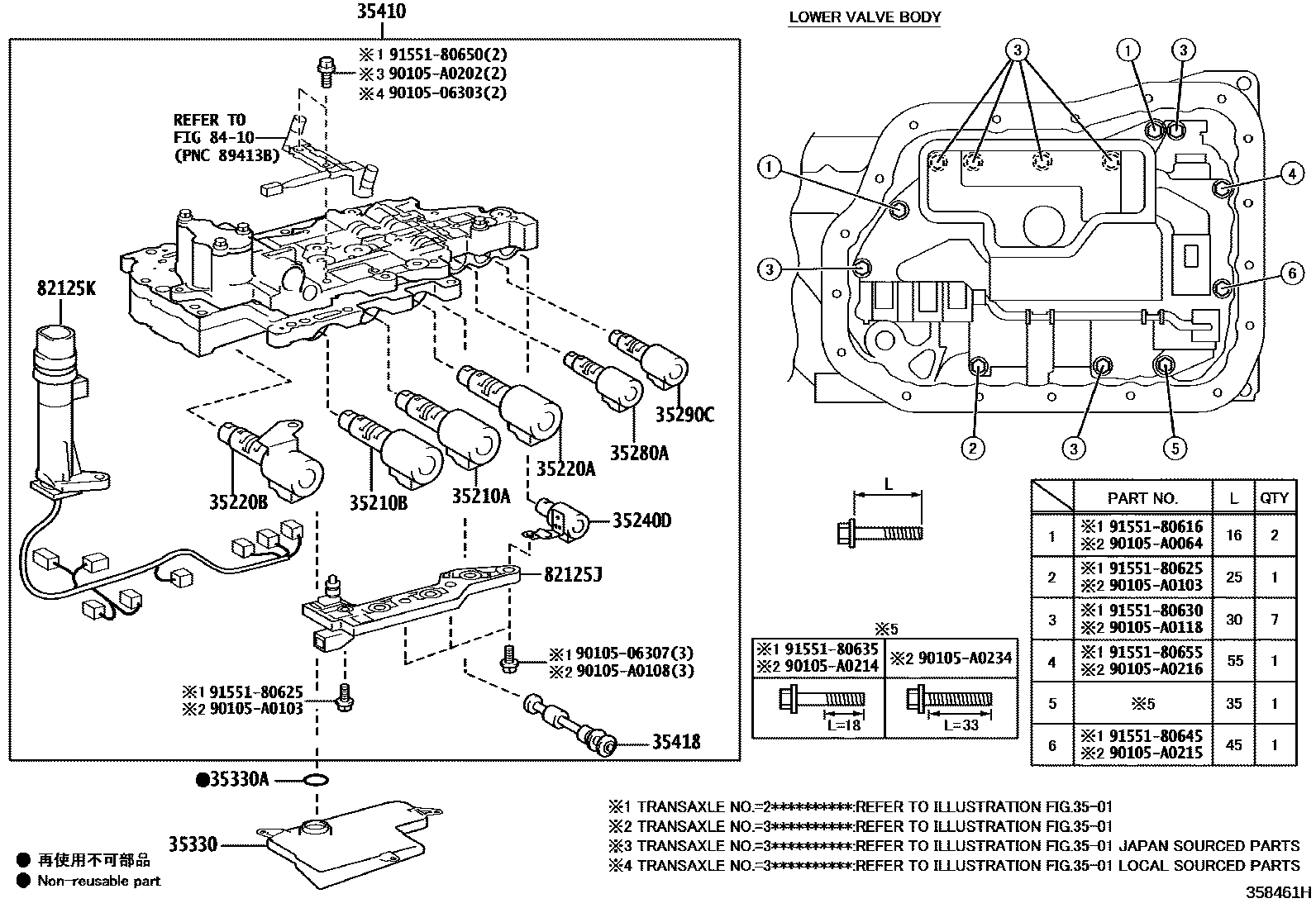

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U660E

35210AVALVE, SOLENOID(SL1)

main35210-33030iGSX40201210-201510

35210BVALVE, SOLENOID(SL3)

main35210-33030iGSX40201210-201510

35220AVALVE, SOLENOID(SL2)

main35220-33040iGSX40201210-201510

35220BVALVE, SOLENOID(SL4)

main35220-33040iGSX40201210-201510

35240DVALVE, SOLENOID(SL)

main35240-73010iGSX40201210-201510

35280AVALVE, SOLENOID(SLU)

main35280-52040iGSX40201210-201510

35290CVALVE, SOLENOID(SLT)

main35290-33040iGSX40201210-201510

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGSX40201210-201308

sub35330-48020

main35330-48020iGSX40201308-201510

35330ARING, O (FOR OIL STRAINER)

main90301-27015iGSX40201210-201510

*324

main90301-A0026iGSX40201210-201801

*325

35410BODY ASSY, TRANSMISSION VALVE

main35410-08021iGSX40201210-201801

*325

sub35410-33240

main35410-33240iGSX40201210-201510

*324

35418VALVE, MANUAL

main35418-73010iGSX40201210-201510

82125JWIRE, TRANSMISSION

main82125-33150iGSX40201210-201510

sub82125-33151

82125KWIRE, TRANSMISSION

main82125-33160iGSX40201210-201510

8410

9010506303

main90105-06303

9010506307

main90105-06307

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0108

main90105-A0108

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0214

main90105-A0214

90105A0215

main90105-A0215

90105A0216

main90105-A0216

90105A0234

main90105-A0234

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

32 parts on this diagram · 2 diagrams in section
