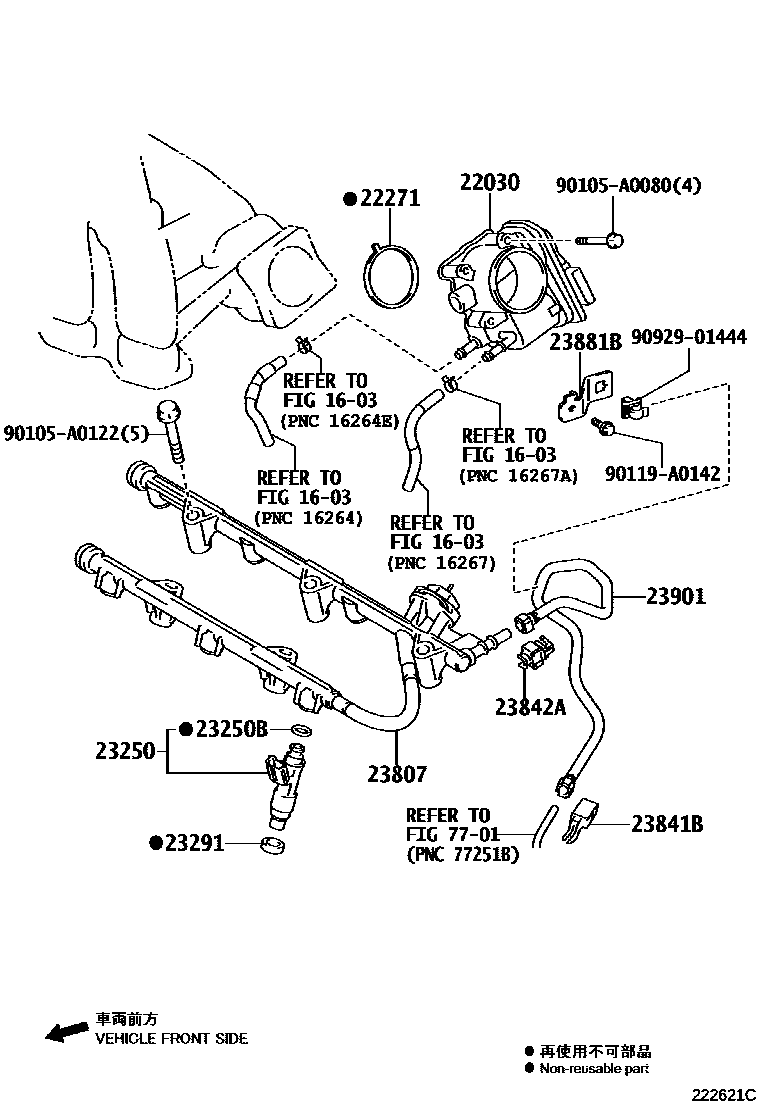

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GRFE..GSX40201210-201510

22271GASKET, THROTTLE BODY

main22271-0P020i2GRFE..GSX40201210-201510

23250INJECTOR ASSY, FUEL

main23209-0P010×6i2GRFE..GSX40201510

(L)

main23209-31090×6i2GRFE..GSX40201210-201510

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSX40201210-201510

(J)

main90301-A0037×6i2GRFE..GSX40201210-201510

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSX40201510-201804

23807PIPE SUB-ASSY, FUEL DELIVERY

main23870-0P011i2GRFE..GSX40201210-201510

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P070i2GRFE..GSX40201402-201510

main23841-31070i2GRFE..GSX40201210-201401

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0P060i2GRFE..GSX40201502-201510

main23842-31040i2GRFE..GSX40201210-201501

23881BBRACKET, FUEL HOSE

main23881-AD010i2GRFE..GSX40201210-201510

23901TUBE SUB-ASSY, FUEL

main23901-0P120i2GRFE..GSX40201510

7701

90105A0080

main90105-A0080

90105A0122

main90105-A0122

90119A0142

main90119-A0142

9092901444

main90929-01444

16 parts on this diagram · 1 diagram in section
