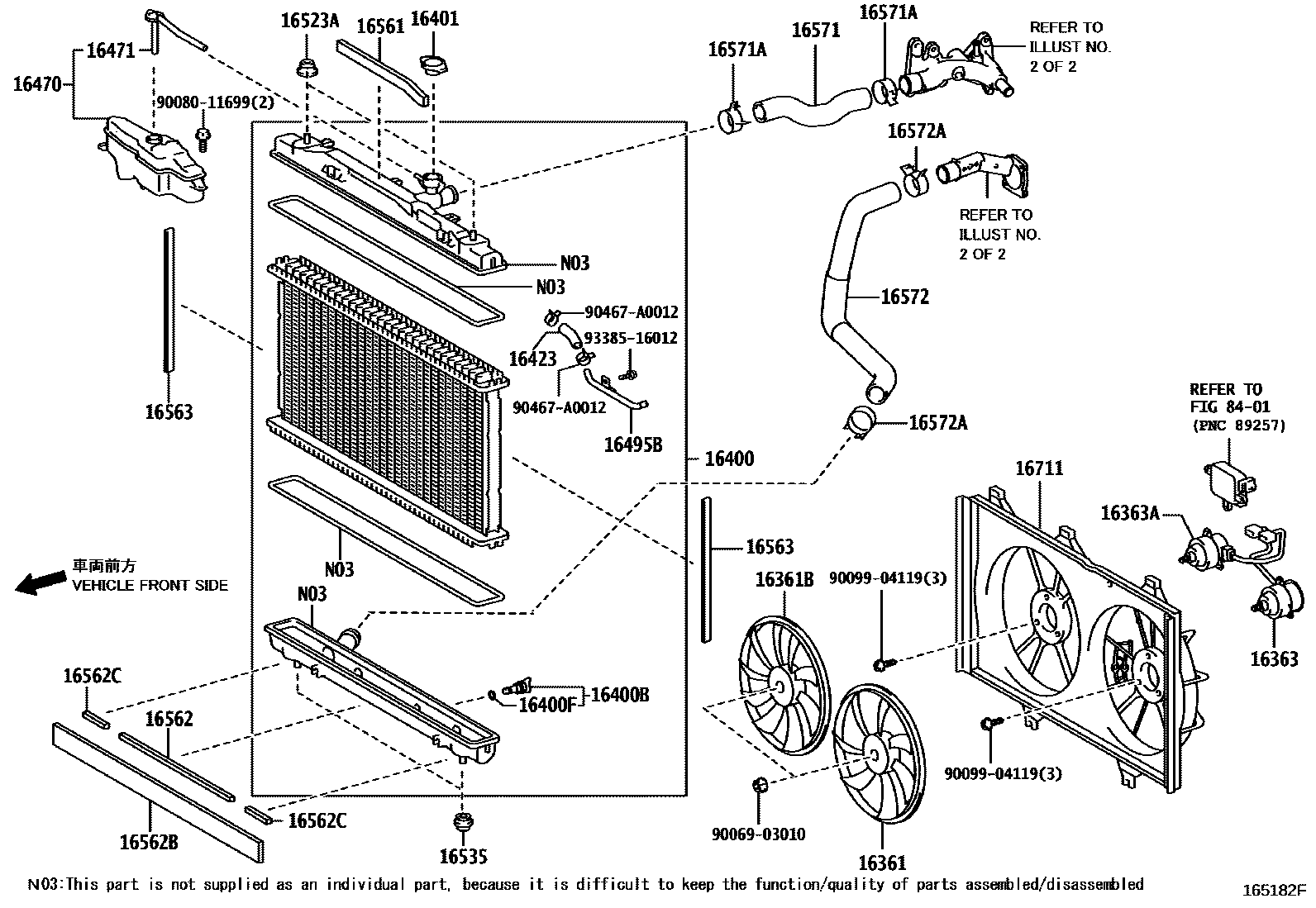

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16363-0P080
16363AMOTOR, COOLING FAN, NO.2
sub16363-0P290
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16423HOSE, RADIATOR TANK
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16495BPIPE (FOR ATM OIL COOLER)
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16562CSEAL, RADIATOR TO SUPPORT, NO.5
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16711SHROUD, FAN
8401
9006903010
9008011699
9009904119
main90099-04119
90467A0012
9338516012
30 parts on this diagram · 2 diagrams in section
