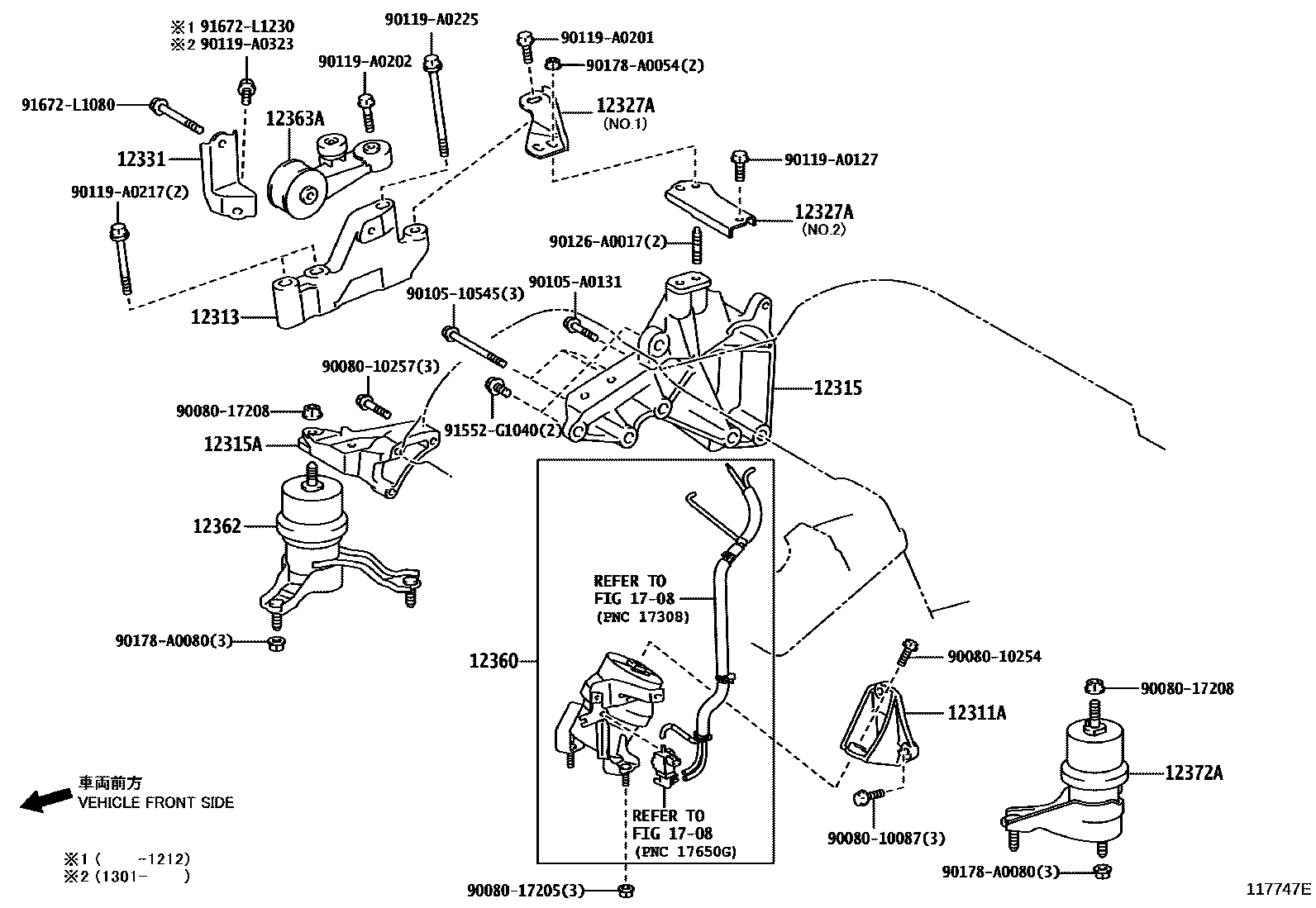

MOUNTING

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0P020i2GRFE..GSX40201210-201510

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0P060i2GRFE..GSX40201210-201510

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P031i2GRFE..GSX40201210-201510

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0P020i2GRFE..GSX40201210-201510

(L)

main12315-31100i2GRFE..GSX40201210-201510

(J)

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P020i2GRFE..GSX40201210-201510

NO.1

main12327-0P030i2GRFE..GSX40201210-201507

NO.2

sub12327-0P080

main12327-0P080i2GRFE..GSX40201508-201510

NO.2

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-0P020i2GRFE..GSX40201210-201510

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-0P130i2GRFE..GSX40201210-201510

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-0P090i2GRFE..GSX40201210-201510

12363AROD, ENGINE MOVING CONTROL

main12363-0P140i2GRFE..GSX40201210-201412

sub12363-0P141

main12363-0P141i2GRFE..GSX40201501-201510

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0P010i2GRFE..GSX40201210-201510

1708

9008010087

main90080-10087

9008010254

main90080-10254

9008010257

main90080-10257

9008017205

main90080-17205

9008017208

main90080-17208

9010510545

main90105-10545

90105A0131

main90105-A0131

90119A0127

main90119-A0127

90119A0201

main90119-A0201

90119A0202

main90119-A0202

90119A0217

main90119-A0217

90119A0225

main90119-A0225

90119A0323

main90119-A0323

90126A0017

main90126-A0017

90178A0054

main90178-A0054

90178A0080

main90178-A0080

91552G1040

main91552-G1040

91672L1080

main91672-L1080

91672L1230

main91672-L1230

30 parts on this diagram · 1 diagram in section
