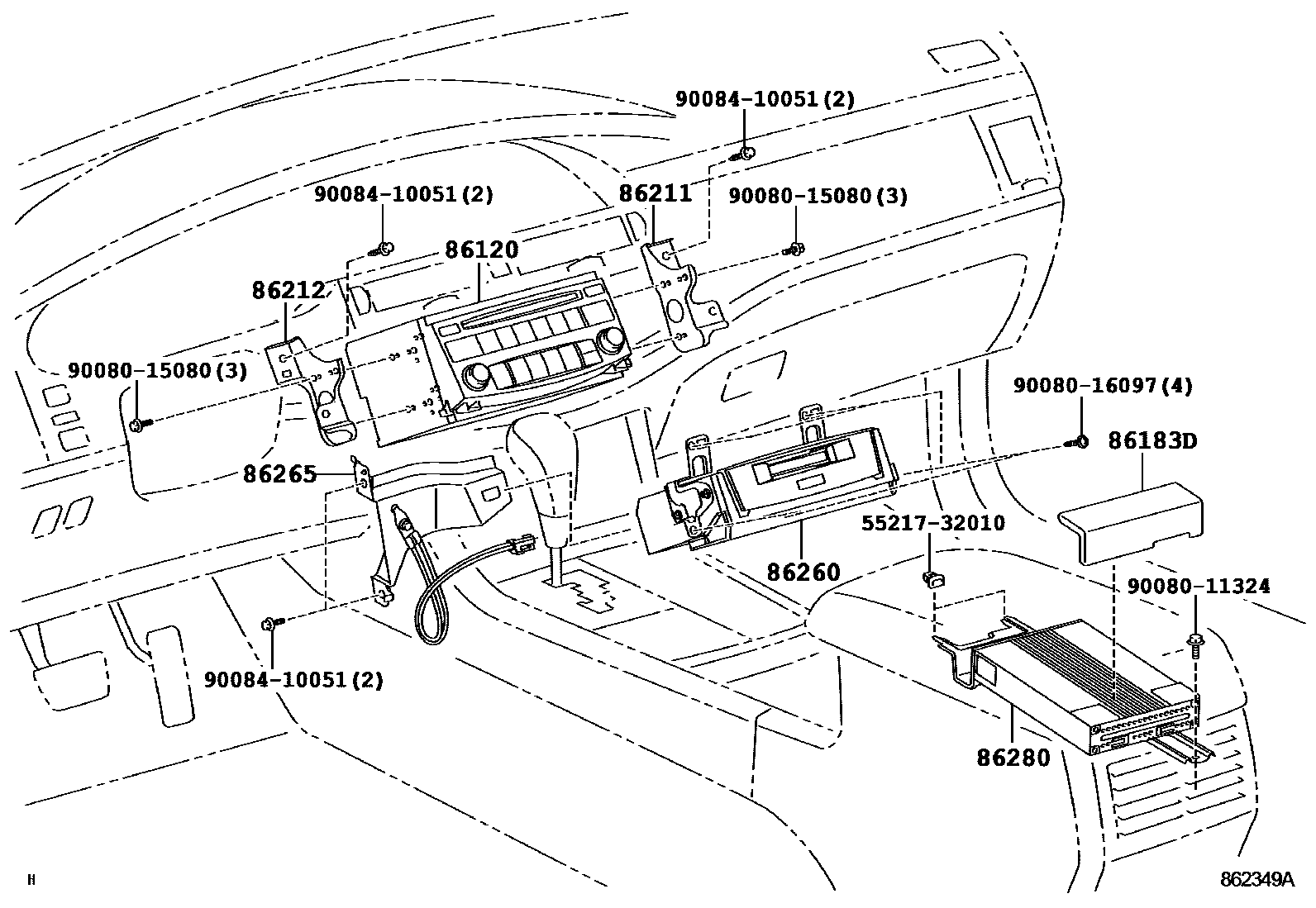

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PANASONIC,ID=A51853,TYPE A:REFER ILLUST.
FUJITSU TEN,ID=11855,AUDIO-W/O(AUDIO) & 9 SP MIDDLE EAST
sub86120-07141
FUJITSU TEN,ID=11855,EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
sub86120-07141
FUJITSU TEN,ID=11855,EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
FUJITSU TEN,ID=11855
FUJITSU TEN,ID=11855,AUDIO-W/O(AUDIO) & 9 SP MIDDLE EAST
MATSUSHITA,ID=A52801,TYPE A:REFER ILLUST.
86183DCOVER, AUDIO AMPLIFIER
IVORY,TRIM0#
GRAY,TRIM1#
DK. GRAY FLOOR CARPET,TRIM18
LT.GRAY,TRIM1#
LT.GRAY,TRIM17
86211BRACKET, RADIO, NO.1
EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
AUDIO-W/O(AUDIO) & 9 SP MIDDLE EAST
86212BRACKET, RADIO, NO.2
EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
AUDIO-W/O(AUDIO) & 9 SP MIDDLE EAST
86260TAPE PLAYER ASSY
AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE
AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE
86265BRACKET, TAPE PLAYER, NO.1
AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE
86280AMPLIFIER ASSY, STEREO COMPONENT
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9008011324
main90080-11324
9008015080
main90080-15080
9008016097
main90080-16097
9008410051
main90084-10051
12 parts on this diagram · 4 diagrams in section
