WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CABLE BOND 0012 1CONNECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-07470iGSX30..XL200501-200707

main82111-07480iGSX30..LIMD200501-200707

main82111-07490iGSX30..LIMD200501-200707

VSC-WITH(W/TRACTION CONTROL)

main82111-07690iGSX30..XL200707-201003

main82111-07700iGSX30..LIMD200707-201003

main82111-07710iGSX30..LIMD200707-201003

VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)

main82111-07740iGSX30..XL201005-201012

main82111-07741iGSX30..XL201012

main82111-07750iGSX30..LIMD201005-201012

main82111-07751iGSX30..LIMD201012

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-07240iGSX30200707-201003

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-07250iGSX30200707-201003

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-07470iGSX30201005

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-07480iGSX30201005

82824CONNECTOR, WIRING HARNESS

main82824-20110iGSX30200707-201003

NO.3

main82824-48020iGSX30200501-201003

NO.1

main82824-52080iGSX30200501-201003

NO.2

8401

9008011391

main90080-11391

9008011545

main90080-11545

9008011546

main90080-11546

9008017244

main90080-17244

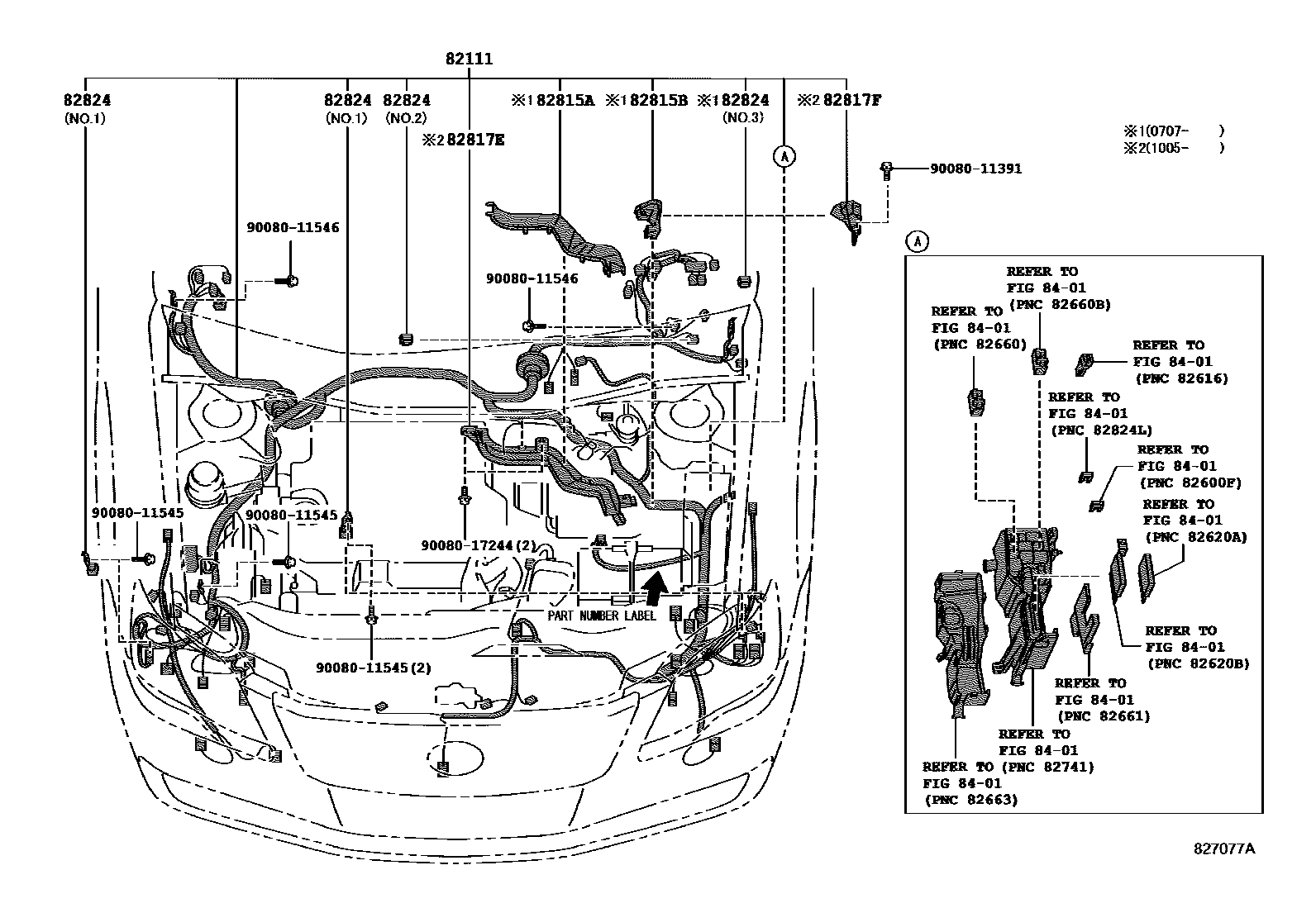

11 parts on this diagram · 12 diagrams in section
