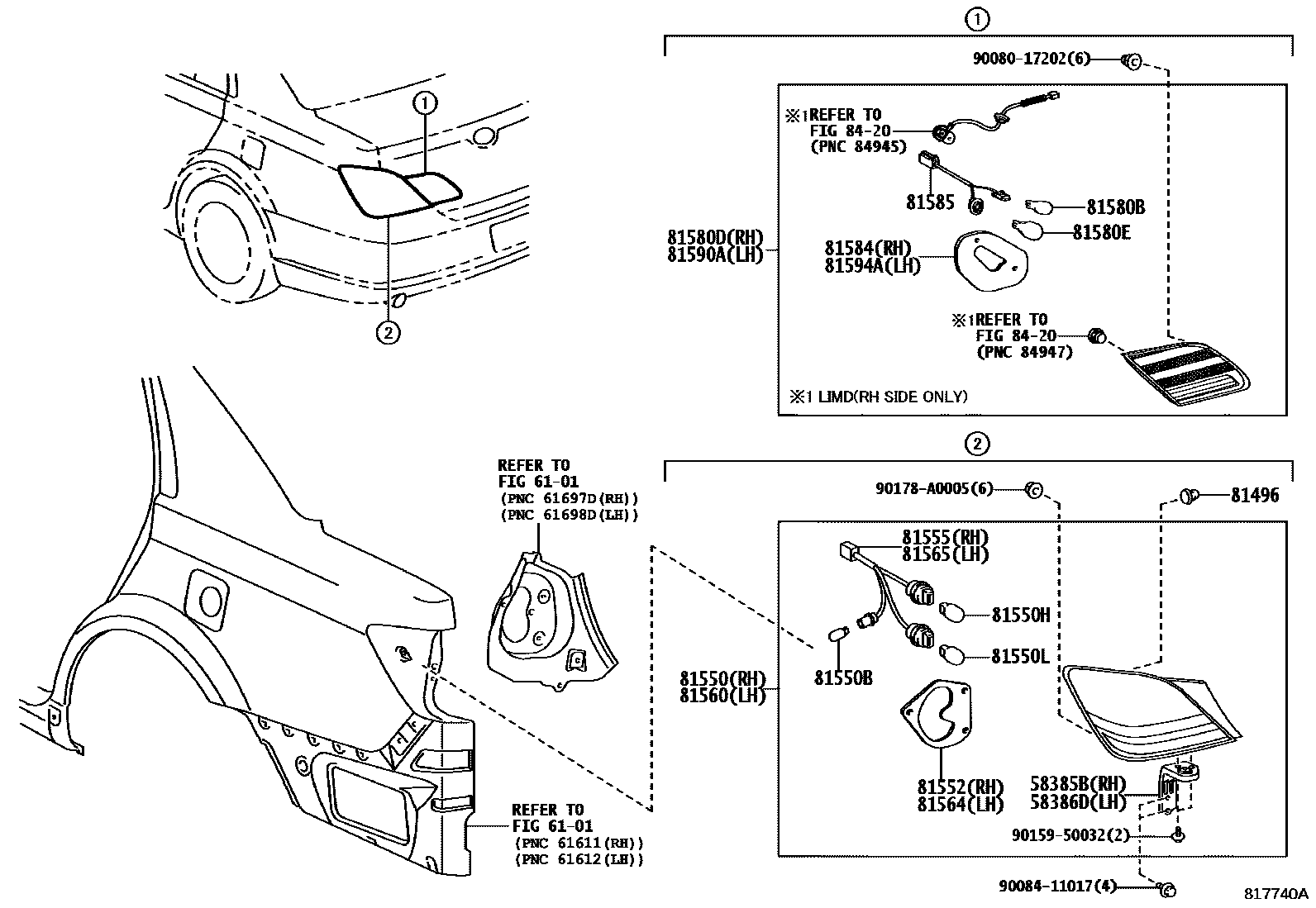

REAR COMBINATION LAMP
58385BBRACKET, REAR BUMPER COVER, RH
58386DBRACKET, REAR BUMPER COVER, LH
6101
81496GUIDE, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 3.8W
12V 5W
81550LBULB, REAR TURN SIGNAL LAMP
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580BBULB (FOR REAR LAMP)
12V 3.8W
81580DLAMP ASSY, REAR, RH
81580EBULB
81590ALAMP ASSY, REAR, LH
8420
9008017202
main90080-17202
9008411017
main90084-11017
9015950032
main90159-50032
90178A0005
main90178-A0005
25 parts on this diagram · 2 diagrams in section
