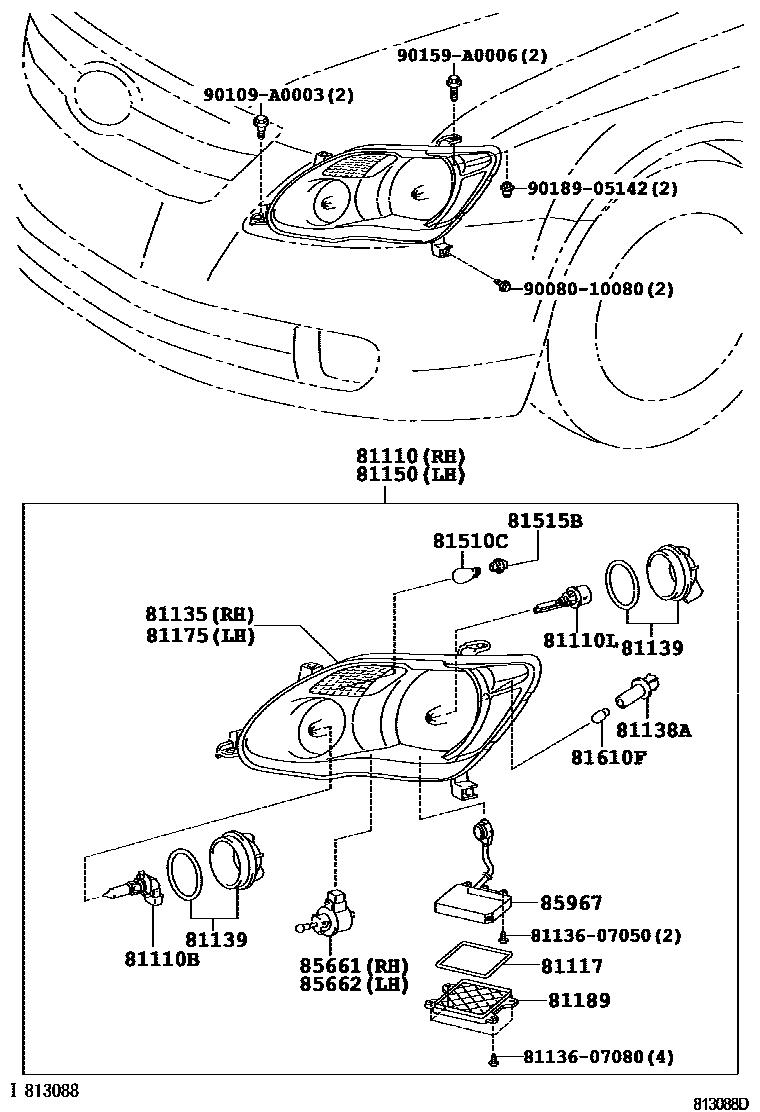

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-07080iGSX30200707-200906

sub81110-07083

main81110-07081iGSX30200906-200908

main81110-07082iGSX30200909-201003

sub81110-07083

main81110-AC060iGSX30200501-200707

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iGSX30200501-200707

12V 65W

main90981-13046×2iGSX30201005

12V65W(SAE),60W(ECE)

main90981-13066×2iGSX30200707-201003

12V 65W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20002×2iGSX30200501-200707

85V 35W

main90981-20012×2iGSX30200707-201003

45V 35W

main90981-20027×2iGSX30201005-201205

45V 35W

81117PACKING, HEADLAMP HOUSING

main81117-07050×2iGSX30200501-200707

main81117-07100×2iGSX30201207-201210

main90075-23002×2iGSX30201005-201207

main90075-68007×2iGSX30200707-201003

81135UNIT ASSY, HEADLAMP, RH

main81130-AC060iGSX30200501-200707

main81145-07080iGSX30200707-200906

sub81145-07083

main81145-07081iGSX30200906-200909

main81145-07082iGSX30200909-201003

sub81145-07083

main81145-07100iGSX30201005

81138ASOCKET & WIRE, HEADLAMP

main81138-22680×2iGSX30200501-200707

81139COVER, HEADLAMP SOCKET

main81139-AE020×2iGSX30201005

81150HEADLAMP ASSY, LH

main81150-07080iGSX30200707-200906

sub81150-07083

main81150-07081iGSX30200906-200908

main81150-07082iGSX30200909-201003

sub81150-07083

main81150-AC060iGSX30200501-200707

81175UNIT ASSY, HEADLAMP, LH

main81170-AC060iGSX30200501-200707

main81185-07080iGSX30200707-200906

sub81185-07083

main81185-07081iGSX30200906-200909

main81185-07082iGSX30200909-201003

sub81185-07083

main81185-07100iGSX30201005

81189COVER, HEADLAMP

main81189-07050×2iGSX30200501-200707

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-AF002×2iGSX30200501-200707

12V 28/8W

main90981-AF005×2iGSX30201005

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-AE010×2iGSX30200707-201003

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4iGSX30201005

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48030iGSX30200501-200707

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48030iGSX30200501-200707

85967COMPUTER, LIGHT CONTROL

main85967-06020×2iGSX30200707-201003

main85967-07010×2iGSX30200501-200707

main85967-08020×2iGSX30201005

8113607050PROTECTOR, HEADLAMP, NO.1 RH

main81136-07050

8113607080PROTECTOR, HEADLAMP, NO.1 RH

main81136-07080

9008010080

main90080-10080

90109A0003

main90109-A0003

90159A0006

main90159-A0006

9018905142

main90189-05142

22 parts on this diagram · 2 diagrams in section
