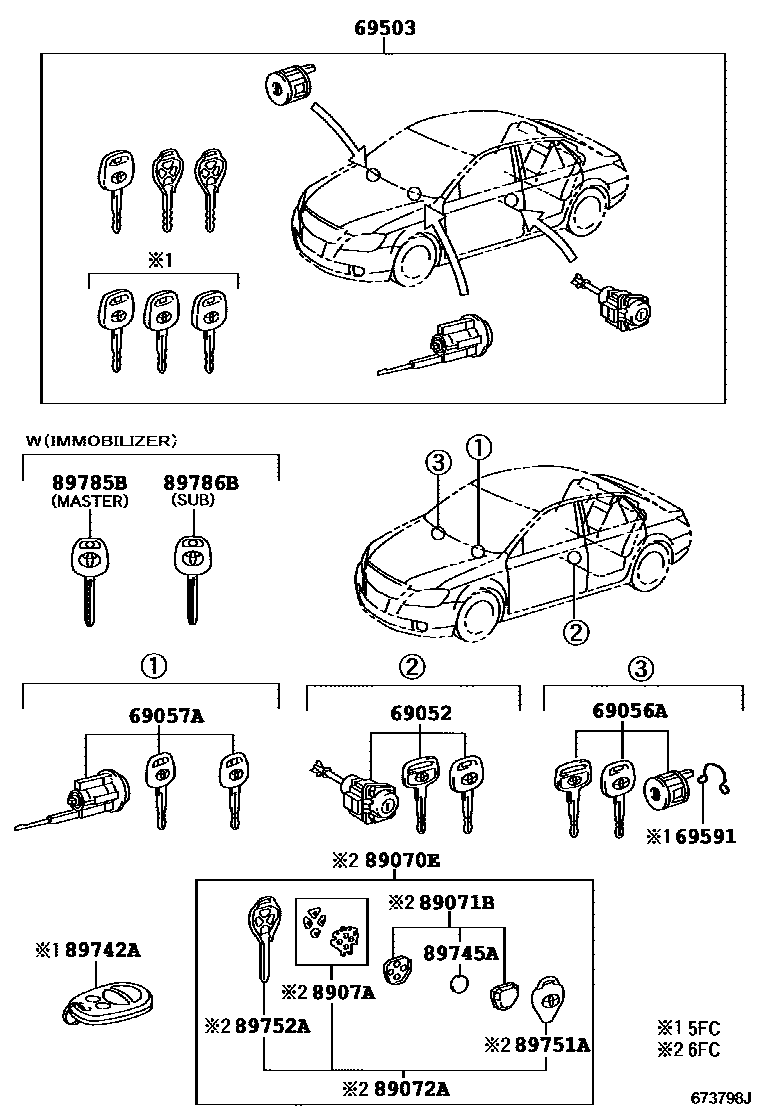

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-07030iGSX30..XL200707-201003

main69052-AC010iGSX30..XL200501-200707

main69052-AC020iGSX30..LIMD200501-200707

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-07030iGSX30..XL201005

main69056-AC010iGSX30..LIMD201005

main69056-AE010iGSX30..XL200501-200707

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-07040iGSX30..XL200707-201003

main69057-AA010iGSX30..XL200501-200707

69503CYLINDER SET, LOCK

main69005-07010iGSX30..XL200707-201003

main69005-07020iGSX30..XL201005

main69005-07030iGSX30..LIMD201005

main69005-AC010iGSX30..XL200501-200707

main69005-AC020iGSX30..LIMD200707-201003

69591RING, REAR SEAT ARMREST DOOR KEY CYLINDER

main69591-41010iGSX30200501-200707

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-07050iGSX30..XL200707-201003

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-07020×2iGSX30..XL200707-200907

main89071-07021×2iGSX30..XL201005

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02100iGSX30..XL200707-201003

8907ASWITCH SET, TRANSMITTER

main8907A-33010×2iGSX30..XL200707-201003

89742ATRANSMITTER, DOOR CONTROL

main89742-AC080×2iGSX30..XL200501-200707

89745ABATTERY, TRANSMITTER

main89745-02040iGSX30..XL200707-201003

main89745-52020supersedes 89745-52020iGSX30..LIMD200501-200707

89751ACOVER, TRANSMITTER HOUSING

main89751-28070×2iGSX30..XL201005

89752ACASE, TRANSMITTER HOUSING

main89752-02070iGSX30..XL200707-201003

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020iGSX30..XL200501-200707

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020iGSX30..XL200501-200707

BLANK KEY

15 parts on this diagram · 3 diagrams in section
