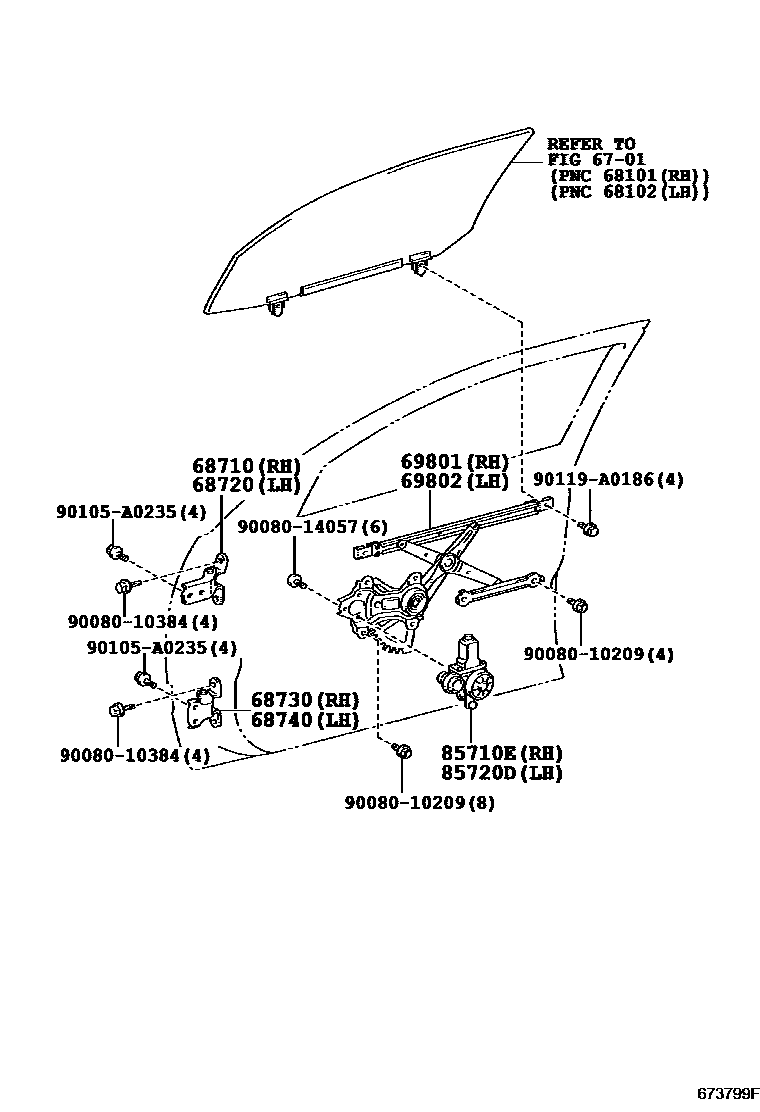

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AA020iGSX30200501-200707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-AA020iGSX30200501-200707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iGSX30200501-200707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iGSX30200501-200707

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AC020iGSX30200501-200707

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AC020iGSX30200501-200707

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E010iGSX30200501-200707

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AE020iGSX30200501-200707

9008010209

main90080-10209

9008010384

main90080-10384

9008014057

main90080-14057

90105A0235

main90105-A0235

90119A0186

main90119-A0186

14 parts on this diagram · 1 diagram in section
