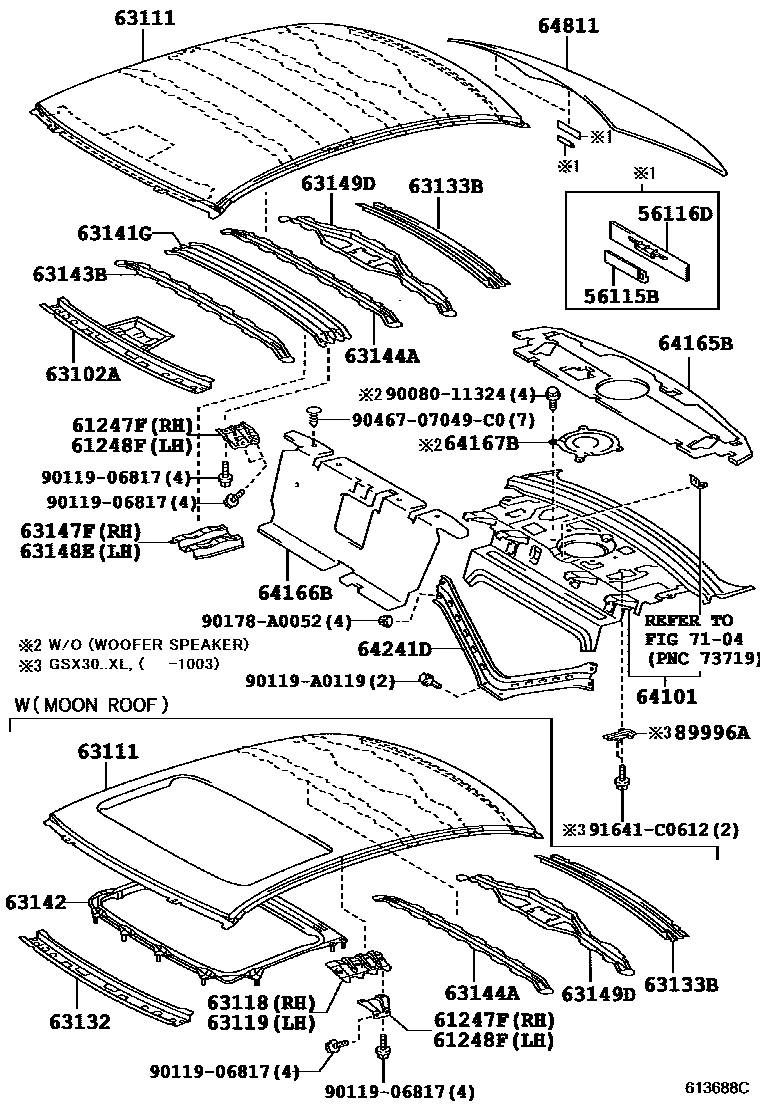

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
MOON ROOF-WITH
61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
MOON ROOF-WITH(TILT & SLIDE)
63118SUPPORT, ROOF PANEL, RH
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
63119SUPPORT, ROOF PANEL, LH
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
63132PANEL, WINDSHIELD HEADER, INNER
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
MOON ROOF-WITH
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
63149DREINFORCEMENT, ROOF PANEL, NO.8
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
SUN SHADE-WITH/PACKAGE TRAY (POWER)
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
64167BCOVER, UPPER BACK PANEL HOLE, NO.3
EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST
64241DPANEL, ROOM PARTITION
64811GLASS, BACK WINDOW
*EHTT,T=3.5,GREEN
7104
89996ABRACKET, W/O OSCILLATOR ELECTRICAL KEY
9008011324
main90080-11324
9011906817
main90119-06817
90119A0119
main90119-A0119
90178A0052
main90178-A0052
9046707049C0
main90467-07049C0
91641C0612
main91641-C0612
31 parts on this diagram · 2 diagrams in section
