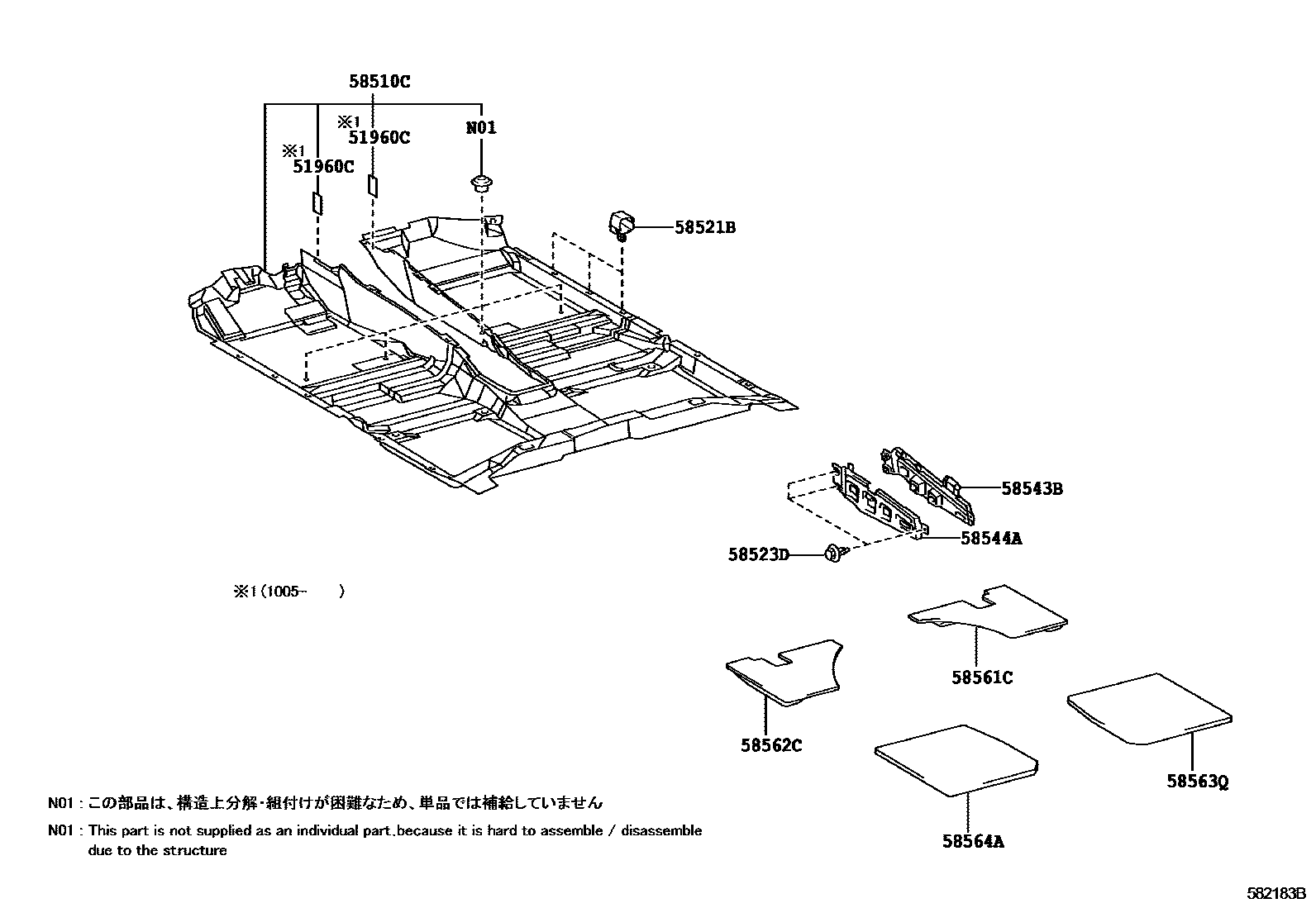

MAT & CARPET
51960CHOOK ASSY, FRONT
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
DK. GRAY FLOOR CARPET,TRIM18
LT.GRAY,TRIM17
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
10 parts on this diagram · 1 diagram in section
