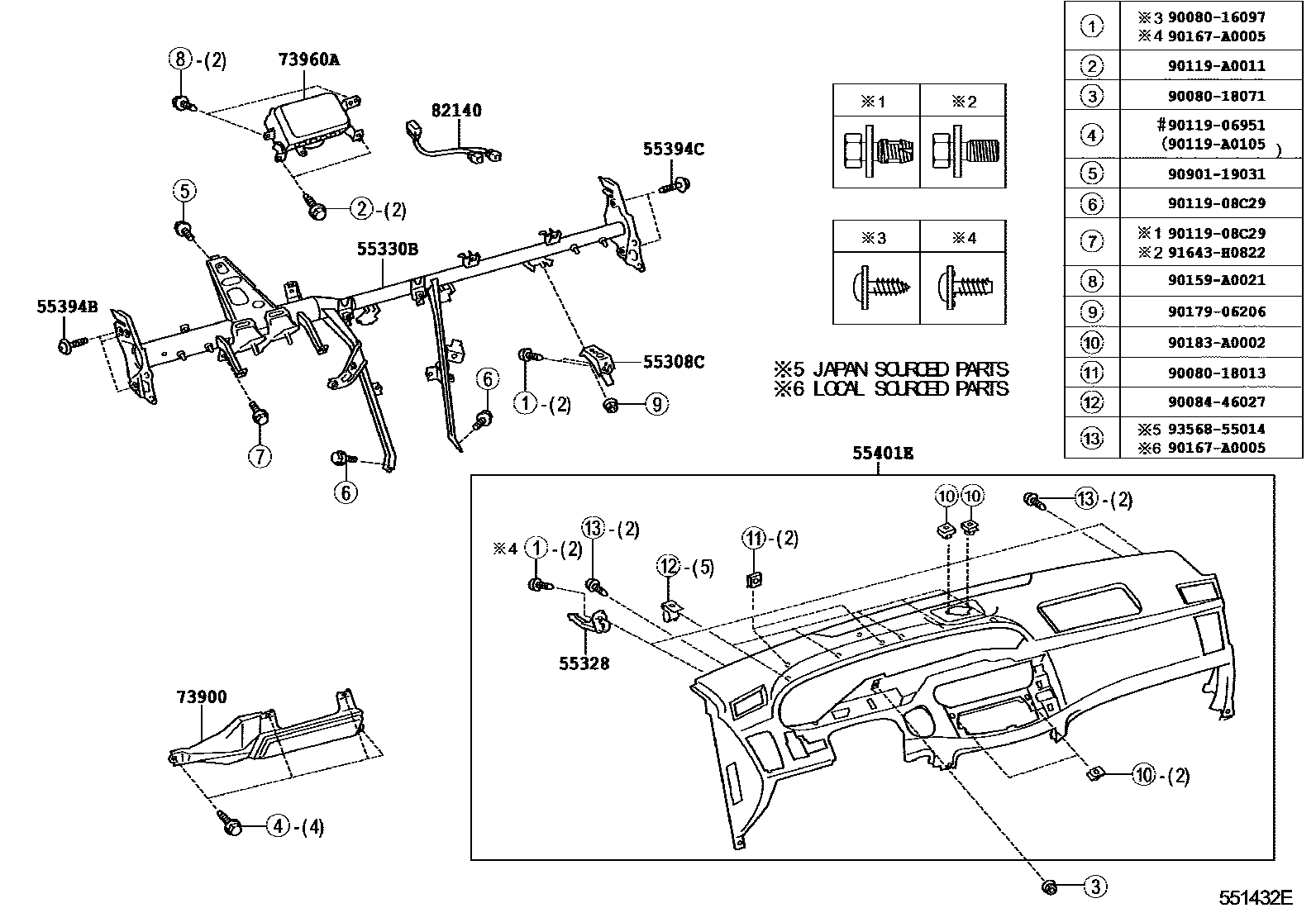

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-07010iGSX30200501-201003

55328PIN, INSTRUMENT PANEL, NO.1

main55328-48040iGSX30200501-201003

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-07030iGSX30200501-200906

sub55330-07031

main55330-07031iGSX30200906-201003

main55330-07040iGSX30201005-201009

sub55330-07041

main55330-07041iGSX30201010

55394BBOLT, INSTRUMENT PANEL

main55394-30020iGSX30200501-200602

sub55394-30021

main55394-30021iGSX30200603-201003

55394CBOLT, INSTRUMENT PANEL

main55394-33041iGSX30200605-201003

main55394-51010iGSX30200501-200602

sub55394-51011

main55394-51011iGSX30200603-200604

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-07060-B1iGSX30..LIMD200707-201003

LT.GRAY,TRIM17

main55401-07060-B1iGSX30..LIMD200501-200707

LT.GRAY,TRIM1#

main55401-07060-B2iGSX30..LIMD200707-201003

DK.GRAY,TRIM18

main55401-07060-B3iGSX30..XL200501-201003

GRAY,TRIM1#

main55401-07060-E1iGSX30200501-201003

SANDAL WOOD,TRIM0#

main55401-07070-C0iGSX30201005-201210

IVORY,TRIM0#

main55401-07070-C1iGSX30201005-201210

LT.GRAY,TRIM1#

main55401-07070-C2iGSX30..LIMD201005-201210

BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-07010-A0iGSX30200501-200612

IVORY,TRIM0#

sub73900-07011

main73900-07010-B0iGSX30..LIMD200501-200612

LT.GRAY,TRIM1#

sub73900-07011

main73900-07010-B0iGSX30..XL200501-200612

LT.GRAY,TRIM17

sub73900-07011

main73900-07010-B1iGSX30..XL200501-200612

GRAY,TRIM16

sub73900-07011

main73900-07011-A0iGSX30200701-201210

IVORY,TRIM0#

main73900-07011-B0iGSX30200701-201210

LT.GRAY,TRIM1#

main73900-07011-B0iGSX30..LIMD200707-201003

LT.GRAY,TRIM17

main73900-07011-B1iGSX30..XL200701-201003

GRAY,TRIM1#

main73900-07011-B2iGSX30..LIMD200707-201003

DK.GRAY,TRIM18

main73900-07011-C0iGSX30..LIMD201005-201210

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07060iGSX30200501-201003

sub73960-07061

main73960-07070iGSX30201005

sub73960-07071

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0N010iGSX30201010

main82140-30020iGSX30200501-201009

9008016097

main90080-16097

9008018013

main90080-18013

9008018071

main90080-18071

9008446027

main90084-46027

9011906951

main90119-06951

9011908C29

main90119-08C29

90119A0011

main90119-A0011

90119A0105

main90119-A0105

90159A0021

main90159-A0021

90167A0005

main90167-A0005

9017906206

main90179-06206

90183A0002

main90183-A0002

9090119031

main90901-19031

91643H0822

main91643-H0822

9356855014

main93568-55014

24 parts on this diagram · 8 diagrams in section
