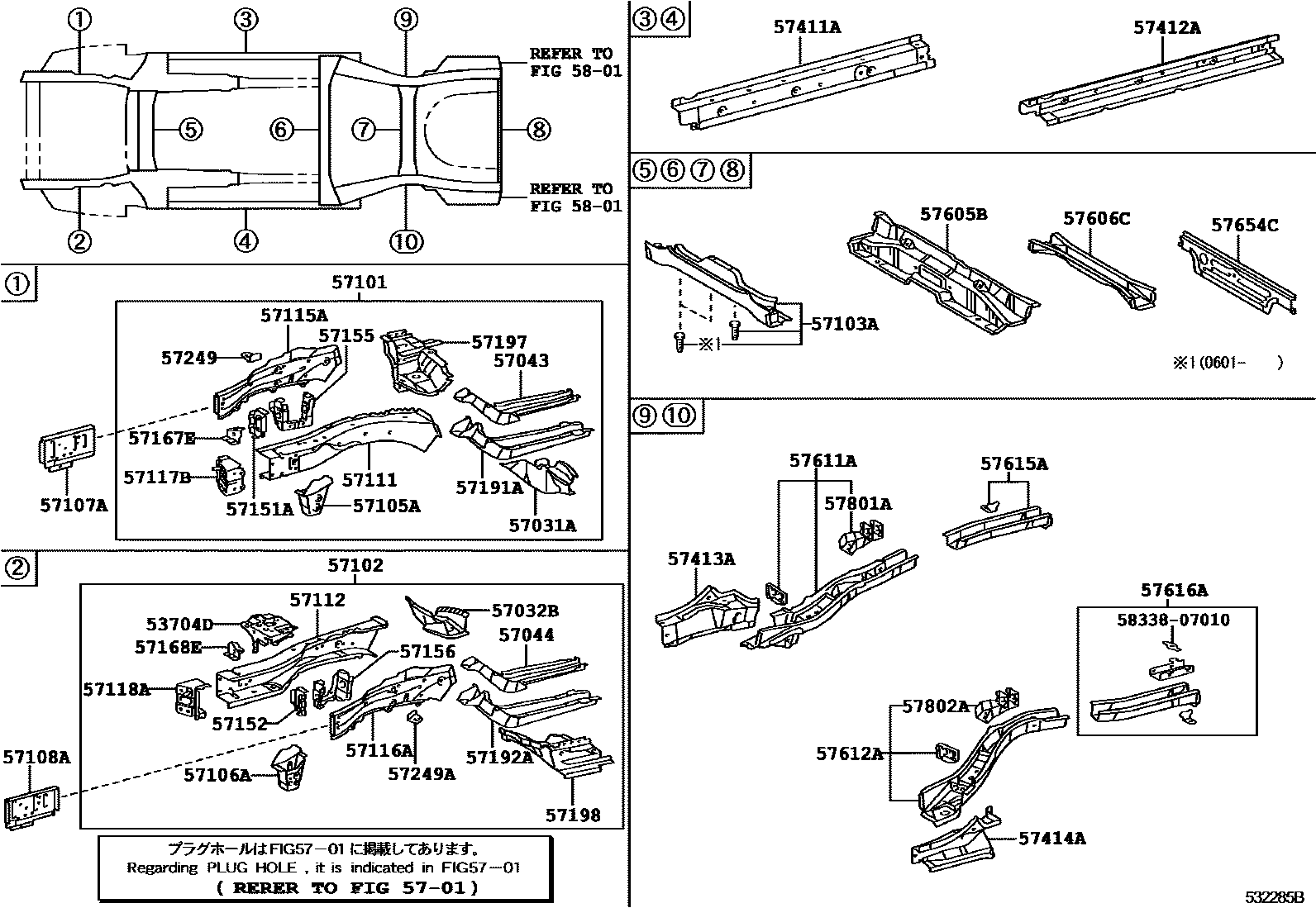

FLOOR SIDE MEMBER

0001 1 0002 1

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-07011iGSX30200501-200508

sub53704-07012

main53704-07012iGSX30200508-201003

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-06010iGSX30200501-201003

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-06010iGSX30200501-201003

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06010iGSX30200501-201003

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06010iGSX30200501-201003

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06050iGSX30200501-201103

sub57101-06051

sub90333-30008

main57101-06051iGSX30201103-201210

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-07020iGSX30200501-201009

sub57102-07021

main57102-07021iGSX30201010-201103

sub57102-07022

sub90333-30008

main57102-07022iGSX30201103-201210

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-07010iGSX30200501-200512

sub57103-07011

main57103-07011iGSX30200601-201210

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-06010iGSX30200501-201003

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-06010iGSX30200501-201003

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06010iGSX30200501-200611

sub57107-06011

main57107-06011iGSX30200612-201210

sub57107-33031

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06010iGSX30200501-200611

sub57108-06011

main57108-06011iGSX30200612-201210

57111MEMBER, FRONT SIDE, RH

main57111-06020iGSX30200501-201103

sub57111-06021

sub90333-30008

main57111-06021iGSX30201103

57112MEMBER, FRONT SIDE, LH

main57112-06030iGSX30200501-201103

sub57112-06031

sub90333-30008

main57112-06031iGSX30201103

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06030iGSX30200501-201003

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06020iGSX30200501-201003

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06030iGSX30200501-201003

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06030iGSX30200605-201003

(L)

main57118-06030iGSX30200501-200605

main57118-33050iGSX30200605-201003

(J)

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-06010iGSX30200501-201003

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-06010iGSX30200501-201003

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-06010iGSX30200501-201003

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-06010iGSX30200501-201009

sub57156-06011

main57156-06011iGSX30201010

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-06010iGSX30200501-201003

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-06010iGSX30200501-201003

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-06010iGSX30200501-201003

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-06010iGSX30200501-201003

57197BOX, TORQUE, FRONT RH

main57077-06040iGSX30200501-201003

57198BOX, TORQUE, FRONT LH

main57078-06040iGSX30200501-201003

sub57078-06110

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-06010iGSX30200501-201003

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-06010iGSX30200501-201003

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-07040iGSX30200501-201210

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-07040iGSX30200501-201210

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main58027-07010iGSX30200501-201003

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main58028-07010iGSX30200501-201003

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-07020iGSX30200501-200602

sub57605-07021

sub90333-30008

main57605-07021iGSX30200602-201003

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06110iGSX30200601-201003

sub57606-33100

main57606-07010iGSX30200501-200512

sub57606-06110

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-06906iGSX30200501-200602

sub57601-06902

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-06906iGSX30200501-200602

sub57602-06901

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06908iGSX30200501-200602

sub57615-07902

main57615-07902iGSX30200602-201003

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06911iGSX30200501-200602

sub57616-07907

main57616-07907iGSX30200602-201003

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-07010iGSX30200501-201003

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-06040iGSX30200808-201003

main57801-32020iGSX30200501-200807

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-06040iGSX30200808-201003

main57802-32020iGSX30200501-200808

5801

5833807010FRAME, REAR FLOOR PANEL SET CORNER, LH

main58338-07010

45 parts on this diagram · 2 diagrams in section
