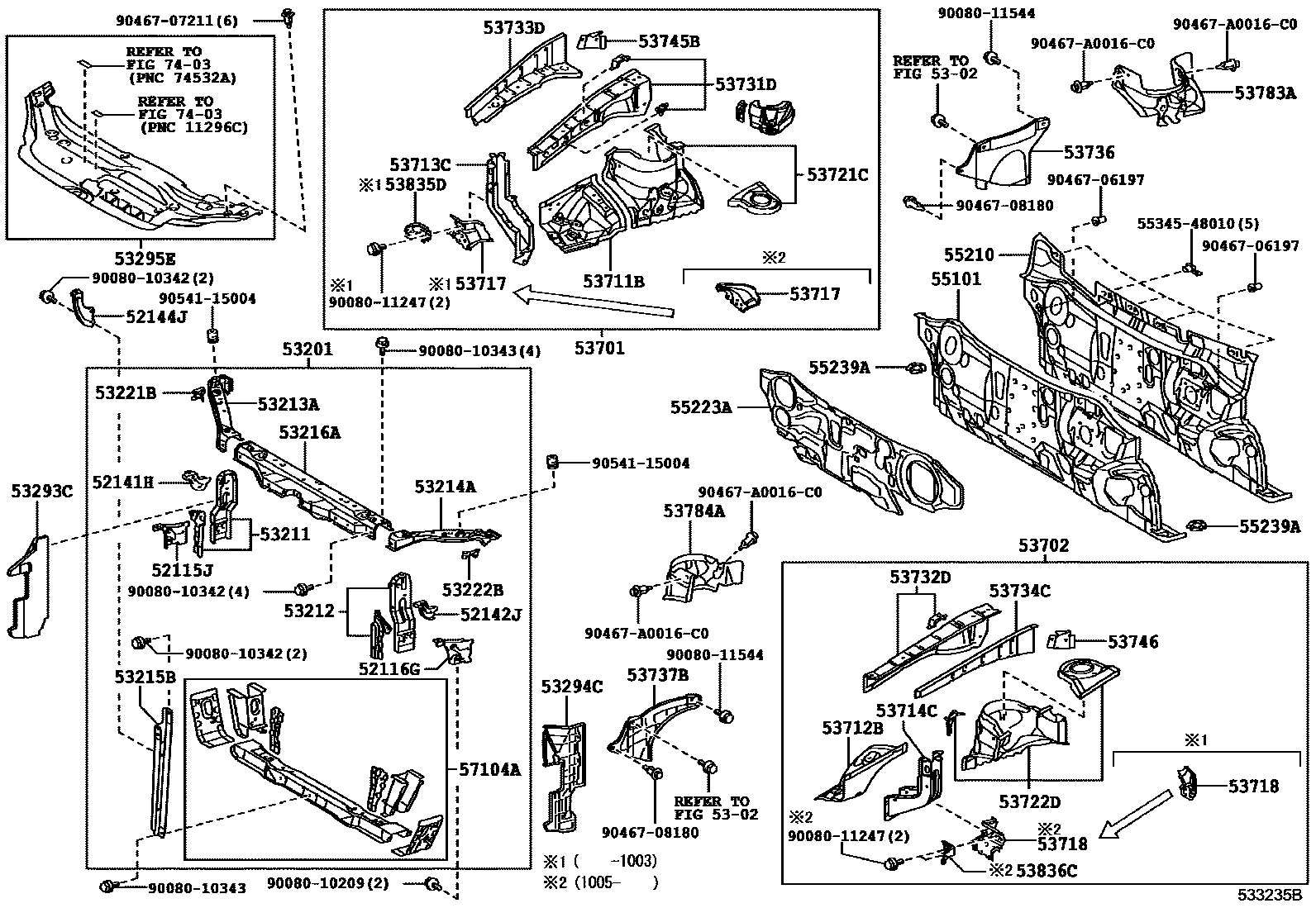

FRONT FENDER APRON & DASH PANEL

52115JSUPPORT, FRONT BUMPER SIDE, RH

main52115-07010iGSX30200501-201003

main52130-07010iGSX30201005

52116GSUPPORT, FRONT BUMPER SIDE, LH

main52116-07010iGSX30200501-201003

main52140-07010iGSX30201005

52141HARM, FRONT BUMPER, UPPER RH

main52141-07010iGSX30200501-201003

main52141-07020iGSX30201005

52142JARM, FRONT BUMPER, UPPER LH

main52142-07010iGSX30200501-201003

main52142-07020iGSX30201005

52144JSTAY, FRONT BUMPER, CENTER

main52144-07010iGSX30200501-201003

main52144-07020iGSX30201005

5302

53201SUPPORT SUB-ASSY, RADIATOR

main53210-07030iGSX30200501-201003

main53210-07040iGSX30201005-201008

sub53210-07041

main53210-07041iGSX30201009-201210

53211SUPPORT, RADIATOR, RH

main53211-07901iGSX30200501-201003

53212SUPPORT, RADIATOR, LH

main53212-07901iGSX30200501-201003

53213ASUPPORT, RADIATOR, UPPER RH

main53213-07010iGSX30200501-201003

53214ASUPPORT, RADIATOR, UPPER LH

main53214-07010iGSX30200501-201003

53215BSUPPORT, HOOD LOCK

main53215-07030iGSX30200501-200702

sub53215-07031

main53215-07031iGSX30200703-201003

53216ASUPPORT, RADIATOR, UPPER

main53216-07040iGSX30200501-201003

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-07010iGSX30200501-201003

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-07010iGSX30200501-201003

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-07020iGSX30200501-200707

main53293-07030iGSX30200707-201003

main53293-07040iGSX30201005

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-07020iGSX30200501-200707

main53294-07030iGSX30200707-201003

main53294-07040iGSX30201005

53295ESEAL, COOL AIR INTAKE DUCT

main53295-07010iGSX30200501-201003

main53295-07020iGSX30201005

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-07020iGSX30200501-201003

main53701-07030iGSX30201005-201210

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-07020iGSX30200501-201003

main53702-07030iGSX30201005-201210

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06110iGSX30200606-201003

main53711-07020iGSX30200501-200605

sub53711-06110

53712BAPRON, FRONT FENDER, FRONT LH

main53712-07020iGSX30200501-201003

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-07010iGSX30200501-201003

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-07010iGSX30200501-201003

53717PLATE, FENDER APRON, RH

main53717-07020iGSX30200501-201003

main53717-07030iGSX30201005

53718PLATE, FENDER APRON, LH

main53718-07020iGSX30200501-201003

main53718-07030iGSX30201005

53721CRETAINER, FENDER APRON, RH

main53721-07903iGSX30200501-201003

53722DRETAINER, FENDER APRON, LH

main53722-07903iGSX30200501-200504

sub53722-07904

main53722-07904iGSX30200504-201003

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-07901iGSX30200501-200510

sub53731-07902

main53731-07902iGSX30200510-201003

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-07901iGSX30200501-200510

sub53732-07902

main53732-07902iGSX30200510-201003

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-07020iGSX30200501-201003

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-07020iGSX30200501-201003

53736SEAL, FRONT FENDER APRON, RH

main53736-07020iGSX30200501-200504

sub53736-07021

main53736-07021iGSX30200505-201003

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040iGSX30200501-201003

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-07010iGSX30200501-201003

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-07010iGSX30200501-201003

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-07010iGSX30200501-201003

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-07010iGSX30200501-201003

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-07010iGSX30201005-201210

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-07010iGSX30201005-201210

55101PANEL SUB-ASSY, DASH

main55101-07080iGSX30200501-200707

main55101-07090iGSX30200707-201210

55210INSULATOR ASSY, DASH PANEL

main55210-07030iGSX30200501-200702

sub55210-07031

main55210-07031iGSX30200703-200912

sub55210-07032

main55210-07032iGSX30201001-201003

55223AINSULATOR, DASH PANEL, OUTER

main55223-06080iGSX30200707-201003

main55223-07030iGSX30200501-200707

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06020iGSX30200501-201210

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-07020iGSX30200501-200611

sub57104-07021

main57104-07021iGSX30200612-201008

sub57104-07022

main57104-07022iGSX30201009

7403

5534548010GARNISH, GLOVE COMPARTMENT, UPPER

main55345-48010

9008010209

main90080-10209

9008010342

main90080-10342

9008010343

main90080-10343

9008011247

main90080-11247

9008011544

main90080-11544

9046706197

main90467-06197

9046707211

main90467-07211

9046708180

main90467-08180

90467A0016C0

main90467-A0016C0

9054115004

main90541-15004

57 parts on this diagram · 1 diagram in section
