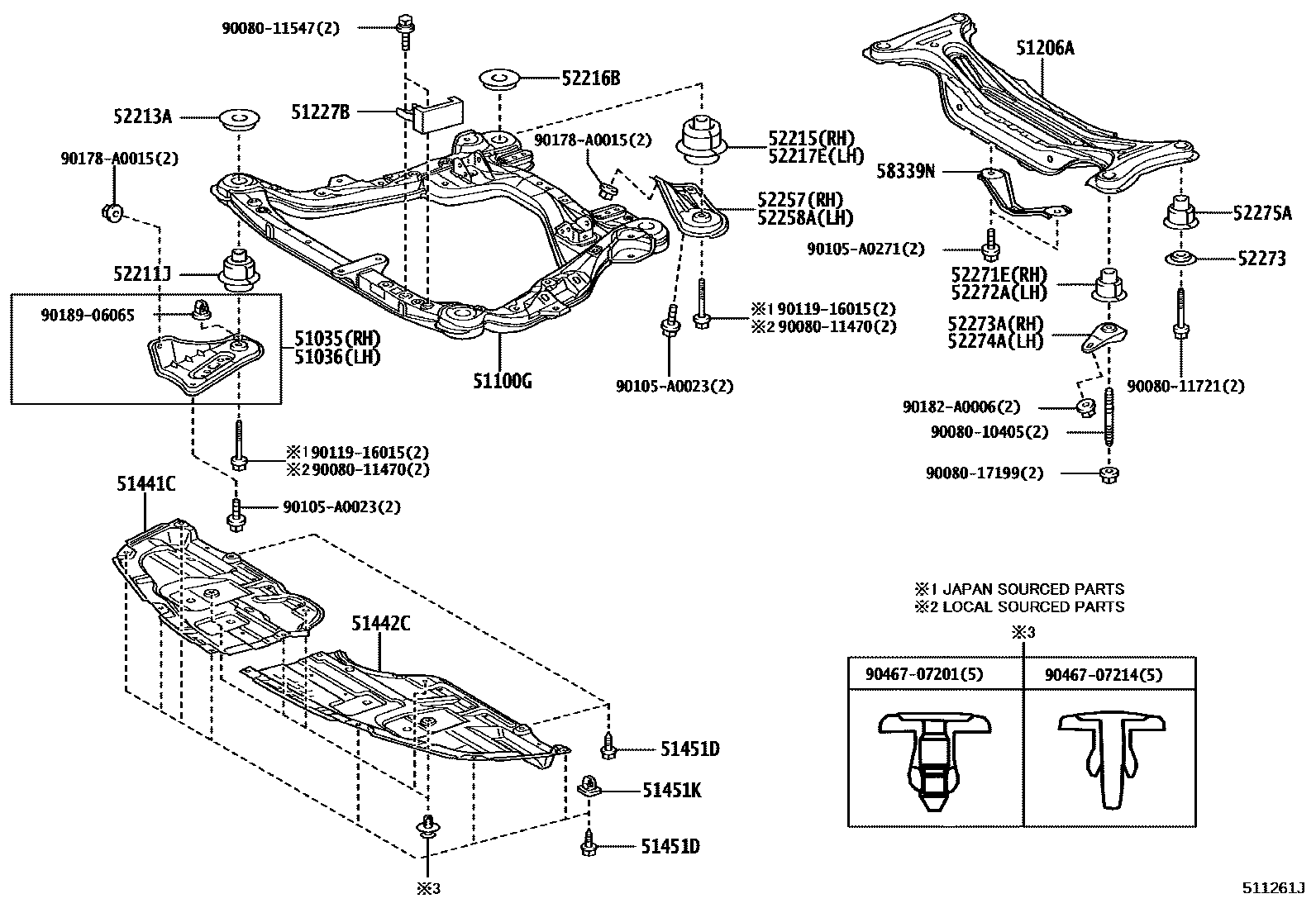

SUSPENSION CROSSMEMBER & UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iGSX30200501-201003

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iGSX30200501-201003

51100GFRAME ASSY, FRONT

main51100-06050iGSX30200501-201103

sub51100-07030

main51100-07030iGSX30201103

sub51100-07031

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06100iGSX30200501-200710

sub51206-06103

main51206-06101iGSX30200710-200807

sub51206-06102

main51206-06102iGSX30200808-201007

sub51206-06103

main51206-06103iGSX30201008-201204

main51206-06104iGSX30201204

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iGSX30200501-201003

51441CCOVER, ENGINE UNDER, RH

main51441-07010iGSX30200501-200609

sub51441-07011¥8,500

main51441-07011iGSX30¥8,500200610-201003

main51441-07020iGSX30201005

51442CCOVER, ENGINE UNDER, LH

main51442-07010iGSX30¥9,800200501-201003

main51442-07020iGSX30201005

51451DSCREW, NO.1

main90159-60525iGSX30¥110200601-201210

main90159-A0010iGSX30200501-200512

51451KGROMMET, SCREW, NO.1

main90189-06193iGSX30¥80200501-201003

main90467-09230iGSX30¥80200604-200808

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06080iGSX30200606-201003

main52211-07030iGSX30200501-200606

sub52211-06080

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06080iGSX30200602-201003

main52213-07030iGSX30200501-200602

sub52213-06080

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-07030iGSX30200501-201003

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-07020iGSX30200501-201003

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-07010iGSX30200501-201003

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-07010iGSX30200501-201003

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-07010iGSX30200501-201003

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06050iGSX30200501-201103

sub52271-06051

main52271-06051iGSX30201104

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06040iGSX30200501-201103

sub52272-06041

main52272-06041iGSX30201104

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iGSX30200501-201003

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-06010iGSX30200602-201003

main52203-33020iGSX30¥2,690200501-200602

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-06010iGSX30200602-201003

main52204-33020iGSX30¥2,690200501-200602

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iGSX30200501-201103

sub52275-06051

main52275-06051iGSX30201104

58339NBRACKET, JACK UP

main58339-07010iGSX30200501-200707

sub58339-07011

main58339-07011iGSX30200707-201003

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

90105A0023

main90105-A0023

90105A0271

main90105-A0271

9011916015

main90119-16015¥600

90178A0015

main90178-A0015

90182A0006

main90182-A0006

9018906065

main90189-06065¥80

9046707201

main90467-07201¥100

9046707214

main90467-07214¥70

36 parts on this diagram · 1 diagram in section
