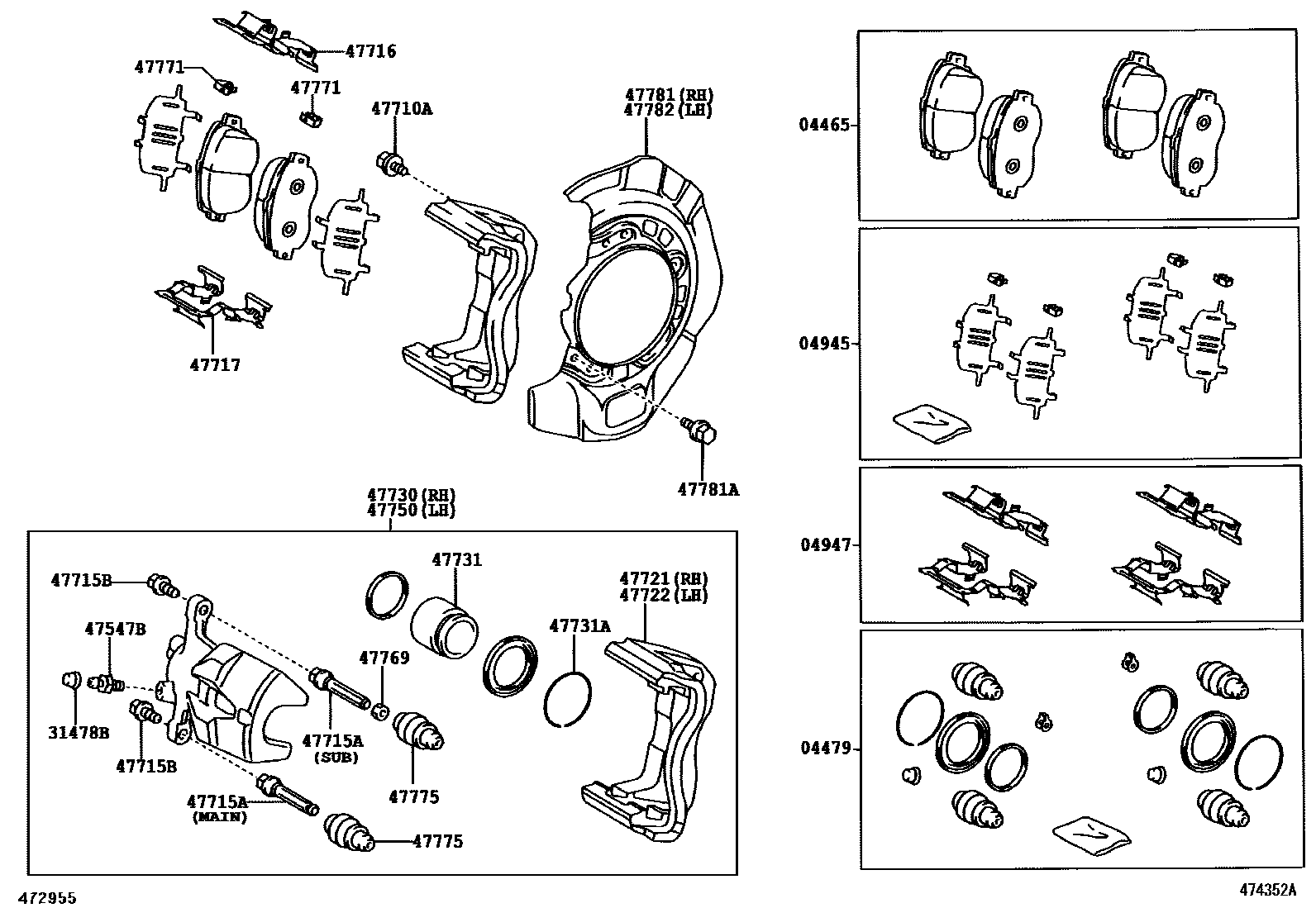

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-06100iGSX30200707-200908

MARK NBK PN562H

main04465-07010iGSX30200908-201003

MARK NBK D6911H

main04465-08030iGSX30200501-200707

MARK SELP PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06220iGSX30200707-201003

main04478-08081iGSX30200501-200602

main04478-08100iGSX30200602-200707

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06130iGSX30200707-200908

main04945-06150iGSX30200908-201003

main04945-58010iGSX30200501-200707

04947FITTING KIT, DISC BRAKE, FRONT

main04947-08040iGSX30200501-200707

main04947-33240iGSX30200707-201003

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGSX30200501-201003

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06040iGSX30200605-201210

main47547-20010iGSX30200501-200604

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iGSX30200501-201210

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-07071iGSX30201103

MAIN PIN SIDE

main47715-04080iGSX30200707-201103

MAIN PIN SIDE

main47715-06020iGSX30200501-200707

SUB PIN SIDE

main47715-06040iGSX30200501-200707

MAIN PIN SIDE

main47715-33340iGSX30200707-201003

SUB PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA103iGSX30200605-201003

main90080-10050iGSX30200501-200604

sub90016-AA103

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-08030iGSX30200501-200707

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-08030iGSX30200501-200707

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06220iGSX30200707-201103

main47721-07071iGSX30201103

main47721-08020iGSX30200501-200707

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-08020iGSX30200501-200707

main47722-06220iGSX30200707-201103

main47722-07071iGSX30201103

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06220iGSX30200707-201103

main47730-07071iGSX30201103

main47730-08030iGSX30200501-200707

47731PISTON, FRONT DISC BRAKE

main47731-06220iGSX30200707-201003

main47731-08020iGSX30200501-200707

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52108iGSX30200501-200707

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06220iGSX30200707-201103

main47750-07071iGSX30201103

main47750-08030iGSX30200501-200707

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGSX30200501-201210

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33020iGSX30200501-200707

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06030iGSX30200501-200707

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06110iGSX30200602-201108

main47781-06130iGSX30201108-201210

main47781-08020iGSX30200501-200601

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iGSX30200501-201210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06110iGSX30200602-201108

main47782-06130iGSX30201108-201210

main47782-08020iGSX30200501-200601
