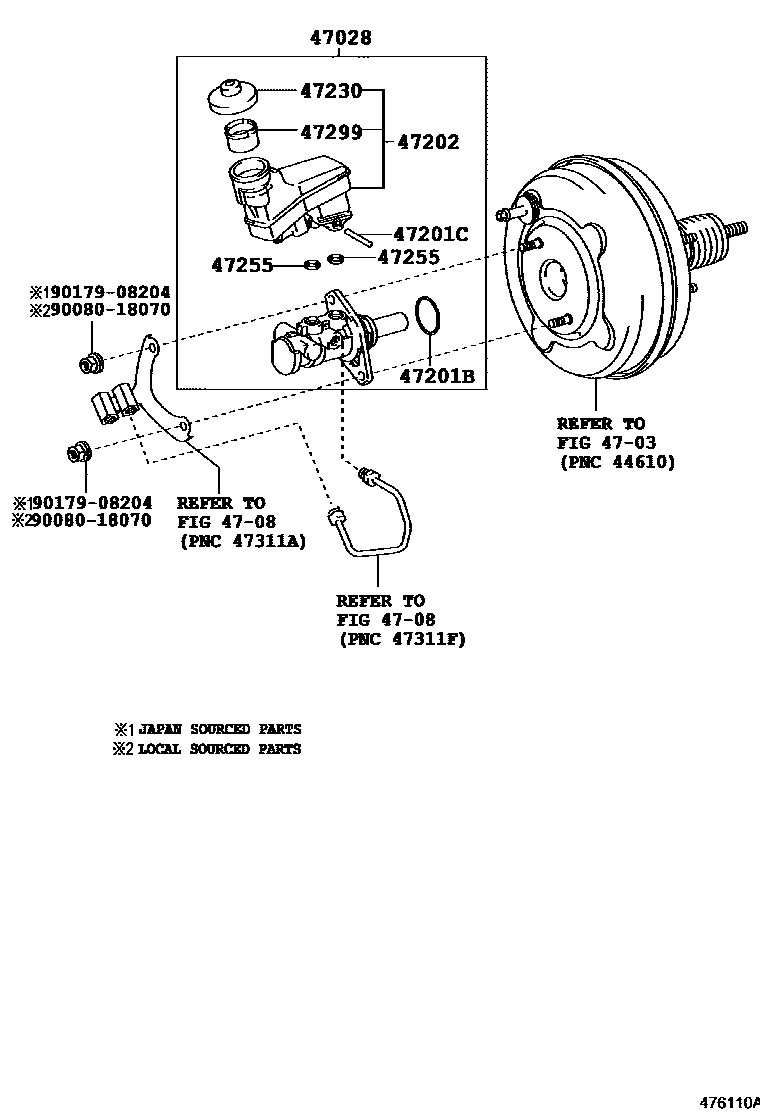

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-06030iGSX30200707-200710

sub47201-06420

main47028-07010iGSX30200501-200707

main47201-06420iGSX30200710-201206

sub47201-06422

main47201-06423iGSX30201206-201210

4703

4708

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSX30200707-201210

main90029-20059iGSX30200501-200707

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSX30200501-201210

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06230iGSX30200707-201003

main47220-07040iGSX30200501-200707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iGSX30200501-201003

sub47230-01031

main47230-12040iGSX30200707-200902

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSX30200501-201210

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSX30200501-200707

main47299-25010iGSX30200707-201003

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
