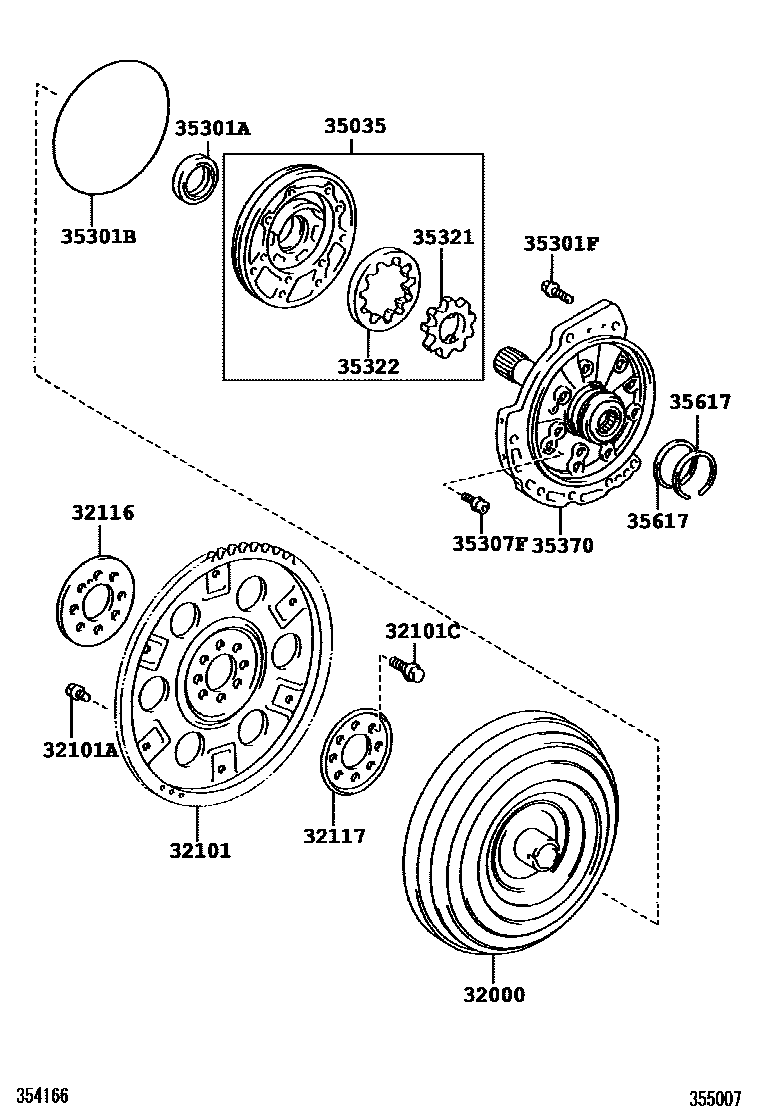

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,GREEN
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13,(J)
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
(L)
(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
(J)
(L)
35301BRING, O (FOR FRONT OIL PUMP BODY)
TRANSAXLE NO.=2XXXXX
TRANSAXLE NO.=2XXXXX
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
*8-1.25PX35-22,(L)
*8-1.25PX35-22,(J)
35307FBOLT (FOR STATOR SHAFT)
(J),NO.1
(J),NO.2
(L),NO.2
(L),NO.1
35321GEAR, FRONT OIL PUMP DRIVE
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
T=11.567,MARK 1,TRANSAXLE NO.=2XXXXX
T=11.567,MARK 2,TRANSAXLE NO.=2XXXXX
T=11.567,MARK 3,TRANSAXLE NO.=2XXXXX
T=11.567,MARK 4,TRANSAXLE NO.=2XXXXX
T=11.567,MARK 5,TRANSAXLE NO.=2XXXXX
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
T=11.567,MARK 1,(J)
T=11.567,MARK 2,(J)
T=11.567,MARK 3,(J)
T=11.567,MARK 4,(J)
T=11.567,MARK 5,(J)
35370SHAFT ASSY, STATOR
(L)
(J)
35617RING, CLUTCH DRUM OIL SEAL
