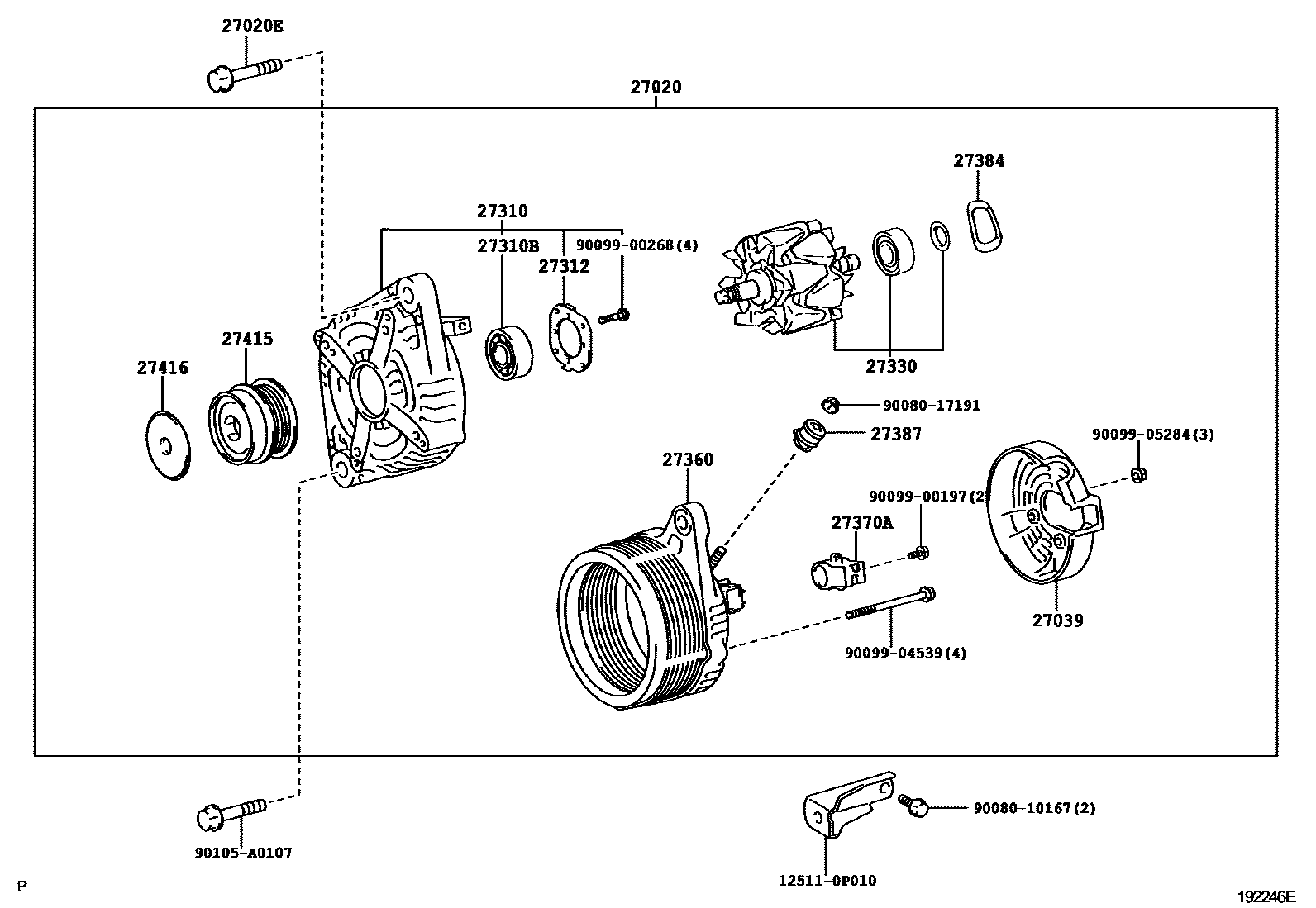

ALTERNATOR

27020ALTERNATOR ASSY

main27060-0P140i2GRFE..GSX30..XL200501-200707

12V 100A

main27060-0P141i2GRFE..GSX30..XL201005

12V 100A

main27060-0P150i2GRFE..GSX30..LIMD200707-200810

12V 130A

main27060-0P151i2GRFE..GSX30..LIMD201005

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-A0129i2GRFE..GSX30200602-200707

main91552-81070i2GRFE..GSX30200501-200601

27039COVER, ALTERNATOR REAR END

main27039-0A110i2GRFE..GSX30200501-200707

main27039-0T040i2GRFE..GSX30200906-201003

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P140i2GRFE..GSX30200501-200707

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2GRFE..GSX30201005

main90068-10142i2GRFE..GSX30200501-200705

27312PLATE, RETAINER

main27312-72100i2GRFE..GSX30200501-200707

27330ROTOR ASSY, ALTERNATOR

main27330-0A100i2GRFE..GSX30..LIMD200501-200707

sub27330-33090

main27330-0F060i2GRFE..GSX30..XL200707-201003

27360COIL ASSY, ALTERNATOR

main27360-0P140i2GRFE..GSX30..XL200501-200707

main27360-0P150i2GRFE..GSX30..LIMD200501-200707

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i2GRFE..GSX30200501-200707

27384WASHER

main27384-0A020i2GRFE..GSX30200501-200707

27387INSULATOR, TERMINAL

main27387-0F060i2GRFE..GSX30..XL200501-200611

main27387-0V060i2GRFE..GSX30201010

main27387-20130i2GRFE..GSX30..LIMD200501-200707

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W010i2GRFE..GSX30200501-200707

main27415-0W130i2GRFE..GSX30200811-201003

sub27415-0W131

27416CAP, ALTERNATOR PULLEY

main27416-0W010i2GRFE..GSX30200501-200707

main27416-0W050i2GRFE..GSX30200811-201003

125110P010BRACKET, ALTERNATOR, NO.1

main12511-0P010

9008010167

main90080-10167

9008017191

main90080-17191

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105A0107

main90105-A0107

21 parts on this diagram · 1 diagram in section
