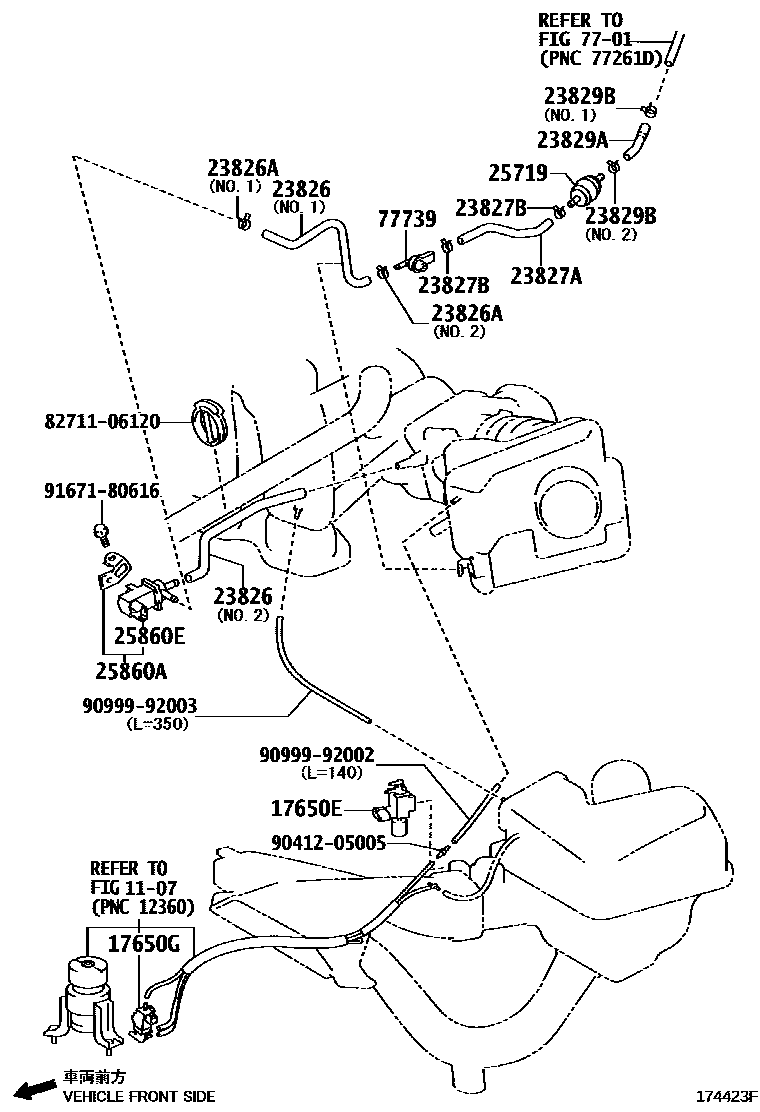

VACUUM PIPING
1107
17650EVALVE, VACUUM SWITCHING
17650GVALVE, DUTY VACUUM SWITCHING
23826HOSE, FUEL VAPOR FEED, NO.1
(L),NO.2
NO.2
(J),NO.2
NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.2
NO.1
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.2
NO.1
25719TANK, VACUUM SURGE
25860AVALVE, VACUUM SWITCHING, NO.1
25860EVALVE, VACUUM SWITCHING, NO.2
7701
77739VALVE, EVAP SERVICE PORT
8271106120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-06120
9041205005
main90412-05005
9099992002
main90999-92002
9099992003
main90999-92003
9167180616
main91671-80616
19 parts on this diagram · 4 diagrams in section
