HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL---MANUAL 0002 1CONTROL---AUTO 0003 1AIR DUCT 0004 1SENSOR

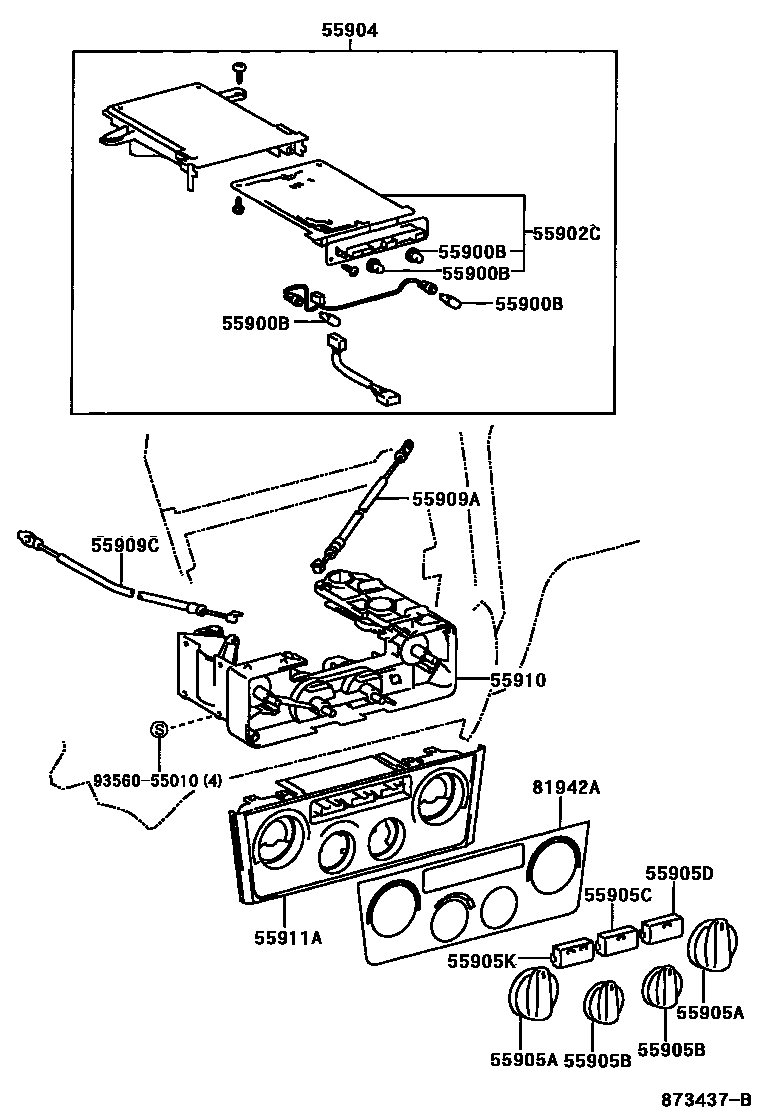

55900CONTROL ASSY, AIR CONDITIONER

main55900-07070iMCX20..XLS199908-200206

55900BBULB, AIR CONDITIONER CONTROL

main90010-03025×3iMCX20..XLS199908-200206

14V1.4W,W(GREEN CAP)

main90010-03026×7iMCX20..XLS200206

14V 1.12W,GREEN CAP

main90010-05117×2iMCX20..XL199908-200206

14V,1.54W

main90010-05132iMCX20..XL199910-200206

12V 1.4W

main90010-05133iMCX20..XL199910-200206

12V 2W

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-41030iMCX20..XL199908-199910

main55902-41031iMCX20..XL199910-200206

55904LEVER SUB-ASSY, AIR INLET BUTTERFLY CONTROL

main55904-41030iMCX20..XL199908-200206

55905AKNOB, HEATER CONTROL

main55905-12440-C0×2iMCX20..XL199908-200206

BLACK,TRIM0#,1#,4#

55905BKNOB, HEATER CONTROL, NO.2

main55905-41270-C0×2iMCX20..XL199908-200206

BLACK,TRIM0#,1#,4#

55905CKNOB, HEATER CONTROL, NO.3

main55905-41280-C0iMCX20..XL199908-200206

BLACK,TRIM0#,1#,4#

55905DKNOB SUB-ASSY, CONTROL

main55905-41290-C0iMCX20..XL200206-200501

BLACK,TRIM0#,1#,4#

55905KKNOB, HEATER CONTROL, NO.4

main55905-41300-C0iMCX20..XL199908-200206

BLACK,TRIM0#,1#,4#

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-41010iMCX20..XL199908-200206

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-41020iMCX20..XL199908-200206

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-41020iMCX20..XL199908-200206

55911ABASE, HEATER CONTROL

main55911-41010iMCX20..XL199908-200206

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-41010-C0iMCX20..XL199908-200206

BLACK,TRIM0#,1#,4#

9356055010

main93560-55010
