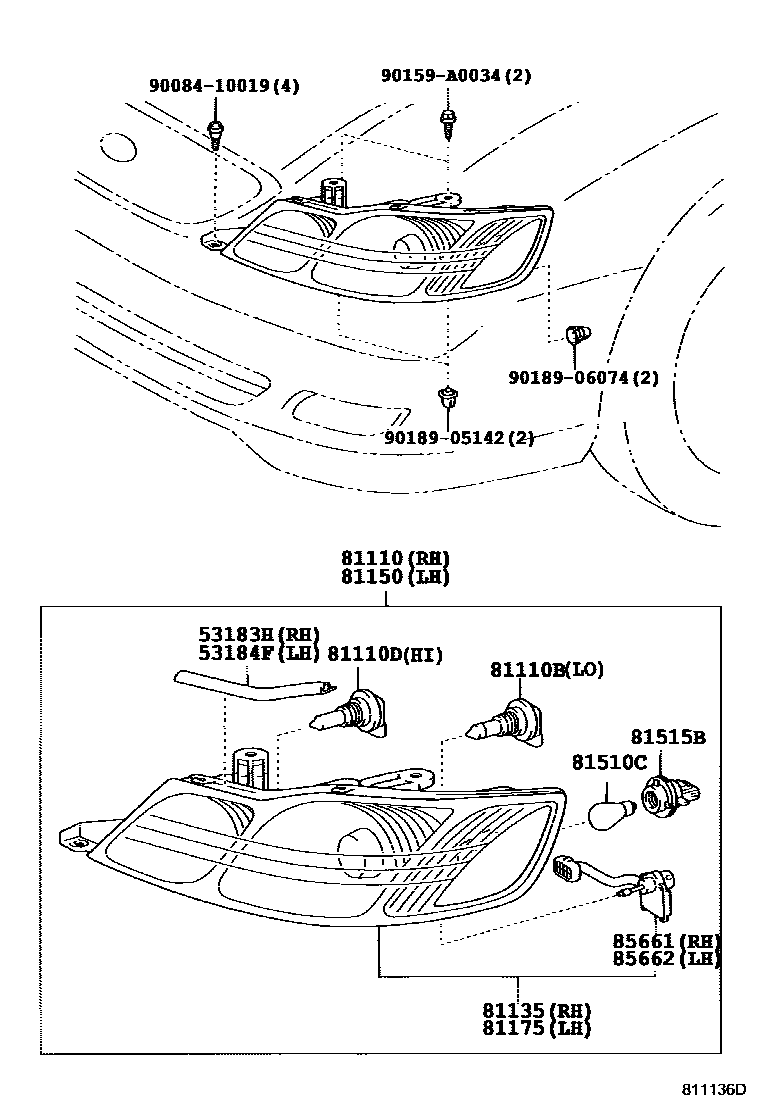

HEADLAMP

53183HSEAL, HEADLAMP COVER, RH

main53183-AC020iMCX20200206

53184FSEAL, HEADLAMP COVER, LH

main53184-AC020iMCX20200107-200206

81110HEADLAMP ASSY, RH

main81110-07070iMCX20200308-200501

main81110-AC040iMCX20199908-200107

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iMCX20199908-200107

12V 51W

main90981-13047×2iMCX20200206

12V 51W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCX20199908-200107

12V 65W

sub90981-13046

81135UNIT ASSY, HEADLAMP, RH

main81130-07070iMCX20200308-200501

main81130-AC040iMCX20200206-200308

81150HEADLAMP ASSY, LH

main81150-07070iMCX20200308-200501

main81150-AC040iMCX20199908-200107

81175UNIT ASSY, HEADLAMP, LH

main81170-07070iMCX20200308-200501

main81170-AC040iMCX20200107-200206

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90084-98048×2iMCX20199908-200107

12V 27/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99106×2iMCX20199908-200107

85661MOTOR, HEADLAMP LEVELING, RH

main85661-41020iMCX20200308-200501

85662MOTOR, HEADLAMP LEVELING, LH

main85661-41020iMCX20200308-200501

9008410019

main90084-10019

90159A0034

main90159-A0034

9018905142

main90189-05142

9018906074

main90189-06074

16 parts on this diagram · 1 diagram in section
