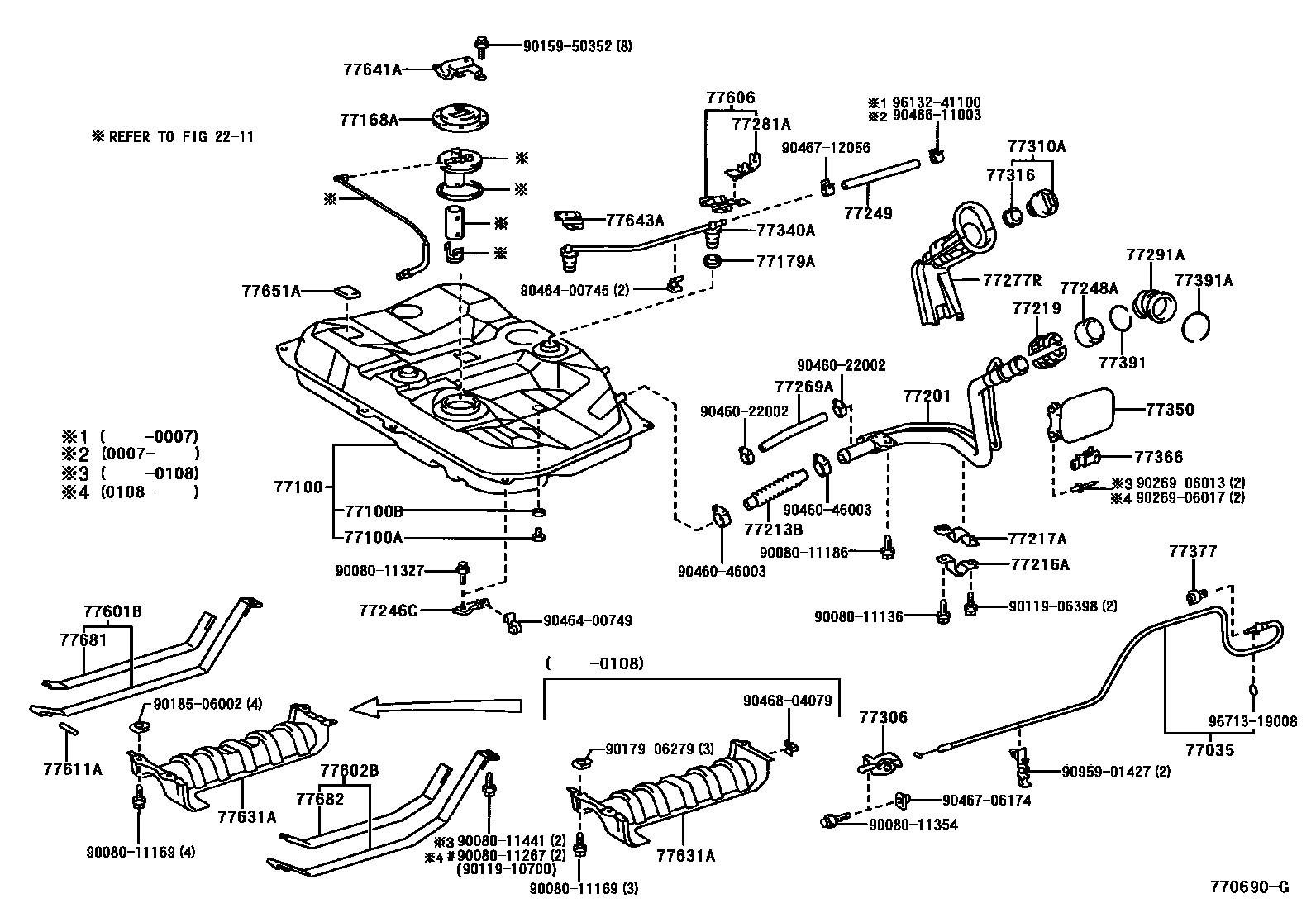

FUEL TANK & TUBE
2211
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77213BHOSE, FUEL TANK TO FILLER PIPE
L=182
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77249HOSE, FUEL EMISSION
sub95337-06030
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
(J)
(L)
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
sub77643-33030
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
9008011136
main90080-11136
9008011169
main90080-11169
9008011186
main90080-11186
9008011267
main90080-11267
9008011327
main90080-11327
9008011354
main90080-11354
9008011441
main90080-11441
9011906398
main90119-06398
9011910700
main90119-10700
9015950352
main90159-50352
9017906279
main90179-06279
9018506002
main90185-06002
9026906013
main90269-06013
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
9046400749
main90464-00749
9046611003
main90466-11003
9046706174
main90467-06174
9046712056
main90467-12056
9046804079
main90468-04079
9095901427
main90959-01427
9613241100
main96132-41100
9671319008
main96713-19008
63 parts on this diagram · 3 diagrams in section
