EPC Data

REAR SEAT & SEAT TRACK

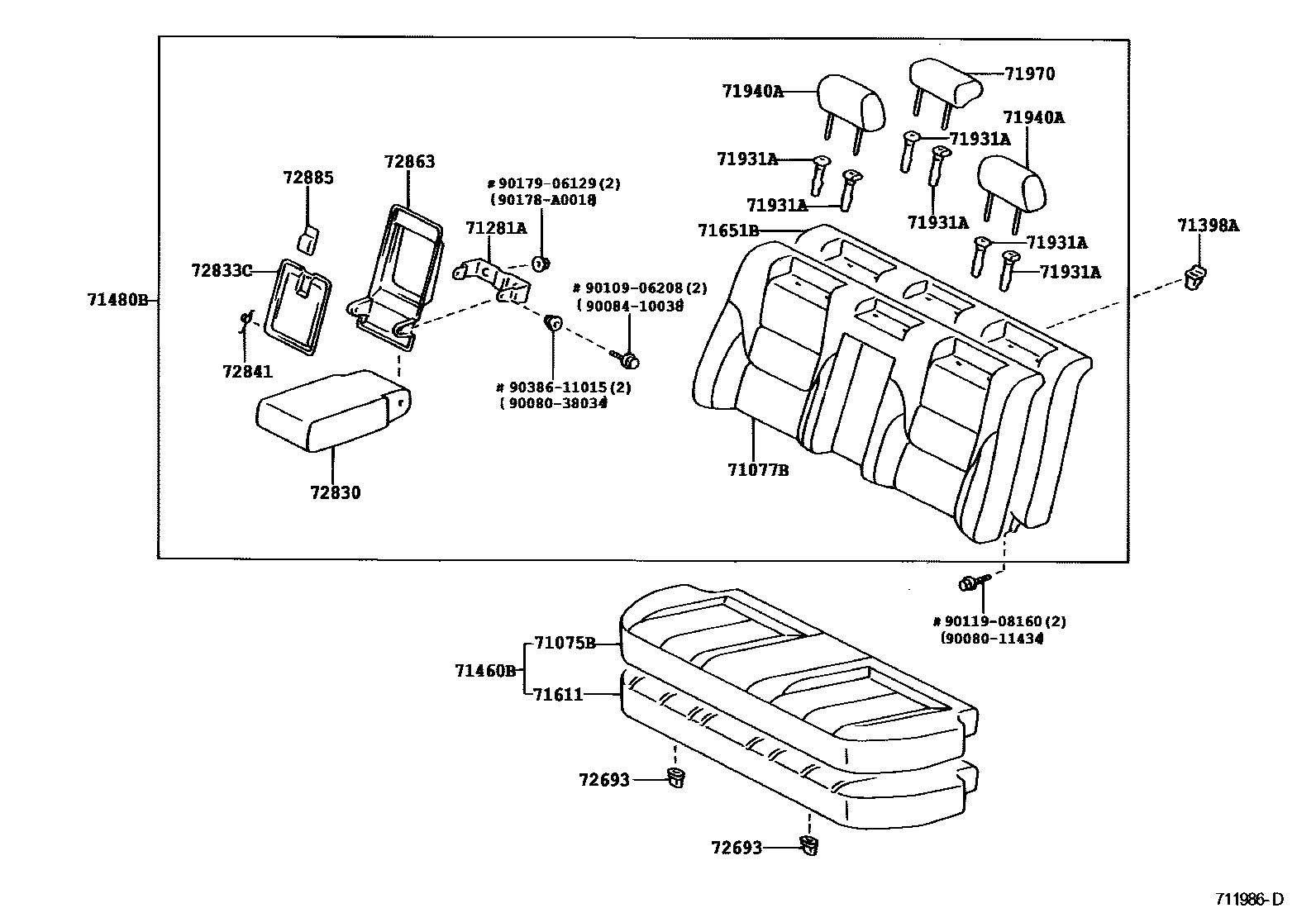

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-AC050-A1i199908-200206
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-AC050-B1i199908-200206
SEAT = TYPE C-*104,STONE,TRIM1#
main71075-AC050-E1i199908-200206
SEAT = TYPE C-*104,FAWN,TRIM4#
main71075-AC051-A3i200206-200501
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-AC051-B3i200206-200501
SEAT = TYPE C-*104,STONE,TRIM1#
main71075-AC051-E3i200206-200501
SEAT = TYPE C-*104,FAWN,TRIM4#
main71075-AC060-A1i199908-200206
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-AC060-B1i199908-200206
SEAT = TYPE A-*104,STONE,TRIM1#
main71075-AC060-E1i199908-200206
SEAT = TYPE A-*104,FAWN,TRIM4#
main71075-AC061-A3i200206-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-AC061-B3i200206-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71075-AC061-E3i200206-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71075-AC070-A3i199908-200206
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-AC070-B1i199908-200206
SEAT = TYPE B-*104,STONE,TRIM1#
main71075-AC070-E1i199908-200206
SEAT = TYPE B-*104,FAWN,TRIM4#
main71075-AC071-A5i200206-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-AC071-B4i200206-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71075-AC071-E4i200206-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-AC070-A1i199908-200206
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-AC070-B1i199908-200206
SEAT = TYPE C-*104,STONE,TRIM1#
main71077-AC070-E1i199908-200206
SEAT = TYPE C-*104,FAWN,TRIM4#
main71077-AC080-A1i199908-200206
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-AC080-B1i199908-200206
SEAT = TYPE A-*104,STONE,TRIM1#
main71077-AC080-E1i199908-200206
SEAT = TYPE A-*104,FAWN,TRIM4#
main71077-AC090-A3i199908-200206
SEAT = TYPE B-*104,IVORY,TRIM0#
main71077-AC090-B1i199908-200206
SEAT = TYPE B-*104,STONE,TRIM1#
main71077-AC090-E1i199908-200206
SEAT = TYPE B-*104,FAWN,TRIM4#
main71077-AC120-A0i200206-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-AC120-B0i200206-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71077-AC120-E0i200206-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71077-AC130-A0i200206-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-AC130-B0i200206-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71077-AC130-E0i200206-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71077-AC140-A0i200206-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71077-AC140-B0i200206-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71077-AC140-E0i200206-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-AC020i199908-200501
71398AHOLDER, REAR SEATBACK
main71398-AC010i199908-200206
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-AC050-A0i199908-200206
SEAT = TYPE C-*104,IVORY,TRIM0#
main71460-AC050-B0i199908-200206
SEAT = TYPE C-*104,STONE,TRIM1#
main71460-AC050-E0i199908-200206
SEAT = TYPE C-*104,FAWN,TRIM4#
main71460-AC051-A2i200206-200501
SEAT = TYPE C-*104,IVORY,TRIM0#
main71460-AC051-B2i200206-200501
SEAT = TYPE C-*104,STONE,TRIM1#
main71460-AC051-E2i200206-200501
SEAT = TYPE C-*104,FAWN,TRIM4#
main71460-AC060-A0i199908-200206
SEAT = TYPE A-*104,IVORY,TRIM0#
main71460-AC060-B0i199908-200206
SEAT = TYPE A-*104,STONE,TRIM1#
main71460-AC060-E0i199908-200206
SEAT = TYPE A-*104,FAWN,TRIM4#
main71460-AC061-A2i200206-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71460-AC061-B2i200206-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71460-AC061-E2i200206-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71460-AC070-A0i199908-200206
SEAT = TYPE B-*104,IVORY,TRIM0#
main71460-AC070-B0i199908-200206
SEAT = TYPE B-*104,STONE,TRIM1#
main71460-AC070-E0i199908-200206
SEAT = TYPE B-*104,FAWN,TRIM4#
main71460-AC071-A5i200206-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71460-AC071-B4i200206-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71460-AC071-E4i200206-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-AC070-A0i199908-200008
SEAT = TYPE B-*104,IVORY,TRIM0#
main71480-AC070-B0i199908-200008
SEAT = TYPE B-*104,STONE,TRIM1#
main71480-AC070-E0i199908-200008
SEAT = TYPE B-*104,FAWN,TRIM4#
main71480-AC080-A0i199908-200008
SEAT = TYPE A-*104,IVORY,TRIM0#
main71480-AC080-B0i199908-200008
SEAT = TYPE A-*104,STONE,TRIM1#
main71480-AC080-E0i199908-200008
SEAT = TYPE A-*104,FAWN,TRIM4#
main71480-AC090-A0i199908-200008
SEAT = TYPE B-*104,IVORY,TRIM0#
main71480-AC090-B0i199908-200008
SEAT = TYPE B-*104,STONE,TRIM1#
main71480-AC090-E0i199908-200008
SEAT = TYPE B-*104,FAWN,TRIM4#
main71480-AC130-A1i200008-200206
SEAT = TYPE C-*104,IVORY,TRIM0#
main71480-AC130-B1i200008-200206
SEAT = TYPE C-*104,STONE,TRIM1#
main71480-AC130-E1i200008-200206
SEAT = TYPE C-*104,FAWN,TRIM4#
main71480-AC131-A1i200206-200501
SEAT = TYPE C-*104,IVORY,TRIM0#
main71480-AC131-B1i200206-200501
SEAT = TYPE C-*104,STONE,TRIM1#
main71480-AC131-E1i200206-200501
SEAT = TYPE C-*104,FAWN,TRIM4#
main71480-AC140-A1i200008-200206
SEAT = TYPE A-*104,IVORY,TRIM0#
main71480-AC140-B1i200008-200206
SEAT = TYPE A-*104,STONE,TRIM1#
main71480-AC140-E1i200008-200206
SEAT = TYPE A-*104,FAWN,TRIM4#
main71480-AC141-A1i200206-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71480-AC141-B1i200206-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71480-AC141-E1i200206-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71480-AC150-A1i200008-200206
SEAT = TYPE B-*104,IVORY,TRIM0#
main71480-AC150-B1i200008-200206
SEAT = TYPE B-*104,STONE,TRIM1#
main71480-AC150-E1i200008-200206
SEAT = TYPE B-*104,FAWN,TRIM4#
main71480-AC151-A3i200206-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71480-AC151-B3i200206-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71480-AC151-E3i200206-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
71611PAD, REAR SEAT CUSHION
main71503-AC020i199908-200206
W(LEATHER SEAT)
main71503-AC021i200206-200501
W(LEATHER SEAT)
main71503-AC030i199908-200206
main71503-AC031i200206-200501
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-AC030i199908-200206
main71507-AC031i200206-200408
sub71507-AC032
main71507-AC032i200408-200501
main71507-AC040i199908-200206
W(LEATHER SEAT)
main71507-AC041i200206-200408
W(LEATHER SEAT)
sub71507-AC042
main71507-AC042i200408-200501
W(LEATHER SEAT)
71931ASUPPORT, REAR SEAT HEADREST
main71930-02030-A0i199908-200501
W(LOCK),IVORY,TRIM0#
main71930-02030-B4i199908-200501
W(LOCK),STONE,TRIM1#
main71930-02030-E3i199908-200501
W(LOCK),FAWN,TRIM4#
main71931-02010-A0i199908-200501
W/O(LOCK),IVORY,TRIM0#
sub71931-02010
sub71931-10020
main71931-02010-L0i199908-200501
W/O(LOCK),FAWN,TRIM4#
sub71931-02010
sub71931-10020
main71931-02010-P1i199908-200501
W/O(LOCK),STONE,TRIM1#
sub71931-02010
sub71931-10020
71940AHEADREST ASSY, REAR SEAT
main71940-AC030-A0i199908-200501
SEAT = TYPE C-*104,IVORY,TRIM0#
main71940-AC030-B0i199908-200501
SEAT = TYPE C-*104,STONE,TRIM1#
main71940-AC030-E0i199908-200501
SEAT = TYPE C-*104,FAWN,TRIM4#
main71940-AC040-A0i199908-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-AC040-B0i199908-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71940-AC040-E0i199908-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71940-AC050-A0i199908-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71940-AC050-B0i199908-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71940-AC050-E0i199908-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
71970HEADREST ASSY, REAR SEAT
main71940-AC060-A0i199908-200501
SEAT = TYPE C-*104,IVORY,TRIM0#
main71940-AC060-B0i199908-200501
SEAT = TYPE C-*104,STONE,TRIM1#
main71940-AC060-E0i199908-200501
SEAT = TYPE C-*104,FAWN,TRIM4#
main71940-AC070-A0i199908-200501
SEAT = TYPE A-*104,IVORY,TRIM0#
main71940-AC070-B0i199908-200501
SEAT = TYPE A-*104,STONE,TRIM1#
main71940-AC070-E0i199908-200501
SEAT = TYPE A-*104,FAWN,TRIM4#
main71940-AC080-A0i199908-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main71940-AC080-B0i199908-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main71940-AC080-E0i199908-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-20060i199908-200501
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-AC050-A0i199908-200008
SEAT = TYPE A-*104,IVORY,TRIM0#
sub72830-AC051
main72830-AC050-B0i199908-200008
SEAT = TYPE A-*104,STONE,TRIM1#
sub72830-AC051
main72830-AC050-E0i199908-200008
SEAT = TYPE A-*104,FAWN,TRIM4#
sub72830-AC051
main72830-AC051-A0i200206-200501
IVORY,TRIM0#
main72830-AC051-A0i200008-200206
SEAT = TYPE A-*104,IVORY,TRIM0#
main72830-AC051-B0i200206-200501
STONE,TRIM1#
main72830-AC051-B0i200008-200206
SEAT = TYPE A-*104,STONE,TRIM1#
main72830-AC051-E0i200008-200206
SEAT = TYPE A-*104,FAWN,TRIM4#
main72830-AC051-E0i200206-200501
FAWN,TRIM4#
main72830-AC060-A1i199908-200008
SEAT = TYPE B-*104,IVORY,TRIM0#
sub72830-AC061
main72830-AC060-B1i199908-200008
SEAT = TYPE B-*104,STONE,TRIM1#
sub72830-AC061
main72830-AC060-E1i199908-200008
SEAT = TYPE B-*104,FAWN,TRIM4#
sub72830-AC061
main72830-AC061-A1i200008-200206
SEAT = TYPE B-*104,IVORY,TRIM0#
main72830-AC061-B1i200008-200206
SEAT = TYPE B-*104,STONE,TRIM1#
main72830-AC061-E1i200008-200206
SEAT = TYPE B-*104,FAWN,TRIM4#
main72830-AC062-A3i200206-200501
SEAT = TYPE B-*104,IVORY,TRIM0#
main72830-AC062-B3i200206-200501
SEAT = TYPE B-*104,STONE,TRIM1#
main72830-AC062-E3i200206-200501
SEAT = TYPE B-*104,FAWN,TRIM4#
main72830-AC070-A0i199908-200008
SEAT = TYPE C-*104,IVORY,TRIM0#
sub72830-AC071
main72830-AC070-B0i199908-200008
SEAT = TYPE C-*104,STONE,TRIM1#
sub72830-AC071
main72830-AC070-E0i199908-200008
SEAT = TYPE C-*104,FAWN,TRIM4#
sub72830-AC071
main72830-AC071-A0i200206-200501
IVORY,TRIM0#
main72830-AC071-A0i200008-200206
SEAT = TYPE C-*104,IVORY,TRIM0#
main72830-AC071-B0i200008-200206
SEAT = TYPE C-*104,STONE,TRIM1#
main72830-AC071-B0i200206-200501
STONE,TRIM1#
main72830-AC071-E0i200206-200501
FAWN,TRIM4#
main72830-AC071-E0i200008-200206
SEAT = TYPE C-*104,FAWN,TRIM4#
72833CPANEL, REAR SEAT CENTER ARMREST, NO.1
main72833-AC010-A0i199908-200501
IVORY,TRIM0#
main72833-AC010-B0i199908-200501
STONE,TRIM1#
main72833-AC010-E0i199908-200501
FAWN,TRIM4#
72841SPRING, REAR SEAT CENTER ARMREST, NO.1
main72841-07010i199908-200501
72863BOX, REAR SEAT CENTER ARMREST
main72863-AC010-A0i199908-200112
IVORY,TRIM0#
sub72863-AC011
main72863-AC010-B0i199908-200112
STONE,TRIM1#
sub72863-AC011
main72863-AC010-E0i199908-200112
FAWN,TRIM4#
sub72863-AC011
main72863-AC011-A0i200112-200501
IVORY,TRIM0#
main72863-AC011-B0i200112-200501
STONE,TRIM1#
main72863-AC011-E0i200112-200501
FAWN,TRIM4#
72885HANDLE, REAR SEAT ARMREST
main72885-33010-A1i199908-200501
IVORY,TRIM0#
main72885-33010-B0i199908-200501
STONE,TRIM1#
main72885-33010-E1i199908-200501
FAWN,TRIM4#
9008011434
main90080-11434
9008038034
main90080-38034
9008410038
main90084-10038
9010906208
main90109-06208
9011908160
main90119-08160
90178A0018
main90178-A0018
9017906129
main90179-06129
9038611015
main90386-11015

25 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
