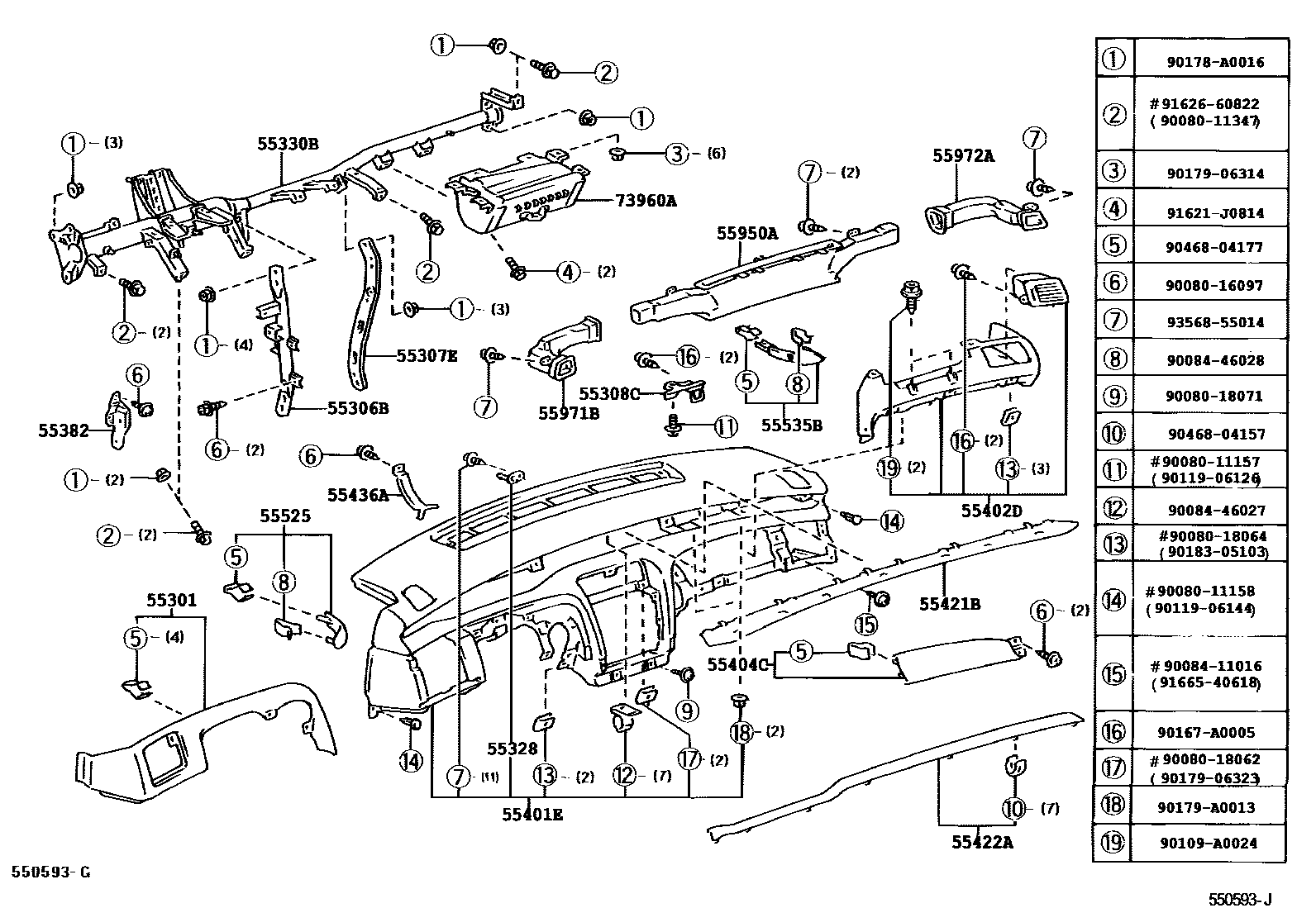

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-AC010-A0iMCX20199908-200206

IVORY,TRIM0#

main55301-AC010-B0iMCX20200206-200501

STONE,TRIM1#

main55301-AC010-E0iMCX20200206-200501

FAWN,TRIM4#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-07010iMCX20200206

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-07010iMCX20199908-200206

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-AC010iMCX20199908-200206

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50010×3iMCX20199908-200206

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-07010iMCX20199908-200107

main55330-07011iMCX20200107-200112

main55330-07012iMCX20200112-200206

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-07010iMCX20200206

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-AC010-B0iMCX20199908-200206

DK.STONE,TRIM1#

sub55401-AC020

main55401-AC010-E0iMCX20199908-200206

SANDAL WOOD,TRIM0#,4#

sub55401-AC020

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-AC010-A0iMCX20200206-200501

IVORY,TRIM0#

main55402-AC010-B0iMCX20199908-200206

STONE,TRIM1#

main55402-AC010-E0iMCX20199908-200206

FAWN,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-AC050iMCX20199908-200206

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-AC010iMCX20199908-200206

55422APANEL, INSTRUMENT CLUSTER FINISH, LOWER

main55422-AC010iMCX20199908-200206

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-AC010iMCX20199908-200005

main55436-AC011iMCX20200005-200206

55525COVER, SPEAKER HOLE, NO.1

main55510-AC010iMCX20199908-200007

main55510-AC011iMCX20200007-200206

55535BCOVER, SPEAKER HOLE, NO.2

main55530-AC010iMCX20199908-200007

main55530-AC011iMCX20200206-200501

55950ANOZZLE ASSY, DEFROSTER

main55950-AC040iMCX20200206

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-AC030iMCX20199908-200206

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-AC030iMCX20199908-200206

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07030iMCX20199908-200206

main73960-07050iMCX20200206

9008011157

main90080-11157

9008011158

main90080-11158

9008011347

main90080-11347

9008016097

main90080-16097

9008018062

main90080-18062

9008018064

main90080-18064

9008018071

main90080-18071

9008411016

main90084-11016

9008446027

main90084-46027

9008446028

main90084-46028

90109A0024

main90109-A0024

9011906126

main90119-06126

9011906144

main90119-06144

90167A0005

main90167-A0005

90178A0016

main90178-A0016

9017906314

main90179-06314

9017906323

main90179-06323

90179A0013

main90179-A0013

9018305103

main90183-05103

9046804157

main90468-04157

9046804177

main90468-04177

91621J0814

main91621-J0814

9162660822

main91626-60822

9166540618

main91665-40618

9356855014

main93568-55014

44 parts on this diagram · 2 diagrams in section
