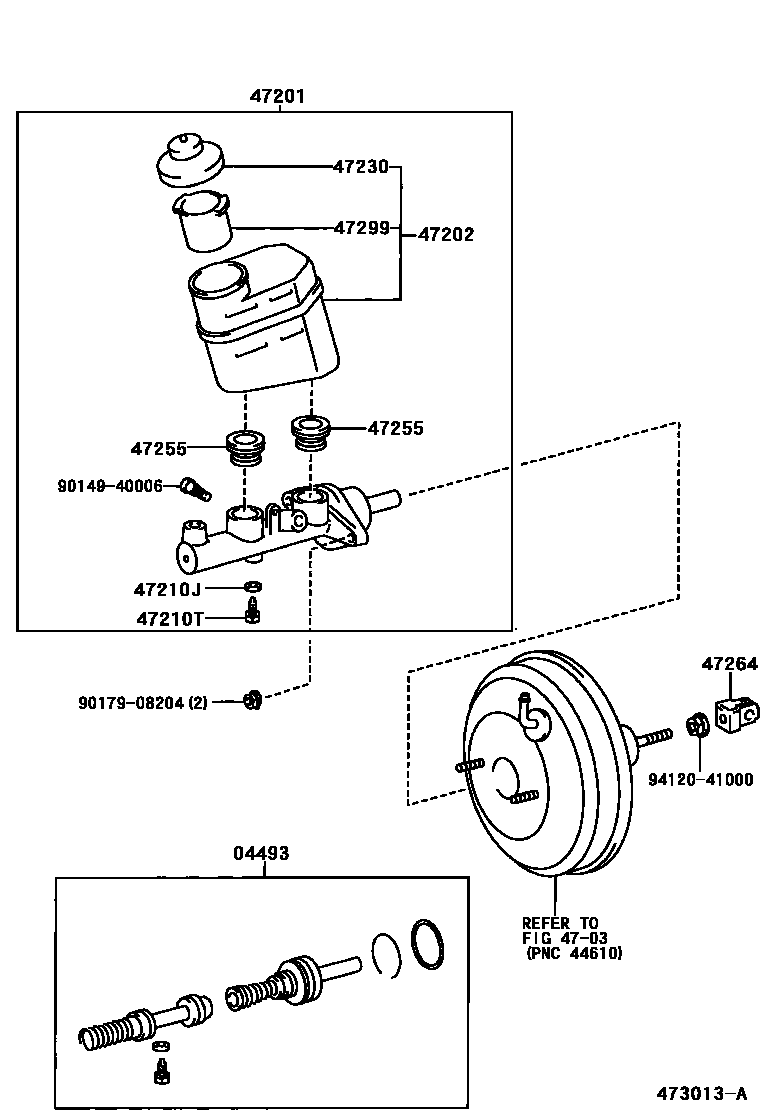

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-07030iMCX20199908-200206

main04493-07031iMCX20200008-200107

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07031iMCX20199908-200206

main47201-07032iMCX20200008-200107

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-07010iMCX20199908-200206

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCX20199908-200206

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCX20199908-200206

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33050iMCX20199908-200206

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iMCX20199908-200206

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMCX20200101-200206

main47264-32020iMCX20199908-200101

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCX20199908-200206

9014940006

main90149-40006

9017908204

main90179-08204

9412041000

main94120-41000

13 parts on this diagram · 1 diagram in section
